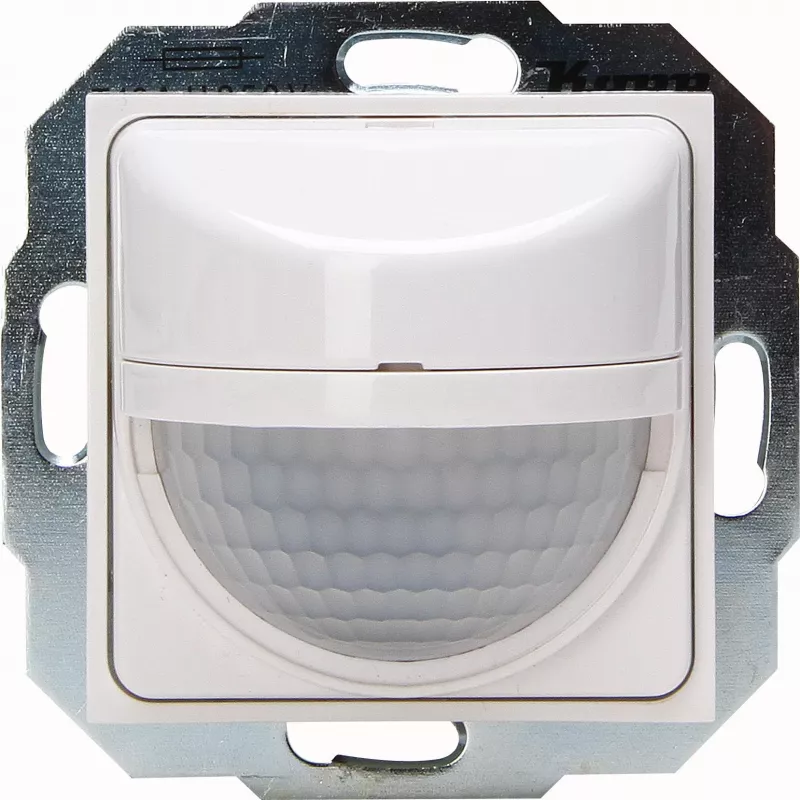

Heinrich Kopp 840429052 infraroodsensor 9 m IP40 20-1800 s 2 m 180°

The Heinrich Kopp 840429052 is a high-quality infrared motion sensor designed for reliable indoor presence detection. With a detection range of up to 9 meters and a wide 180° angle, it is ideal for automatic lighting control in hallways, staircases, offices, and storage rooms. The sensor features adjustable time settings from 20 seconds to 30 minutes and light sensitivity from 3 to 2000 lux, allowing flexible adaptation to various environments.

Advantages

Energy-efficient automatic lighting control reduces electricity costs. Easy surface mounting and 3-wire connection simplify installation. The IP40 rating protects against solid objects larger than 1 mm, ensuring durability in indoor settings. Standby power consumption below 0.5 W contributes to low energy usage.

Suitable for

• Indoor areas such as corridors, stairwells, and entrance zones
• Offices, meeting rooms, and storage spaces
• Automatic lighting control in residential and commercial buildings

Key specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 180°
• Detection range: 9 m (at 2.5 m mounting height)
• Mounting type: Surface-mounted
• IP rating: IP40
• Time setting range: 20 s – 30 min
• Light sensitivity: 3 – 2000 lux
• Max switching capacity (incandescent): 1000 W
• Max switching capacity (LED): 300 W
• Operating voltage: 230 V AC, 50 Hz
• Recommended mounting height: 2.0 – 2.5 m
• Colour: White
• Material: Plastic
• Connection type: 3-wire
• Standby power consumption: < 0.5 W
• Operating temperature: -20°C to +40°C

Recommendations

For optimal performance, mount the sensor at the recommended height of 2.0–2.5 m and avoid placing it near heat sources or air conditioning vents. Use with compatible LED or incandescent loads up to the specified maximum ratings.
