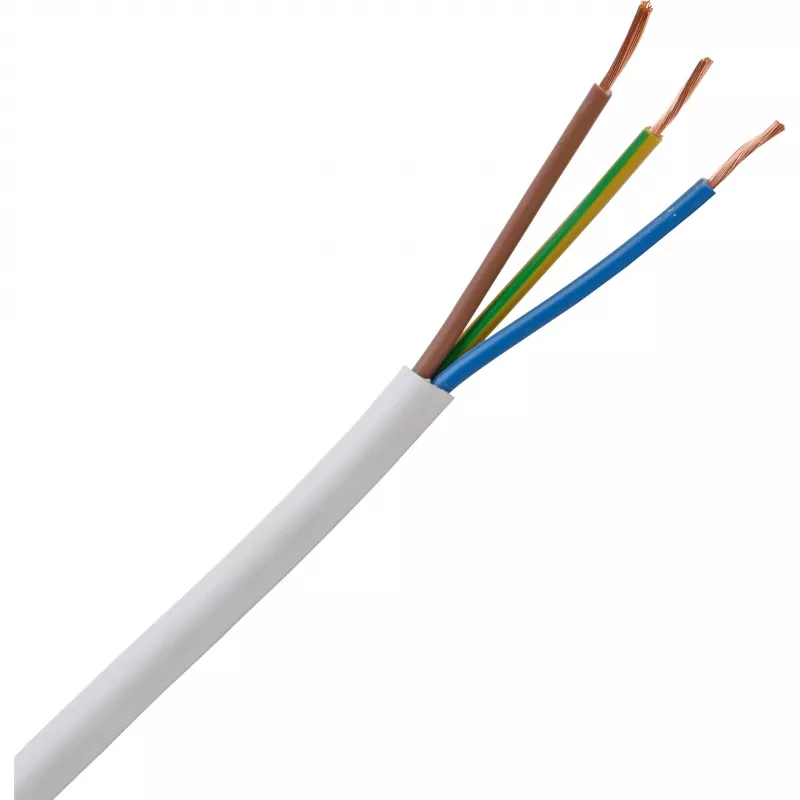

HEINRICH KOPP H05VV5-F 3G1,5mm² witte flexibele PVC-kabel 5m 151805840

This 5-metre H05VV5-F cable features 3 cores of 1.5 mm² flexible copper and a white PVC sheath, rated for 300/500 V in dry, damp, or wet environments.

Overview

The HEINRICH KOPP 151805840 is a harmonized flexible cable designed for medium mechanical stress in household and industrial applications. Its V5 compound provides enhanced oil resistance, and the cable is flame retardant according to EN 60332-1-2.

What stands out

• 3-core with green/yellow earth conductor
• Flexible stranded copper (Class 5)
• Oil-resistant special PVC sheath
• Flame retardant
• Suitable for wet rooms

Technical details

• Cable type: H05VV5-F
• Number of cores: 3
• Conductor cross-section: 1.5 mm²
• Rated voltage: 300/500 V
• Insulation: PVC
• Sheath: Special PVC, white
• Length: 5 m
• Conductor material: Copper
• Conductor class: Class 5 (flexible stranded)
• Oil resistance: Enhanced (V5 compound)
• Flame retardant: Yes (EN 60332-1-2)
• Operating temperature (flexible use): -5°C to +70°C
• Operating temperature (fixed installation): -30°C to +70°C
• Max. conductor temperature: +70°C
• Halogen-free: No
• Application environment: Dry, damp, and wet rooms
• Mechanical stress level: Medium
• Standard: Harmonized (e.g., EN 50525-2-51)

Our verdict

A reliable flexible cable for demanding environments, offering oil resistance and flame retardancy in a versatile 5-metre length.
