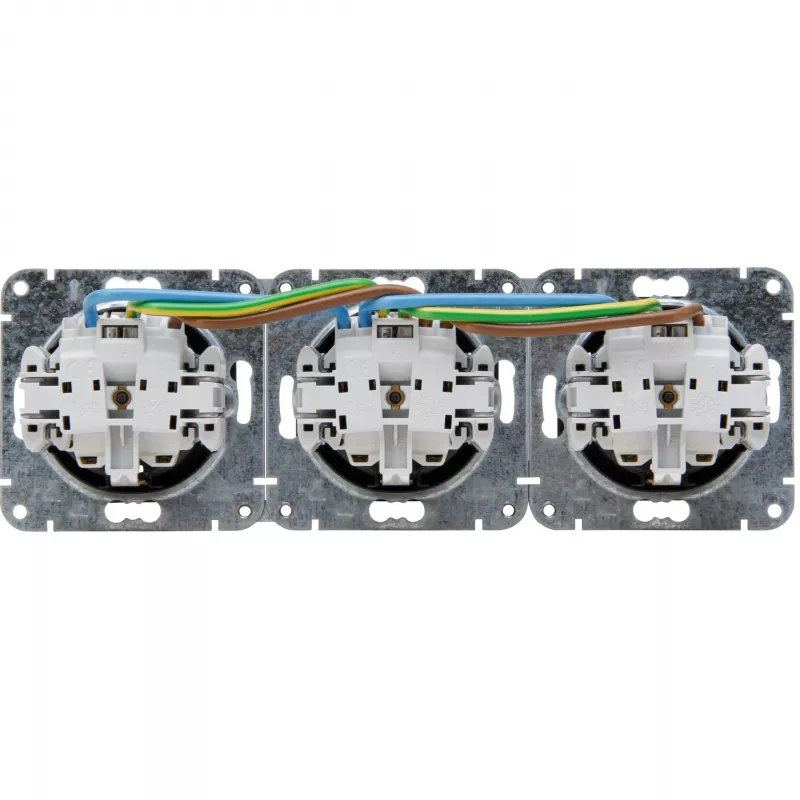

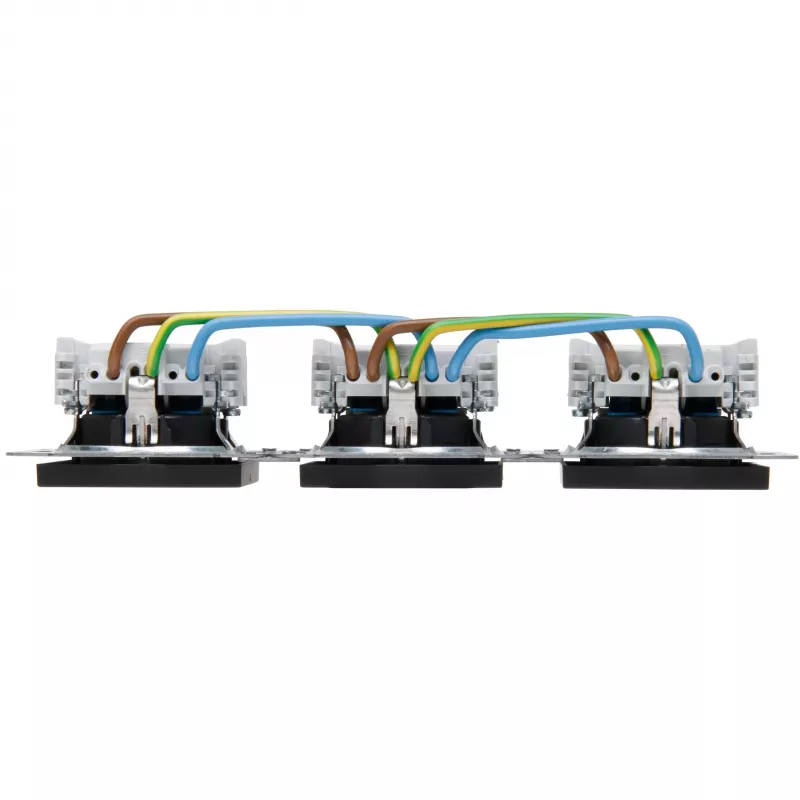

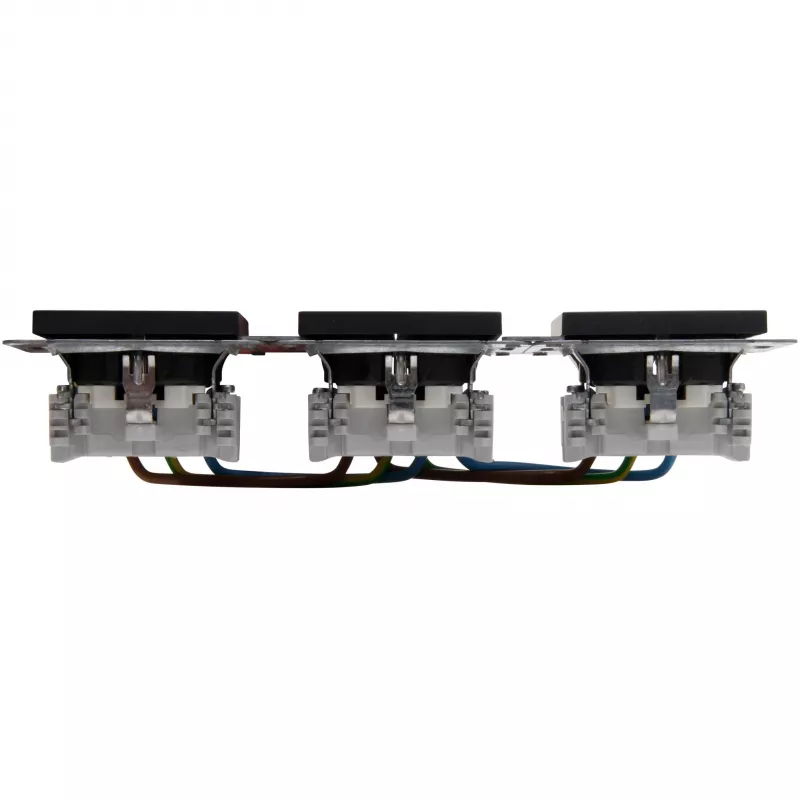

HEINRICH KOPP HK07 KombiQuick 3-voudig horizontale Schuko-stopcontact inzet antraciet 133315008

Flush-mounted installations often suffer from fiddly wiring and bulky sockets that don't fit standard boxes. The KOPP HK07 KombiQuick 3-gang socket insert solves this with quick-connect terminals and a compact horizontal design, making it ideal for kitchens, workshops, or any area needing multiple power points in one location.

Who is it for

Electricians and DIYers installing or upgrading flush-mounted sockets in residential or commercial settings. The anthracite colour suits modern interiors, and the 3-gang layout reduces the need for multiple wall boxes.

Main features

• 3 Schuko sockets in horizontal orientation
• Quick-connect terminals for fast, tool-free wiring
• Increased touch protection (child safety)
• Flush-mounted design fits standard boxes
• Anthracite thermoplastic construction

Specifications

• Type: Socket insert
• Number of sockets: 3
• Socket standard: Schuko (Type F)
• Orientation: Horizontal
• Colour: Anthracite
• Mounting method: Flush-mounted
• Connection technology: Quick-connect terminals
• Rated voltage: 250 V AC
• Rated current: 16 A
• Material: Thermoplastic
• IP protection rating: IP20
• Child protection: Yes (increased touch protection)
• Series: Kopp HK07 KombiQuick
• Frequency: 50/60 Hz
• Suitable for: Standard flush-mount boxes
• Installation depth: 38 mm

Tips

Ensure the flush-mount box is deep enough for the 38 mm installation depth. For safety, always switch off the power before installation.
