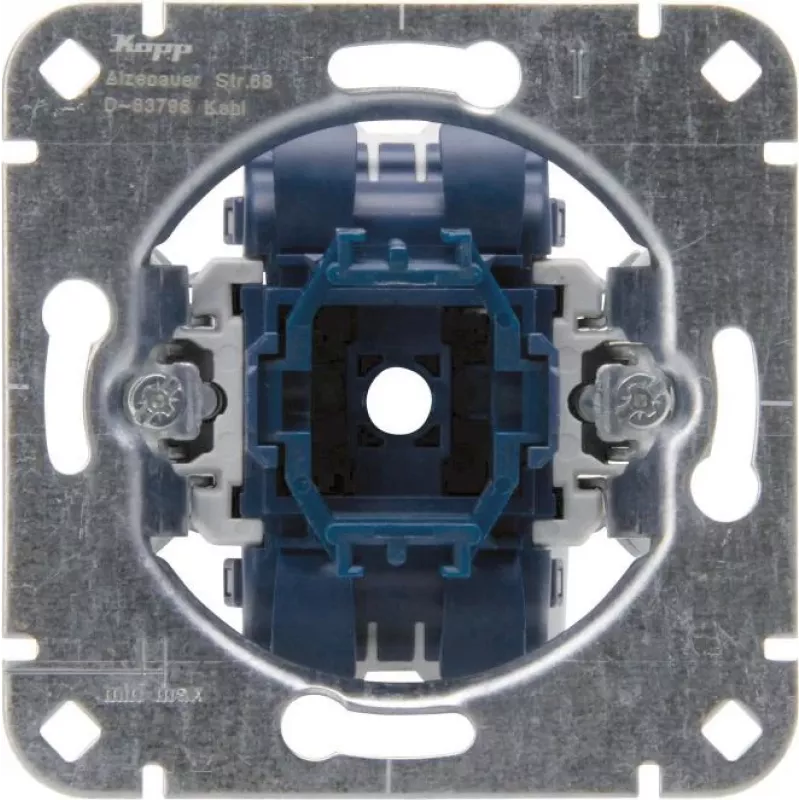

HEINRICH KOPP inbouw-drukschakelaar-inzet, 1 maakcontact, wit 508300002

In many electrical installations, a simple momentary switch is needed for lighting control, doorbells, or blind automation. This flush-mounted push-button base from Heinrich Kopp provides a reliable solution with a single normally open contact, suitable for standard switch programs.

Who is it for

Electricians and DIY enthusiasts who need a basic momentary switch insert for flush-mounted installation in residential or commercial buildings. It is ideal for controlling lighting circuits, doorbells, or other momentary applications.

Main features

• Momentary switch function with 1 normally open (NO) contact
• Flush-mounted design for standard wall boxes
• Rated voltage: 250 V AC, rated current: 10 A
• Screw terminals for secure wiring
• Thermoplastic housing in white
• Compatible with common switch ranges such as Kopp Paris and Milano

Specifications

• Product type: Push-button base / momentary switch insert
• Contact configuration: 1 NO
• Installation type: Flush-mounted
• Number of poles: 1
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Material: Thermoplastic
• Colour: White
• Protection class: IP20
• Mounting method: Claw and screw mounting
• Operating temperature: -5°C to +40°C
• Halogen-free: Yes
• Certification: VDE
• Mounting depth: Approx. 32 mm

Tips

Ensure the power is switched off before installation. Use a compatible cover plate and rocker from the same switch range for a uniform appearance.
