HEINRICH KOPP universele LED-dimmer drukknop inbouw 230V 3-110W LED 3-300W gloeilamp wit IP20

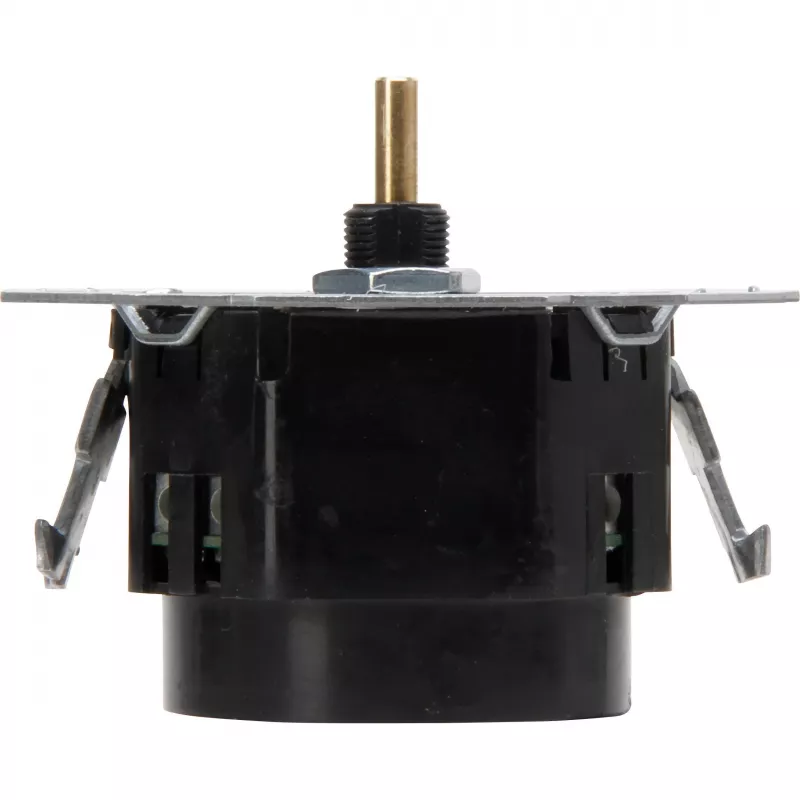

The HEINRICH KOPP 844400008 is a high-quality universal LED dimmer designed for flush-mounted installation. It features push-button control and supports both leading and trailing edge dimming, making it compatible with a wide range of dimmable LED lamps, incandescent lamps, and halogen lamps. The dimmer is equipped with claw and screw fastening for secure mounting and includes integrated overload, short-circuit, and thermal protection for safe operation.

Advantages

This dimmer offers versatile dimming capabilities with a compact design suitable for standard flush-mounted boxes. The push-button control allows for easy on/off switching and dimming. With a minimum load of only 3W, it is ideal for energy-efficient LED lighting. The device is protected against overload, short-circuit, and overheating, ensuring long-lasting performance.

Suitable for

• Dimmable LED lamps (3-110W)
• Incandescent lamps (3-300W)
• HV halogen lamps (3-300W)
• LV halogen lamps with electronic transformers

Key specifications

• Product Type: Universal LED Dimmer
• Control Method: Push-Button
• Dimming Principle: Leading and Trailing Edge (Phase Cut)
• Mounting Type: Flush-Mounted (Unterputz)
• Fastening Method: Claw and Screw Fastening
• Rated Voltage: 230V AC
• Frequency: 50 Hz
• Max. Load LED: 3-110 W
• Max. Load Incandescent/HV Halogen: 3-300 W
• Min. Load: 3 W
• Protection Rating: IP20
• Material: Plastic
• Color: White

Recommendations

For optimal performance, use only with dimmable LED lamps. Ensure proper ventilation and do not exceed the maximum load ratings. Installation should be carried out by a qualified electrician.
