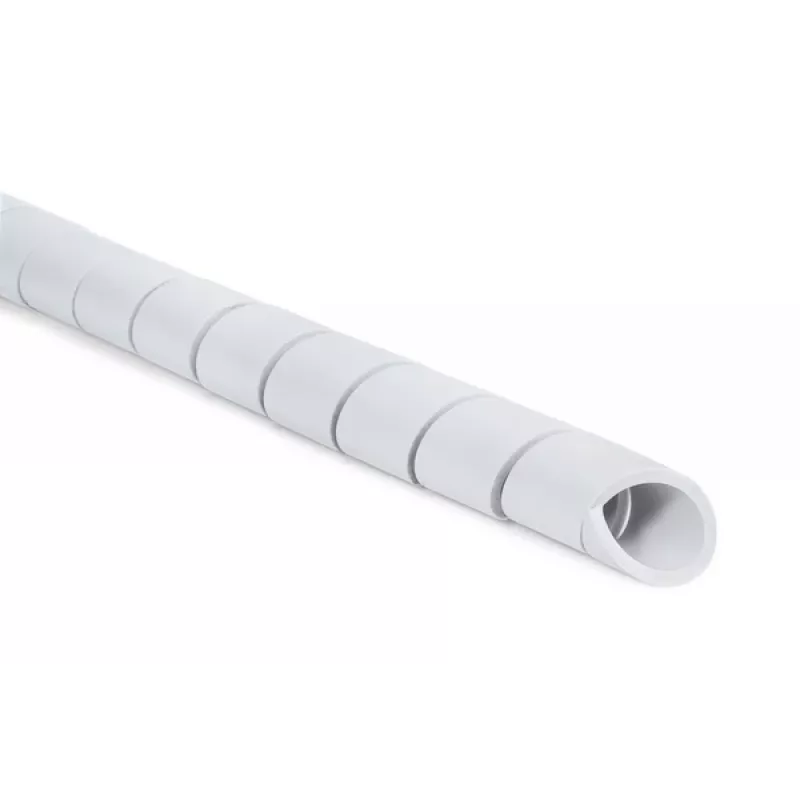

HellermannTyton 161-41002 Spirotect spiraaldraad-kabelbinderwikkel, grijs, 10 mm buitendiameter, 25 m lengte

The Spirotect spiral binding from HellermannTyton offers a reusable and flexible solution for bundling and protecting cables, hoses, and wires. Unlike rigid conduit or adhesive tape, this wrap can be applied after installation and removed or repositioned without tools, making it ideal for maintenance and retrofitting. The grey polyethylene material provides a balance of flexibility and durability, suitable for both indoor and outdoor use.

Highlights

• Spiral design allows cables to branch out at any point along the bundle
• Made from halogen-free polyethylene (PE) for good chemical resistance
• Wide operating temperature range from -60 °C to 80 °C
• UV resistant for outdoor applications
• Flammability rating UL94 HB

In daily use

This spiral wrap is supplied in a 25-metre length, allowing you to cut it to the exact size needed for each project. The 10 mm outer diameter and 1 mm wall thickness provide a snug fit for bundles from 8 mm to 60 mm in diameter. The grey colour (RAL 7037) blends well with industrial equipment and control panels. The material resists acids, alkalis, oils, and greases, ensuring long-term performance in demanding environments.

Full specifications

• Brand: HellermannTyton
• Model: 161-41002
• MPN: 161-41002
• EAN: 5022660547409
• Product Type: Spiral Binding / Cable Wrap
• Series: Spirotect
• Material: Polyethylene (PE)
• Colour: Grey (RAL 7037)
• Nominal Outer Diameter: 10 mm
• Wall Thickness: 1 mm
• Minimum Bundle Diameter: 8 mm
• Maximum Bundle Diameter: 60 mm
• Length: 25 m
• Operating Temperature: -60 °C to 80 °C
• Flammability Rating: UL94 HB
• Halogen-Free: Yes
• UV Resistance: Good
• Chemical Resistance: Good (Acids, Alkalis, Oils, Greases)
• RoHS Compliant: Yes

Final note

For a reliable and reusable cable management solution, the HellermannTyton Spirotect spiral binding offers proven performance in a wide range of applications.
