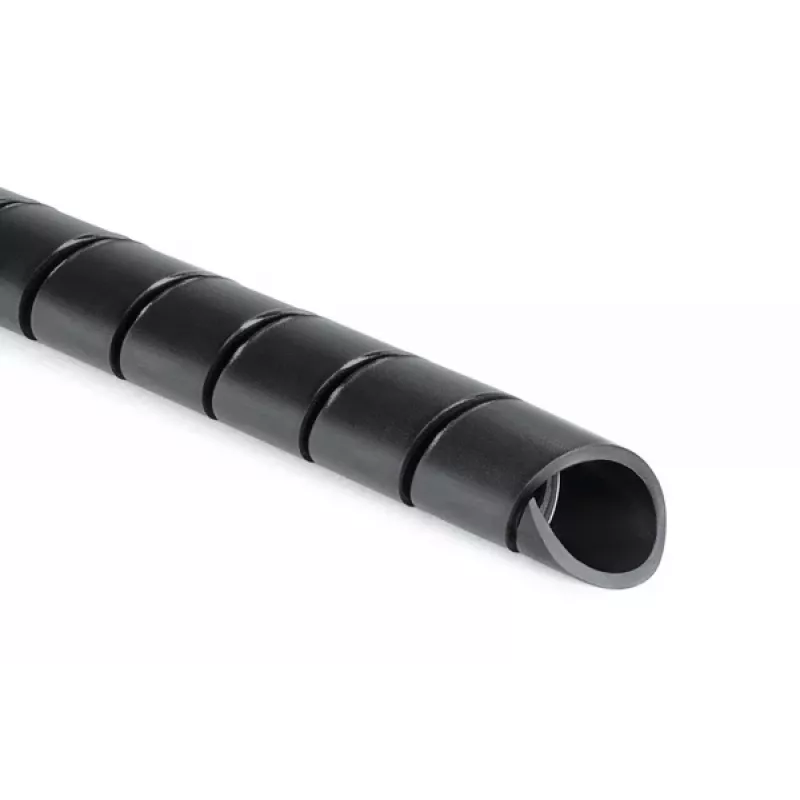

HellermannTyton 161-41301 spiraalslang kabelmanagement, zwart, polypropyleen, 25 m, -60 tot 80 °C

Loose or tangled cables create a safety hazard and make maintenance difficult. The HellermannTyton 161-41301 spiral wrap solves this by bundling and protecting cables in a flexible, reusable sleeve. Its spiral design allows cables to branch out at any point along the wrap, making it ideal for installations where cables must be separated or rerouted frequently.

Who is it for

This cable management solution is suited for electricians, network technicians, and industrial maintenance teams who need to organize and protect cable harnesses in machinery, control cabinets, or data centers. It is also useful for DIY projects where neat cable routing is required.

Main features

• Spiral wrap design permits cable branching at any point without cutting the sleeve.
• Made from polypropylene, providing good chemical and UV resistance for indoor and outdoor use.
• Operating temperature range from -60 °C to +80 °C, suitable for harsh environments.
• Halogen-free and RoHS compliant, reducing toxic emissions in case of fire.
• Black color blends with most cable harnesses and equipment.

Specifications

• Material: Polypropylene (PP)
• Colour: Black
• Inner diameter: 10 mm
• Bundle diameter range: 9 - 12 mm
• Length: 25 m
• Operating temperature: -60 °C to +80 °C
• Flammability rating: UL94 HB
• UV resistance: Good
• Chemical resistance: Good
• Abrasion protection: Excellent
• Halogen-free: Yes
• RoHS compliant: Yes

Tips

When applying the spiral wrap, start at one end of the cable bundle and rotate the wrap around the cables, overlapping each turn slightly for full coverage. To add or remove a cable, simply unwind the wrap from that section—no need to disassemble the entire bundle.
