HellermannTyton 2K-KH100 250ml 2-componenten gel-cartridge met SF-systeem Gel100-250mlKH100-CL (435-00835)

With a dielectric strength exceeding 20 kV/mm, this 250 ml two-component gel cartridge provides reliable electrical insulation and sealing for demanding environments.

Overview

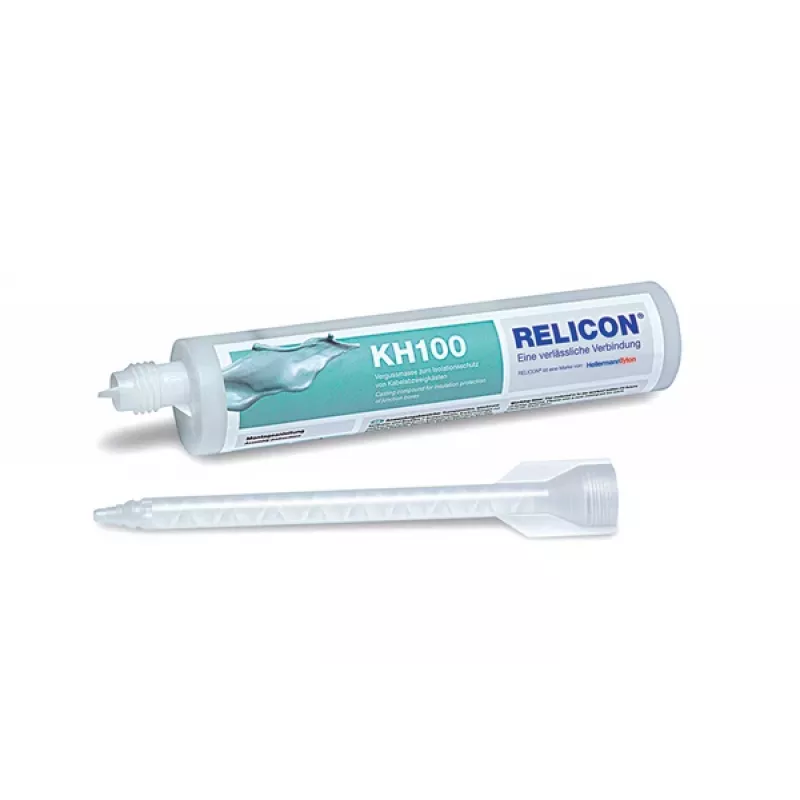

The HellermannTyton 2K-KH100 is a 250 ml cartridge containing a transparent, halogen-free, silicone-free gel based on hydrocarbon resin. Designed for use with HellermannTyton SF-System dispensing guns, it delivers a 1:1 mixing ratio for consistent curing and performance. The gel cures to a re-enterable, UV-resistant seal, suitable for electrical insulation, sealing, and mechanical protection in a wide range of applications.

What stands out

• High dielectric strength (>20 kV/mm) for effective electrical insulation
• Fast handling time of 10 minutes at 23°C; full cure in 60 minutes
• Wide operating temperature range from -40°C to +100°C
• Halogen-free and silicone-free formulation
• Re-enterable and UV-resistant for long-term durability
• Compatible with HellermannTyton SF-System dispensing guns

Technical details

• Product type: 2-component gel cartridge
• Volume: 250 ml
• Mixing ratio: 1:1
• Gel type: Hydrocarbon resin based
• Colour: Transparent
• Dielectric strength: >20 kV/mm
• Operating temperature: -40°C to +100°C
• Curing time (handling): 10 minutes at 23°C
• Curing time (full cure): 60 minutes at 23°C
• Shelf life: 36 months
• Halogen-free: Yes
• Silicone-free: Yes
• Non-toxic: Yes
• Re-enterable: Yes
• UV resistance: Good

Our verdict

A high-performance gel cartridge that delivers reliable sealing and insulation with fast curing and a wide temperature range, making it a solid choice for professional electrical applications.
