HellermannTyton 600-02949 chlooropreenrubber (CR) krimpkous 4:1 12 mm zwart 1,2 m

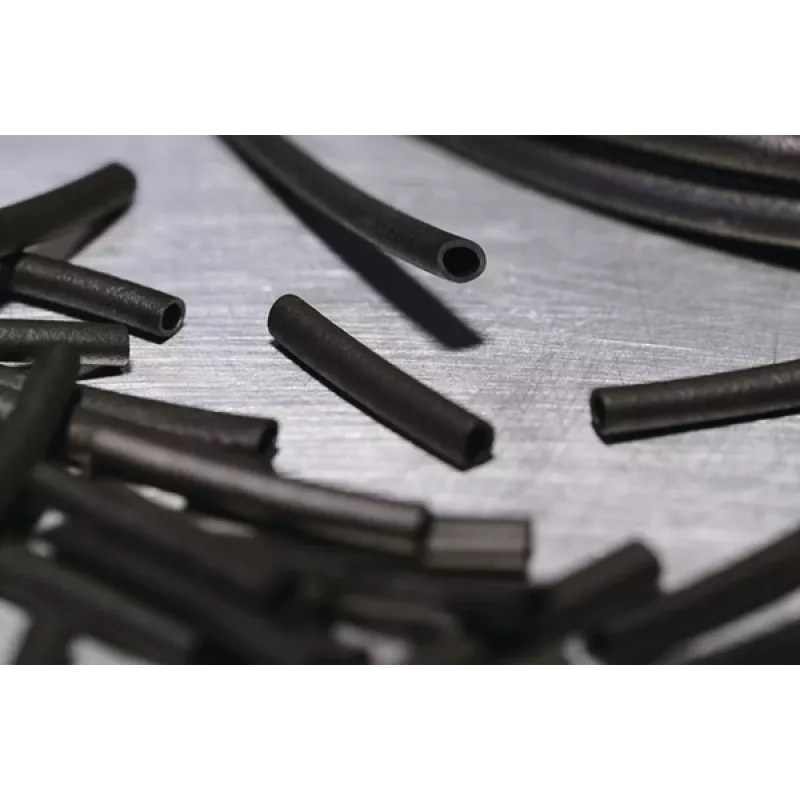

The HellermannTyton 600-02949 is a high-performance thick-walled heat shrink tubing made from chloroprene rubber (CR). Designed for demanding applications, it provides excellent electrical insulation, sealing, mechanical protection, and strain relief. With a 4:1 shrink ratio, it fits a wide range of cable diameters and ensures a tight, secure fit. The adhesive lining provides additional sealing against moisture and contaminants.

Advantages

This heat shrink tubing offers superior UV resistance and good chemical resistance to acids, alkalis, and solvents. It is self-extinguishing and operates reliably in temperatures from -40°C to +120°C. The high dielectric strength (>15 kV/mm) and mechanical robustness make it ideal for industrial and outdoor use.

Suitable for

• Electrical insulation and sealing of cables and connectors
• Mechanical protection and strain relief in harsh environments
• Automotive, marine, and industrial applications
• Outdoor installations requiring UV resistance

Key specifications

• Material: Chloroprene Rubber (CR)
• Colour: Black
• Shrink Ratio: 4:1
• Supplied Inner Diameter: 12.0 mm
• Recovered Inner Diameter: 3.0 mm
• Recovered Wall Thickness: 2.5 mm
• Length: 1.2 m
• Operating Temperature: -40°C to +120°C
• Minimum Shrink Temperature: +70°C
• Dielectric Strength: >15 kV/mm
• Tensile Strength: >10 MPa
• Elongation at Break: >300%
• Flammability: Self-extinguishing
• Adhesive Lined: Yes
• Halogen-free: No
• RoHS Compliant: Yes

Recommendations

For best results, use a heat gun or oven to shrink the tubing evenly. Ensure the cable surface is clean and dry before installation. This product is suitable for continuous use at temperatures up to 120°C and intermittent exposure up to 150°C.
