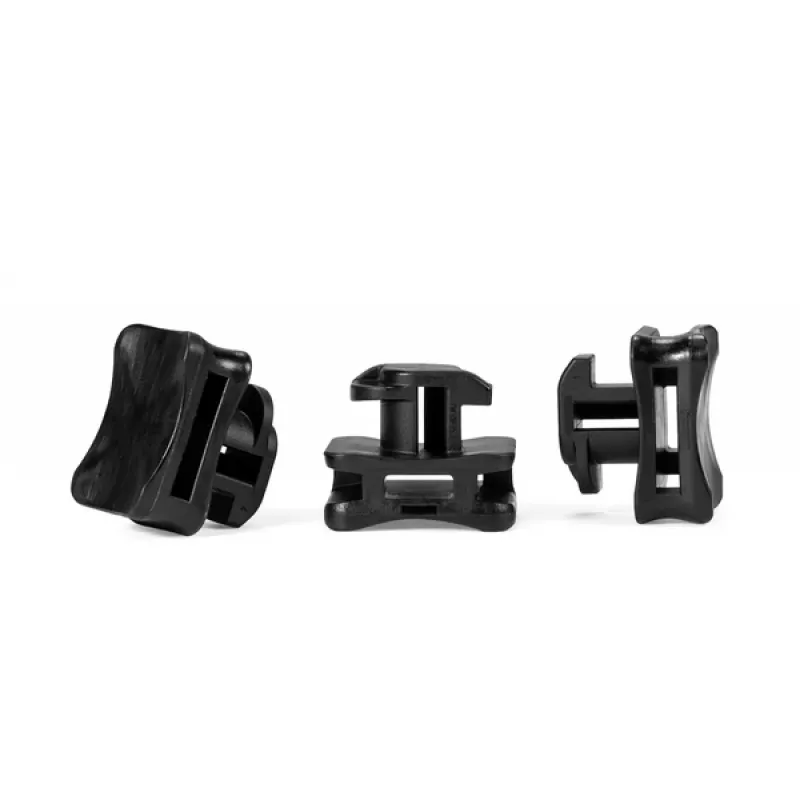

HellermannTyton ACFM7W10PT5.3 kabelbinderhouder voor DIN-rail, slagvast PA66, zwart, 25 stuks 151-03246

This cable tie mount snaps directly onto a TS35 DIN rail, providing a secure anchoring point for cable ties in control panels and electrical cabinets. Unlike adhesive mounts that can fail under load or temperature, the mechanical snap-on design holds firmly without glue, and the impact-resistant polyamide 6.6 body withstands knocks during installation and service.

Highlights

• Snap-on mounting for 35 mm DIN rail (TS35 profile)
• Impact-resistant PA66 material for durability
• Accepts cable ties up to 7.6 mm wide
• Black colour blends into cabinet interiors
• Halogen-free and RoHS compliant

In daily use

The mount's low profile keeps wiring neat, and its stable base prevents rotation when ties are tensioned. With an operating range of -40 °C to +85 °C, it suits both cold storage and high-temperature electrical environments. Each pack contains 25 pieces, enough for multiple DIN rail sections.

Full specifications

• Product type: Cable tie mount
• Mounting type: DIN rail (TS35)
• Material: Polyamide 6.6 (PA66), impact-resistant
• Max. cable tie width: 7.6 mm
• Dimensions (L x W x H): 30.0 x 10.0 x 10.3 mm
• Operating temperature: -40 °C to +85 °C
• Flammability rating: UL94 V2
• Halogen-free: Yes
• UV-resistant: No
• Quantity per pack: 25
• RoHS compliant: Yes

Final note

A reliable snap-on solution for DIN rail cable management, offering impact resistance and a wide temperature range for industrial applications.
