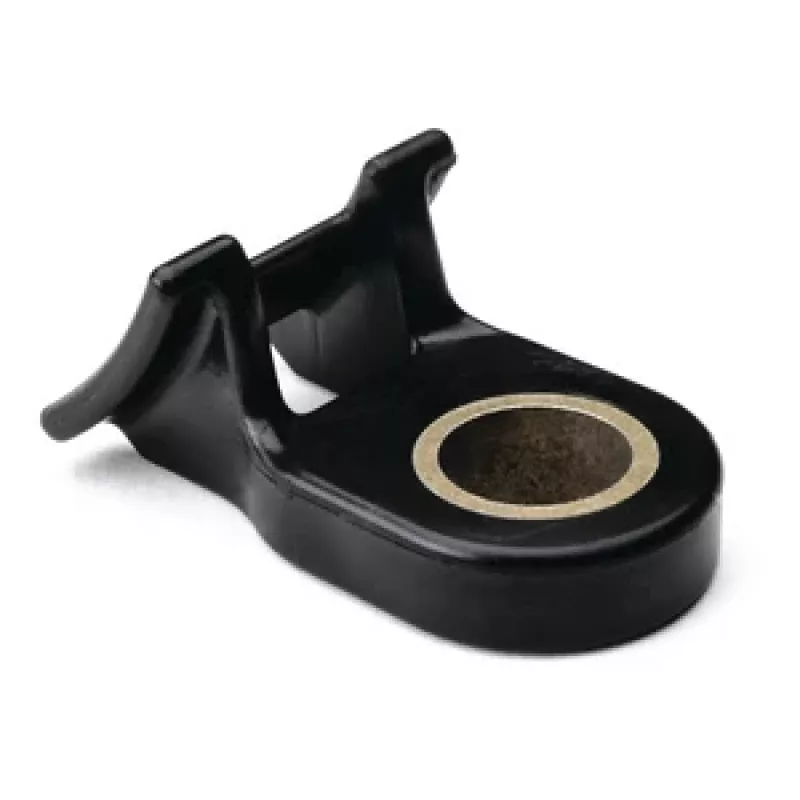

HellermannTyton HDM500-PA66HIRHSUV-BK schroefbare kabelbinder-bevestigingssokkel, zwart, 1 stuks 151-02096

In control cabinets and on machine frames, cable ties need a secure anchor point. The HellermannTyton HDM500-PA66HIRHSUV-BK mounting base provides that anchor: screw it to a flat surface, thread a cable tie through the slot, and bundle cables or wires firmly in place. Its black polyamide 6.6 body is high impact resistant, heat stabilized, and UV resistant, making it suitable for both indoor and outdoor installations.

Key specifications

• Material: Polyamide 6.6 (PA66HIRHSUV), high impact resistant, heat stabilized, UV resistant
• Colour: Black
• Dimensions: 25.0 mm length × 25.0 mm width × 6.5 mm height
• Fixing hole diameter: 5.3 mm, recommended screw size M5
• Max. cable tie width: 5.0 mm
• Operating temperature range: -40 °C to +105 °C
• Flammability rating: UL94 V2
• Halogen-free
• Pack quantity: 1 piece

Why choose it

The HDM500 base is built for demanding environments. Its high impact resistance withstands mechanical stress, heat stabilization prevents deformation at elevated temperatures, and UV resistance prevents degradation from sunlight. The screwable design ensures a permanent, vibration-resistant mounting, ideal for industrial machinery, automotive applications, and outdoor installations.

Ideal use cases

• Securing cable bundles in control cabinets and switchgear
• Mounting wiring harnesses on vehicle chassis or body panels
• Outdoor cable management on solar installations or street furniture
• Organizing cables in HVAC systems and industrial equipment

Good to know

The base accepts cable ties up to 5.0 mm wide, compatible with standard HellermannTyton ties of that width. For installation, use an M5 screw (not included) through the 5.3 mm hole. The compact footprint (25 × 25 mm) allows placement in tight spaces.
