HellermannTyton Helagaine Twist-In gevlochten slang, 32-38 mm bundeldiameter, 2 m, zwart 170-01018

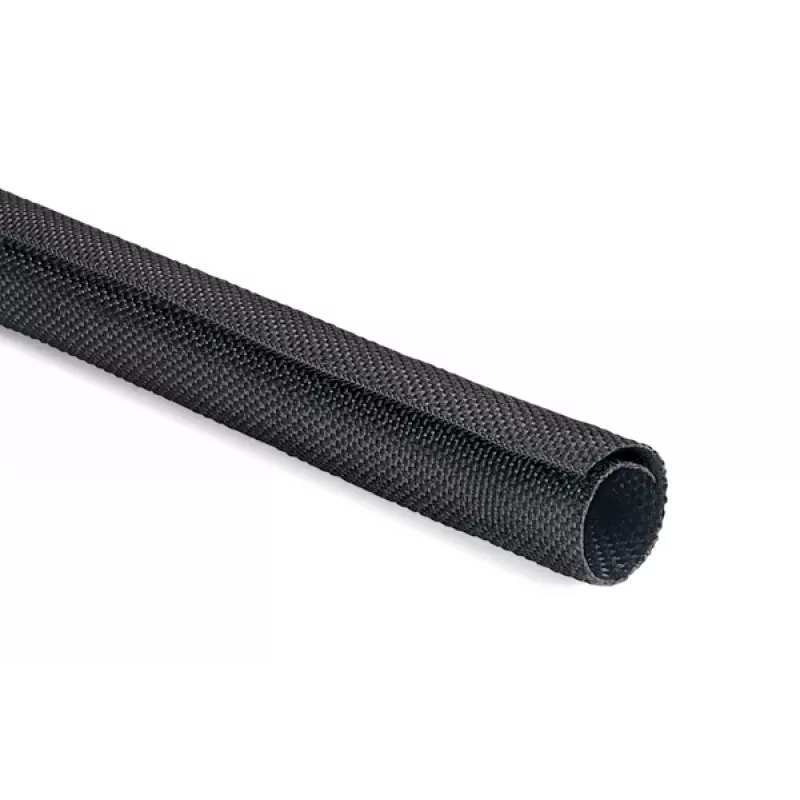

Braided sleeve for cable bundling and protection, featuring a self-wrapping Twist-In design that accommodates bundle diameters from 32 to 38 mm. The open-weave polyester construction allows for easy installation over existing cable assemblies without disconnecting connectors.

Advantages

The Twist-In closure wraps around the bundle and stays in place, providing re-usable and adjustable protection. The PET polyester material offers high abrasion resistance and good chemical resistance, with a wide operating temperature range from -50 °C to +150 °C. The sleeve is halogen-free and meets UL94 V0 flammability rating.

Suitable for

• Bundling and organizing cables in industrial control panels
• Protecting wire harnesses in automotive and machinery applications
• Managing cables in data centers and network installations
• Retrofitting existing cable runs without disassembly

Key specifications

• Nominal diameter: 38 mm
• Bundle diameter range: 32 - 38 mm
• Length: 2 m
• Material: Polyester (PET)
• Colour: Black
• Operating temperature: -50 °C to +150 °C
• Flammability rating: UL94 V0
• Halogen-free: Yes
• UV resistance: Good
• Abrasion resistance: High
• Chemical resistance: Good
• Reusability: Yes

Recommendations

For optimal performance, select a sleeve size that matches the bundle diameter range. The Twist-In design allows for easy installation and removal, making it ideal for maintenance and rework.
