HellermannTyton Helagrip PVC-markeringshuls-assortiment, 10 rollen, 15 mm binnendiameter, 10 m lengte, meerkleurig (10 kleuren) 710-00146

Identifying and bundling cables in industrial or commercial installations often requires durable, flexible sleeves that can withstand harsh environments. The HellermannTyton Helagrip PVC Marking Sleeve assortment provides a practical solution with ten rolls of soft PVC sleeving in distinct colours, allowing quick visual identification of wires and cables.

Who is it for

Electricians, panel builders, and maintenance technicians who need to mark or bundle cables in control cabinets, machinery, or network installations. The assortment suits both new installations and retrofitting where colour coding is essential for safety and troubleshooting.

Main features

• Soft PVC material offers high flexibility and good resistance to oils, acids, and alkalis.
• Inner diameter of 15 mm fits a wide range of cable bundles or individual conductors.
• Wall thickness of 0.15 mm keeps the sleeve lightweight while providing insulation.

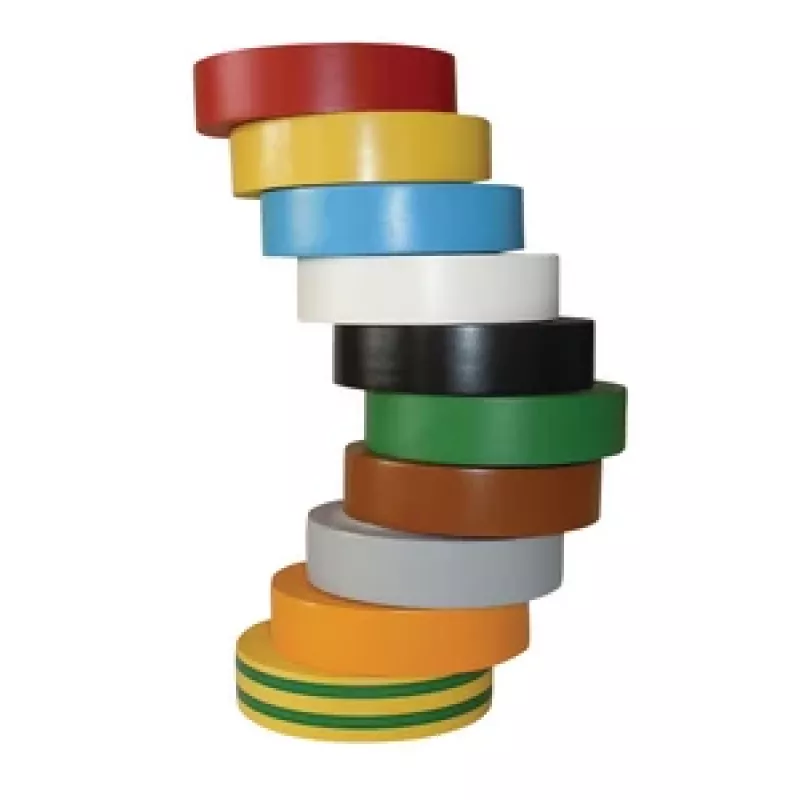

• Ten rolls, each 10 metres long, in ten different colours: black, blue, brown, green, green/yellow, grey, orange, red, white, and yellow.
• Self-extinguishing PVC with a dielectric strength above 20 kV/mm for safe use in electrical environments.
• Operating temperature range from -30 °C to +85 °C, suitable for many indoor and outdoor applications.

Specifications

• Product type: PVC marking sleeve
• Brand series: Helagrip
• Material: Soft PVC (Polyvinyl Chloride)
• Inner diameter: 15 mm
• Wall thickness: 0.15 mm
• Length per roll: 10 m
• Quantity per pack: 10 rolls
• Colour assortment: black, blue, brown, green, green/yellow, grey, orange, red, white, yellow
• Operating temperature range: -30 °C to +85 °C
• Flammability rating: self-extinguishing
• Dielectric strength: >20 kV/mm
• Tensile strength: >15 MPa
• Chemical resistance: good (to most oils, acids, alkalis)
• UV resistance: good
• Application: cable and wire identification, insulation, bundling
• Packaging type: roll
• Flexibility: high

Tips

Use the green/yellow sleeve for protective earth conductors to comply with common wiring colour codes. For long-term outdoor exposure, consider additional UV protection or conduit, as PVC can degrade over time under direct sunlight.
