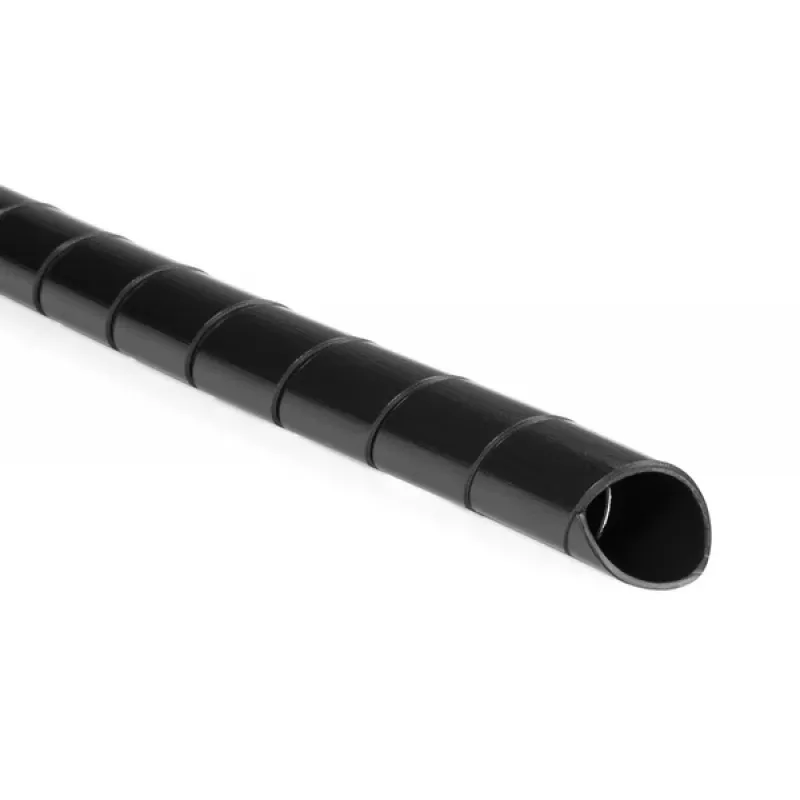

HellermannTyton Helawrap HWPP kabelbeschermslang, 20 mm buitendiameter, 25 m, zwart 161-44200

Loose cables create clutter, snag on equipment, and wear prematurely. The HellermannTyton Helawrap HWPP spiral wrap solves this by bundling and protecting wires in one step. Its wrap-around design lets you install it without disconnecting cables, and the polypropylene material resists abrasion and stays flexible across a wide temperature range.

Who is it for

Technicians and installers who need a reusable, easy-to-apply sleeve for cable management in control panels, machinery, or office environments. It suits applications where cables must be added or removed later, since the spiral can be unwrapped and reused.

Main features

• Spiral cut, wrap-around design for quick installation without cable disconnection
• Polypropylene construction with good UV resistance and halogen-free properties
• Operating temperature range from -40 °C to +90 °C
• Reusable and flexible, with UL94 HB flammability rating
• 25 m length covers long cable runs or multiple smaller bundles

Specifications

• Material: Polypropylene (PP)
• Colour: Black
• Nominal outer diameter: 20 mm
• Nominal inner diameter: 17.5 mm
• Wall thickness: 0.5 mm
• Bundle diameter range: 17 mm to 20 mm
• Length: 25 m
• Operating temperature: -40 °C to +90 °C
• Minimum installation temperature: -5 °C
• Flammability rating: UL94 HB
• Halogen-free: Yes
• RoHS compliant: Yes
• REACH compliant: Yes

Tips

For a snug fit, choose a sleeve with an inner diameter close to your bundle diameter. The spiral can be cut to length with scissors and wrapped around existing cables without removing connectors.
