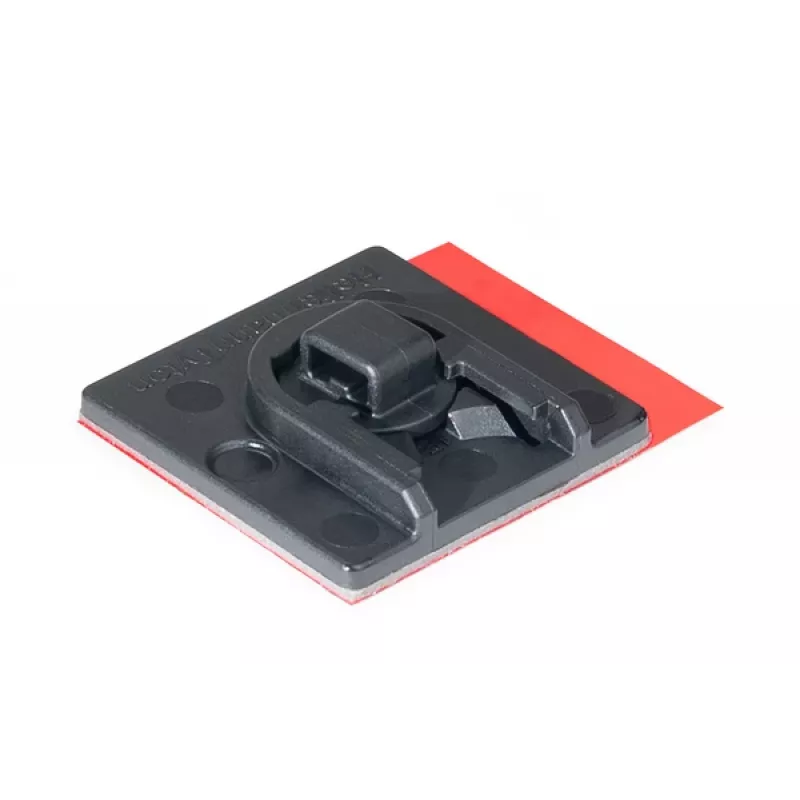

HellermannTyton SMB4APT-A zelfklevende kabelbinder-voet, 28 x 28 mm, naturel, PA66, 1 stk. 151-03364

The SMB4APT-A mounting base stands out for its compact 28 x 28 mm footprint and self-adhesive synthetic rubber backing, allowing quick, tool-free installation on clean, flat surfaces. Unlike screw-fixed bases, it eliminates the need for drilling, making it ideal for temporary or vibration-sensitive applications.

Highlights

• Self-adhesive mounting for fast, secure placement
• Made of polyamide 6.6 (PA66) for strength and durability
• Accepts cable ties up to 4.8 mm wide
• Halogen-free and RoHS compliant
• Operating temperature range from -40 °C to +85 °C

In daily use

The base's low 6.3 mm profile keeps cable runs neat and unobtrusive. The synthetic rubber adhesive provides reliable bonding on smooth surfaces, while the natural colour blends with light-coloured panels and enclosures. It is intended for indoor use where a permanent mechanical fixing is not required.

Full specifications

• Product type: Cable tie mounting base
• Mounting type: Self-adhesive
• Material: Polyamide 6.6 (PA66)
• Colour: Natural
• Length: 28 mm
• Width: 28 mm
• Height: 6.3 mm
• Max cable tie width: 4.8 mm
• Adhesive type: Synthetic rubber
• Operating temperature: -40 °C to +85 °C
• Flammability rating: UL94 V2
• Halogen-free: Yes
• RoHS compliant: Yes
• Indoor/outdoor use: Indoor
• Pack quantity: 1 piece

Final note

A practical, adhesive-backed solution for organising cables without tools, offering reliable performance in indoor environments.
