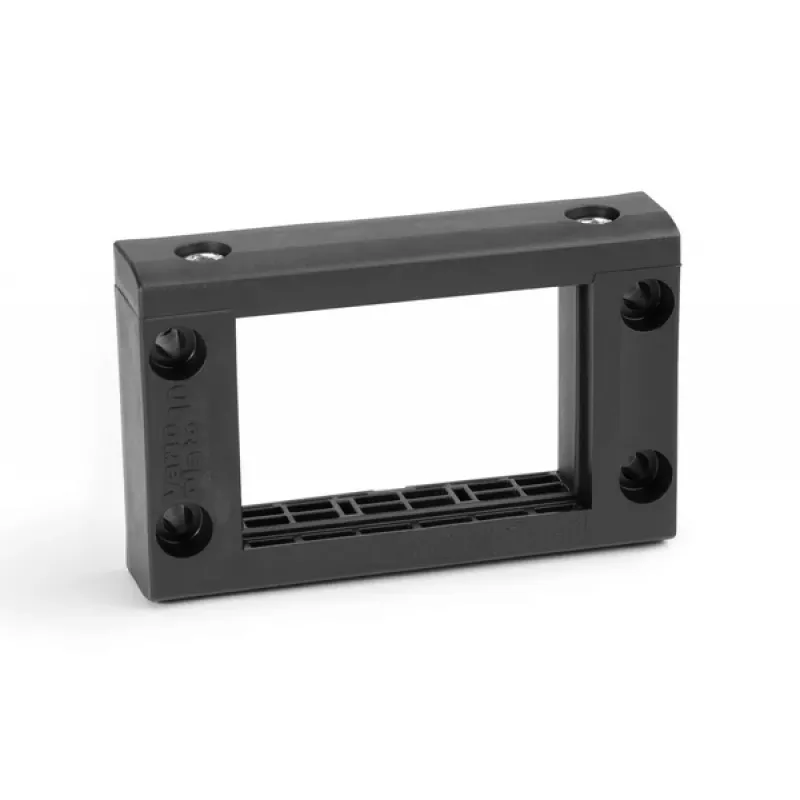

HellermannTyton VarioPlate-10 kabeldoorvoerraam, polyamide 6.6, zwart, halogeenvrij, 10 modules 440-00001

Control cabinet builders and machine manufacturers use the HellermannTyton VarioPlate-10 Cable Entry Frame to route multiple cables through enclosure walls while maintaining a clean, organized entry point. This black frame is made from halogen-free polyamide 6.6 and accepts up to 10 VarioPlate insert modules, allowing flexible configuration for different cable diameters.

Key specifications

• Material: Polyamide 6.6 (PA66)
• Colour: Black
• Halogen-free: Yes
• Flammability rating: UL94 V-0
• Operating temperature range: -40 °C to +105 °C
• Number of modules: 10
• Mounting type: Screw mounting
• Compatible system: HellermannTyton VarioPlate
• Application area: Control cabinets, enclosures, machine building
• Chemical resistance: Good against common oils, greases, and solvents
• Mechanical properties: High impact strength and rigidity

Why choose it

The frame's modular design simplifies cable management and future modifications. Its robust PA66 construction withstands harsh industrial environments, and the halogen-free material supports safer fire behaviour. The UL94 V-0 rating ensures low flammability, making it suitable for demanding electrical installations.

Ideal use cases

• Routing power and signal cables in control cabinets
• Machine building and automation systems
• Enclosures requiring organized, strain-relieved cable entry
• Applications where halogen-free materials are specified

Good to know

The VarioPlate-10 frame is part of the HellermannTyton VarioPlate system, which includes a range of inserts for different cable sizes. It is designed for screw mounting and provides a secure base for the inserts. The frame itself does not include inserts; they must be ordered separately.
