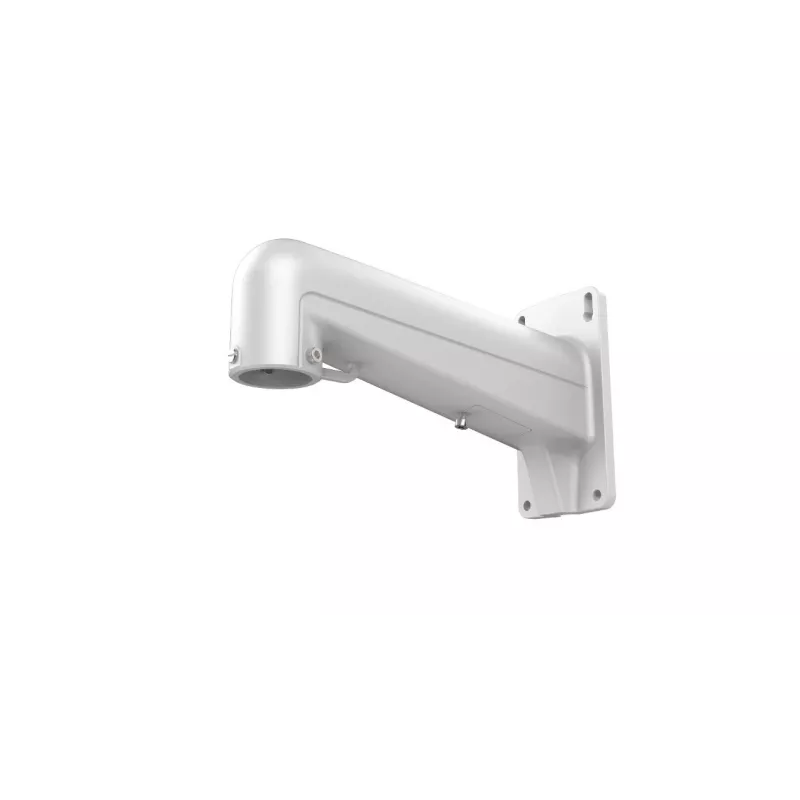

Hikvision DS-1602ZJ-AKS wandbeugel voor dome- en turretcamera's, wit

The Hikvision DS-1602ZJ-AKS is a robust wall mount bracket designed for Hikvision dome and turret cameras. Constructed from high-quality aluminum alloy, this mount provides a secure and weatherproof mounting solution for both indoor and outdoor environments. It features an integrated cable management system and a junction box, ensuring a clean and professional installation.

Advantages

This wall mount offers exceptional durability and reliability, with a load capacity of up to 4.5 kg. Its integrated cable pass-through and junction box simplify wiring and protect connections from the elements. The mount is compatible with a wide range of Hikvision camera series, making it a versatile choice for security system installations.

Suitable for

• Hikvision DS-2CD21xx series dome cameras
• Hikvision DS-2CD23xx series dome cameras
• Hikvision DS-2CD2Txx series turret cameras
• Other compatible dome and turret cameras

Key specifications

• Mounting Type: Wall Mount
• Material: Aluminum Alloy
• Color: Hik White
• Load Capacity: 4.5 kg (9.92 lb)
• Base Diameter: 157 mm (6.18")
• Projection from Wall: 182 mm (7.17")
• Overall Height: 173 mm (6.81")
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 0% to 90% (non-condensing)
• Weatherproof Design: Yes
• Integrated Cable Management: Yes
• Integrated Junction Box: Yes

Recommendations

For optimal performance, ensure that the mount is securely attached to a solid wall surface using the included screws. This mount is ideal for professional security camera installations where reliability and ease of installation are paramount.
