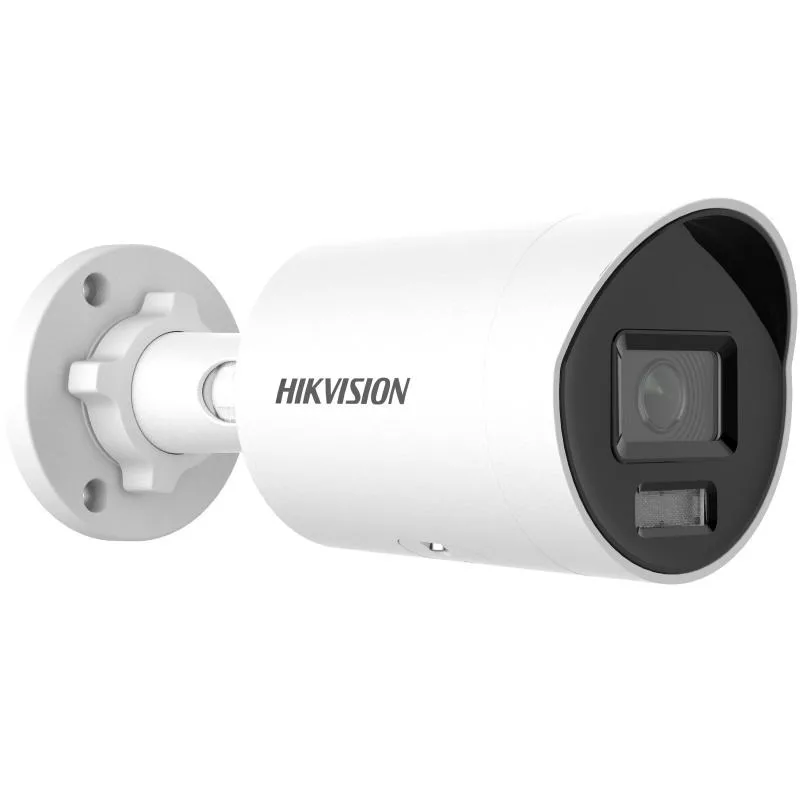

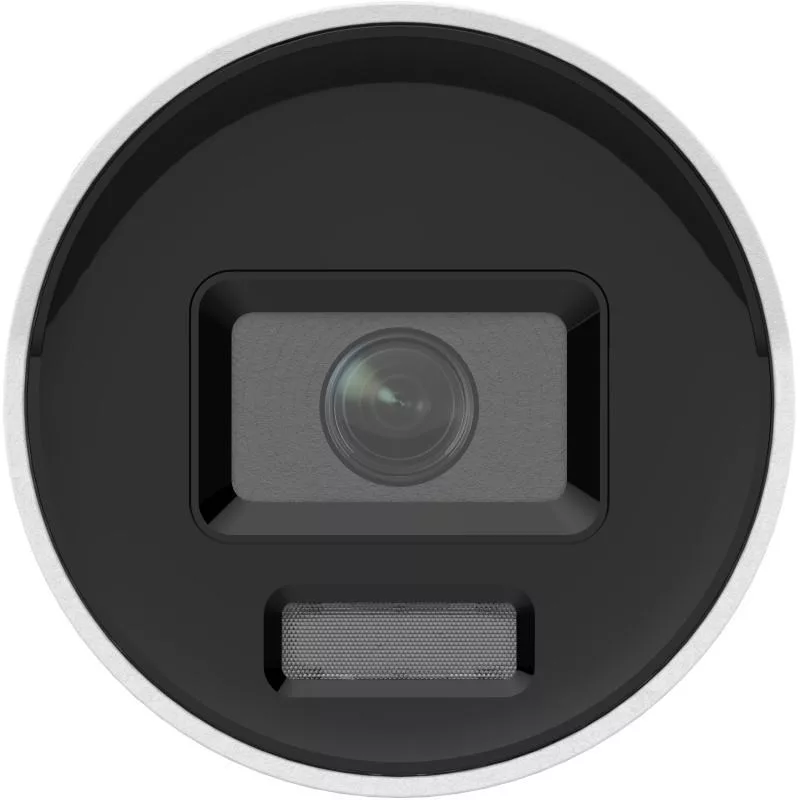

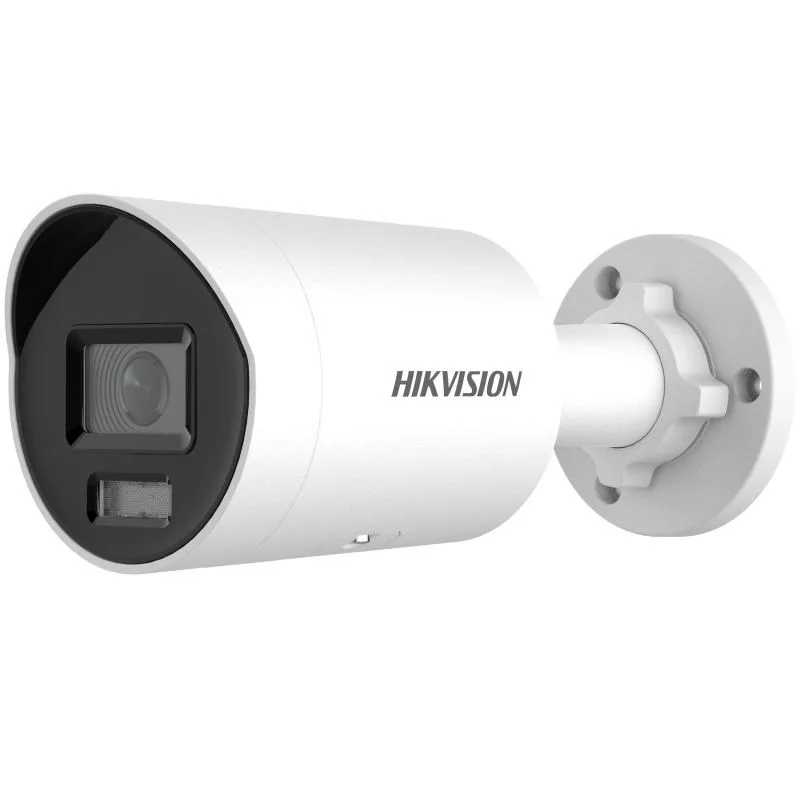

Hikvision DS-2CD2086G2H-IU(4mm)(eF) 8MP IP-camera met AcuSense

The Hikvision DS-2CD2086G2H-IU(4mm)(eF) is a high-performance 8 Megapixel IP camera designed for professional surveillance. Featuring AcuSense technology for accurate human and vehicle classification, this camera delivers exceptional image quality with 3840x2160 resolution at 30 fps. With a 4mm fixed lens, 120 dB WDR, and IR night vision up to 40m, it ensures reliable monitoring in various lighting conditions. The camera supports H.265+ compression, PoE, and is rated IP67 for outdoor use.

Advantages

AcuSense smart detection reduces false alarms by distinguishing humans and vehicles from other motion. The 1/1.8" progressive scan CMOS sensor provides clear images even in low light (0.003 Lux color). With 120 dB true WDR, it handles high-contrast scenes effectively. The metal housing and IP67 rating ensure durability in harsh environments.

Suitable for

• Perimeter security for commercial and residential properties
• Retail stores, warehouses, and parking lots
• Outdoor surveillance requiring high detail and smart analytics

Key specifications

• Resolution: 8 MP (3840x2160)
• Sensor: 1/1.8" Progressive Scan CMOS
• Lens: 4mm fixed, F1.6, 88° HFoV
• IR Range: Up to 40m
• Video Compression: H.265+/H.265/H.264+/H.264
• Frame Rate: 30 fps at 8MP
• Audio: Built-in microphone, audio I/O
• Network: 1 RJ45 10/100M Ethernet
• Power: 12 VDC, PoE (802.3af)
• Storage: MicroSD slot up to 512 GB
• Weather Resistance: IP67
• Smart Features: AcuSense (human/vehicle classification)
• WDR: 120 dB
• Minimum Illumination: 0.003 Lux (color)
• Material: Metal

Recommendations

For optimal performance, use with a PoE switch or injector. The camera is compatible with Hikvision NVRs and third-party systems via ONVIF. Ensure proper mounting for best field of view.
