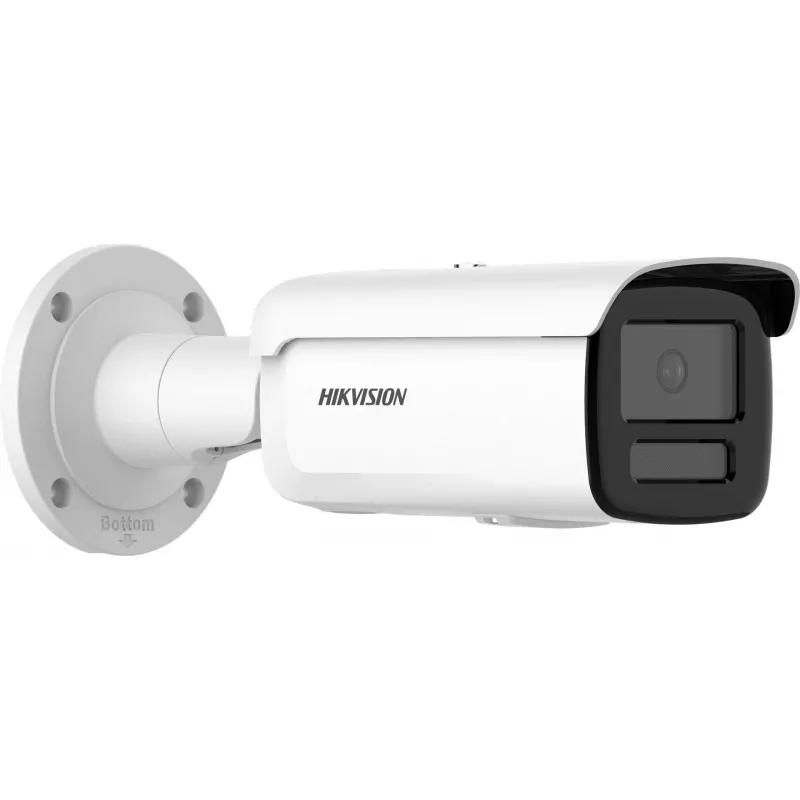

Hikvision DS-2CD2T66G2H-2I(2,8mm) IP-camera 6MP AcuSense bullet

The Hikvision DS-2CD2T66G2H-2I(2.8mm) is a high-performance IP camera featuring 6MP resolution and AcuSense technology for accurate human and vehicle target classification. With a 2.8mm fixed lens providing a wide 105° horizontal field of view, this bullet camera is ideal for outdoor surveillance in demanding environments. It supports H.265+ compression for efficient bandwidth and storage, and offers up to 60m IR range for clear night vision.

Advantages

AcuSense smart detection reduces false alarms by distinguishing humans and vehicles from other motion. True 120 dB WDR ensures clear images in high-contrast lighting. IP67 weatherproof rating and metal housing guarantee durability in harsh conditions.

Suitable for

• Perimeter monitoring of commercial and industrial sites
• Retail stores, warehouses, and parking lots
• Residential outdoor security

Key specifications

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max Resolution: 3072 × 2048 (6MP)
• Lens: 2.8mm fixed, F1.6
• Field of View: H: 105°, V: 55°, D: 125°
• IR Range: Up to 60m
• Video Compression: H.265+/H.265/H.264+/H.264
• WDR: 120 dB True WDR
• Min Illumination: Color 0.003 Lux, B/W 0 Lux with IR
• Smart Features: AcuSense (Human/Vehicle Classification)
• Storage: microSD slot up to 256 GB
• Network: 1 RJ45 10/100M Ethernet
• Power: 12 VDC ± 25%, PoE (802.3af, Class 3)
• Power Consumption: Max 12.5 W
• Operating Temperature: -30°C to 60°C
• Ingress Protection: IP67
• Material: Metal
• Frame Rate: 20fps @ 3072×2048, 25/30fps @ lower resolutions

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the camera is mounted securely and the lens is aimed to cover the desired area. Regular firmware updates are recommended to maintain security and functionality.
