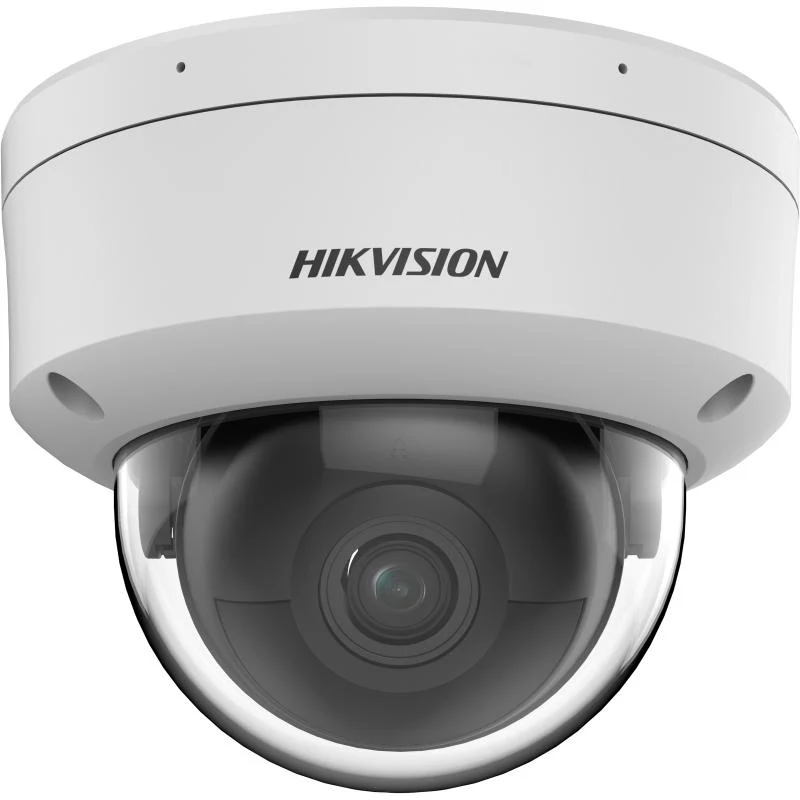

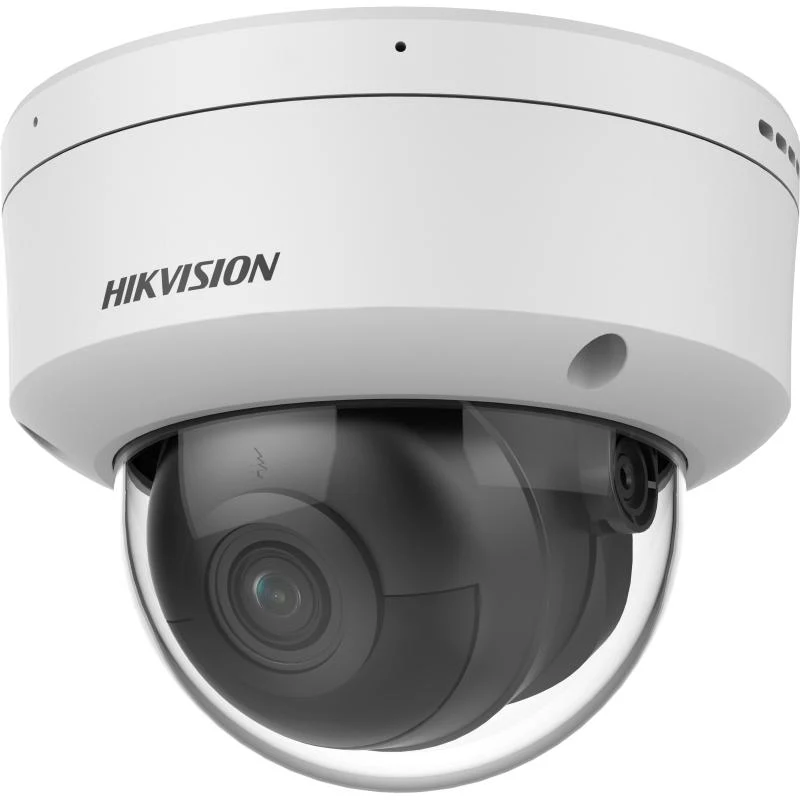

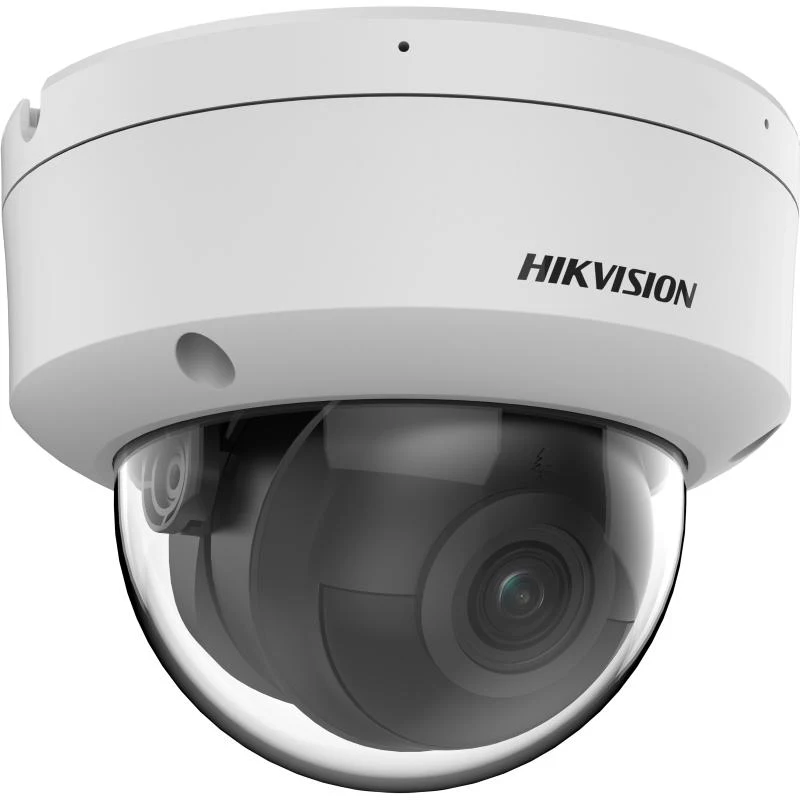

Hikvision DS-2CD3166G2-ISU 2.8mm H eF O-STD netwerkcamera

The Hikvision DS-2CD3166G2-ISU is a high-performance network camera featuring AcuSense technology for accurate human and vehicle detection. With a 2.8mm fixed lens and 6MP resolution, it delivers clear and detailed images. Designed for outdoor use, it boasts IP67 weatherproof and IK10 vandal-resistant ratings, ensuring reliable operation in harsh environments.

Advantages

AcuSense smart detection reduces false alarms by distinguishing humans and vehicles from other moving objects. The 120dB true WDR ensures clear imaging in high-contrast lighting conditions. Built-in microphone and audio I/O support two-way communication.

Suitable for

• Perimeter surveillance
• Retail stores
• Office buildings
• Parking lots

Key specifications

• Image Sensor: 1/2.4" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800 at 20 fps
• Lens: 2.8 mm fixed, F1.6
• Field of View: Horizontal 105°, Vertical 55°, Diagonal 125°
• IR Range: Up to 30 m
• Video Compression: H.265+/H.265/H.264+/H.264
• WDR: 120 dB
• Minimum Illumination: Color 0.003 Lux, B/W 0 Lux with IR
• Audio: Built-in mic, 1-ch input, 1-ch output
• Alarm: 1-ch input, 1-ch output
• Storage: microSD slot up to 256 GB
• Network: 1 RJ45 10/100 M
• Power: 12 VDC or PoE (802.3af)
• Protection: IP67, IK10
• Operating Temperature: -30 °C to 60 °C

Recommendations

For optimal performance, use a PoE switch or injector to simplify installation. Pair with Hikvision NVR for seamless integration and advanced analytics.
