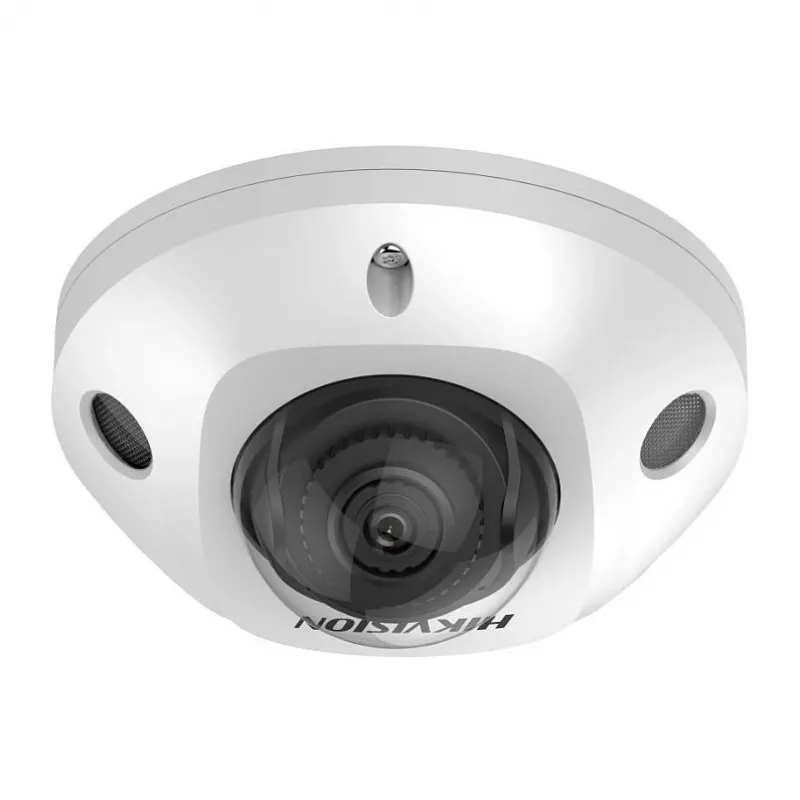

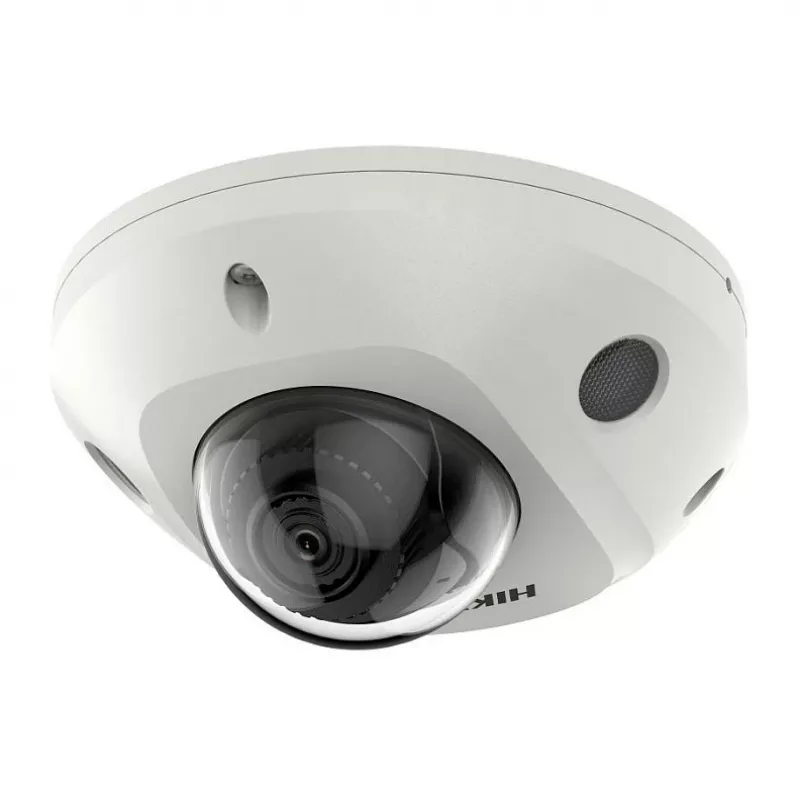

Hikvision DS-2CD3546G2-IS 2,8mm H eF O-STD bullet smart IP-camera

The Hikvision DS-2CD3546G2-IS is a high-performance 4 MP bullet IP camera designed for outdoor surveillance. Featuring AcuSense technology for accurate human and vehicle classification, it delivers intelligent monitoring with reduced false alarms. With a 2.8 mm fixed lens, 120 dB WDR, and IR night vision up to 30 m, this camera ensures clear imaging in various lighting conditions.

Advantages

AcuSense smart detection reduces false alarms by distinguishing humans and vehicles from other objects. The 4 MP resolution provides detailed images, while 120 dB true WDR handles high-contrast scenes. IP67 weatherproof rating and wide operating temperature range make it suitable for harsh environments. Power over Ethernet (PoE) simplifies installation.

Suitable for

• Outdoor perimeter surveillance
• Retail stores and warehouses
• Parking lots and building entrances
• Industrial sites and campuses

Key specifications

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520 (4 MP)
• Lens: 2.8 mm fixed, F1.6
• Field of View: H: 103°, V: 55°, D: 122°
• IR Range: Up to 30 m
• Video Compression: H.265+/H.265/H.264+/H.264
• WDR: 120 dB
• Min. Illumination: Color: 0.005 Lux @ F1.6
• Smart Features: AcuSense, Line Crossing, Intrusion Detection
• On-board Storage: MicroSD up to 256 GB
• Audio: Built-in mic, 1-ch input, 1-ch output
• Alarm: 1-ch input, 1-ch output
• Network: 1x RJ45 10/100M Ethernet
• Power: 12 VDC, PoE (802.3af), max 7.5 W
• Ingress Protection: IP67
• Operating Temperature: -30 °C to 60 °C

Recommendations

For optimal performance, use a PoE switch or injector. Pair with Hikvision NVR for seamless integration. Ensure proper mounting to achieve the desired field of view.
