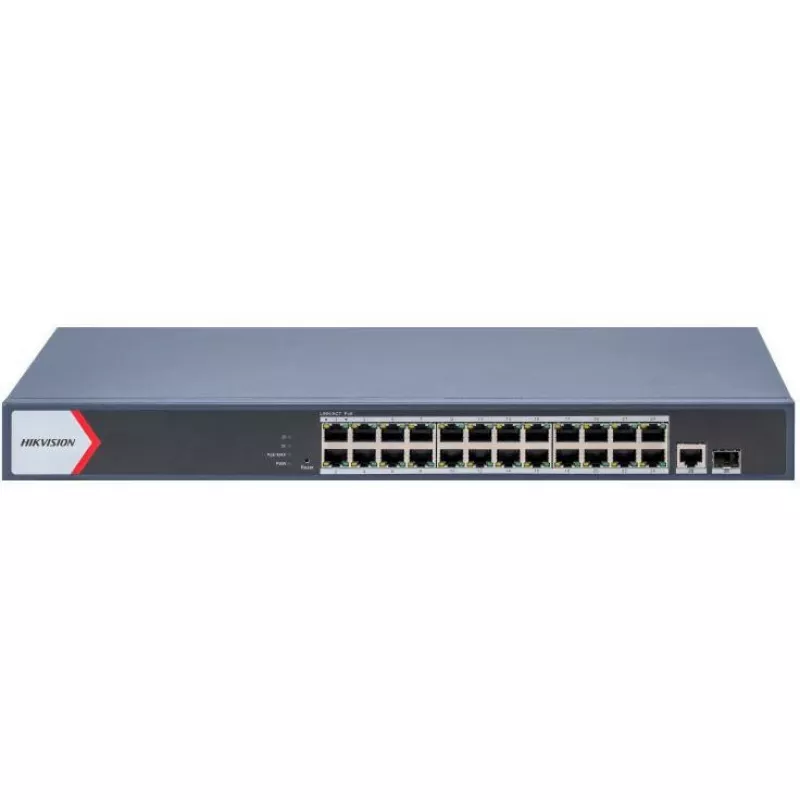

Hikvision DS-3E1526P-EIV2 26-poorts Gigabit PoE+ managed switch met 2 SFP uplinks (370W budget)

The Hikvision DS-3E1526P-EIV2 stands out as a high-density PoE+ managed switch engineered for demanding IP surveillance and converged networks. With 24 Gigabit PoE+ ports and 2 Gigabit SFP uplinks, it delivers a total 370 W power budget—enough to run multiple PTZ cameras, access points, and other powered devices without external injectors. Layer 2 management, robust security, and a fanless design make it a reliable core for small to medium business deployments.

Highlights

• 24× 10/100/1000 Mbps PoE+ ports (IEEE 802.3af/at) with up to 30 W per port
• 2× Gigabit SFP uplink ports for fiber connectivity or switch stacking
• 370 W total PoE power budget for high-density device support
• Layer 2 managed: VLAN, QoS, link aggregation, and Spanning Tree Protocol
• Fanless, rack-mountable 1U design for quiet, reliable operation

In daily use

Deploy this switch in surveillance rooms, retail back offices, or campus networks. Connect IP cameras, wireless APs, and VoIP phones directly to the PoE+ ports—no separate power supplies needed. The two SFP uplinks allow long-distance fiber runs to a core switch or NVR, while advanced management features let you segment traffic, prioritize video streams, and monitor link health via web UI, CLI, or SNMP. Surge protection up to 6 kV on PoE ports guards against electrical spikes, ensuring continuous operation in harsh environments.

Full specifications

• Total ports: 26 (24× Gigabit RJ45 PoE+ + 2× Gigabit SFP)
• PoE standard: IEEE 802.3af/at (PoE/PoE+)
• PoE power budget: 370 W (max 30 W per port)
• Switching capacity: 52 Gbps
• Packet forwarding rate: 38.688 Mpps
• MAC address table: 16K entries
• Jumbo frame support: 10 KB
• Management: Layer 2 managed (Web UI, CLI, SNMP, Telnet)
• VLAN: 802.1Q, port-based
• QoS: Yes, 8 priority queues
• Spanning Tree: STP/RSTP/MSTP
• Link aggregation: LACP
• Power supply: 100–240 VAC, 50/60 Hz
• Operating temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Mounting: Rack-mountable (1U)
• Surge protection: 6 kV on PoE ports

Final note

For integrators and IT managers who need a dependable, high-power PoE+ switch with full management capabilities, the DS-3E1526P-EIV2 delivers performance, flexibility, and peace of mind in a compact 1U form factor.
