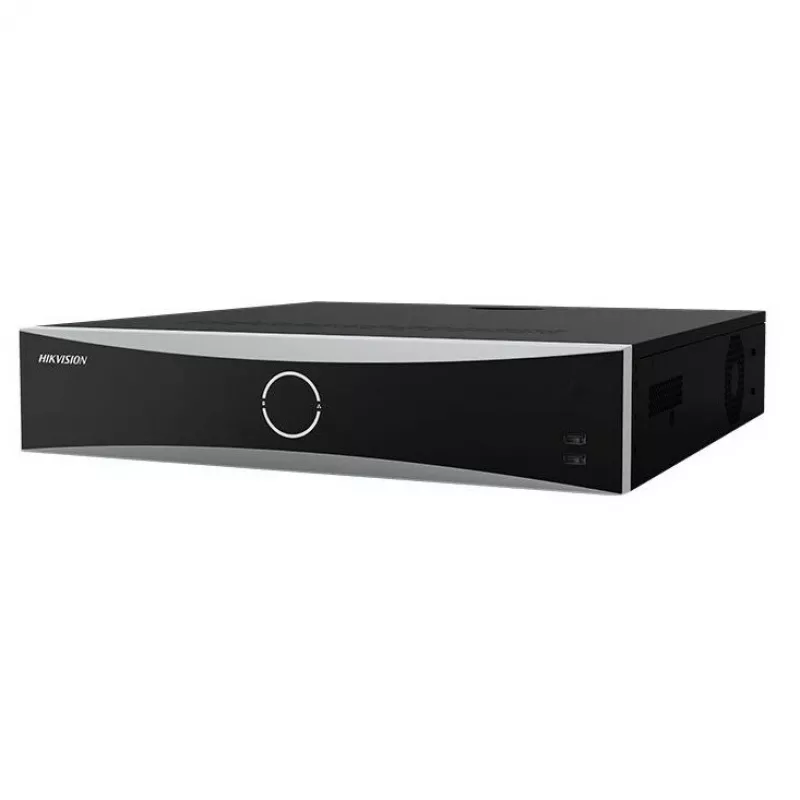

Hikvision DS-7716NXI-I4/S(E)/PL 16-kanaals AcuSense NVR met eSATA

The Hikvision DS-7716NXI-I4/S(E)/PL is a high-performance 16-channel network video recorder (NVR) designed for professional surveillance systems. Featuring AcuSense technology, it delivers intelligent human and vehicle classification to reduce false alarms and enhance security efficiency. With support for up to 4 SATA hard drives (each up to 10 TB) and an eSATA interface, this NVR offers extensive storage capacity for long-term recording. Its powerful decoding capability handles up to 2 channels at 12 MP or 12 channels at 1080p, ensuring crisp video playback. The 1.5U rack-mountable chassis and dual Gigabit Ethernet ports make it ideal for medium to large-scale installations.

Advantages

AcuSense technology significantly reduces false alarms by distinguishing humans and vehicles from other motion. The NVR supports up to 160 Mbps incoming bandwidth and 256 Mbps outgoing bandwidth, ensuring smooth video transmission. With 4 SATA interfaces and eSATA, you can expand storage as needed. The device also offers 1-ch face recognition or 4-ch face detection for advanced analytics.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions
• Government facilities

Key specifications

• 16-channel IP video input
• Incoming bandwidth: 160 Mbps; Outgoing: 256 Mbps
• Decoding: 2-ch@12 MP, 3-ch@8 MP, 6-ch@4 MP, 12-ch@1080p
• 4 SATA interfaces, each up to 10 TB
• 1 eSATA interface
• 2 RJ45 Gigabit Ethernet ports
• HDMI output up to 4K, VGA up to 1080p
• 16 alarm inputs, 4 alarm outputs
• AcuSense: human/vehicle classification
• Smart analytics: Motion Detection 2.0, Perimeter Protection, 1-ch Face Recognition or 4-ch Face Detection
• Power consumption: ≤ 30 W (without HDD)
• Operating temperature: -10 °C to 55 °C

Recommendations

For optimal performance, pair this NVR with Hikvision AcuSense cameras and use high-quality SATA hard drives rated for surveillance. Ensure proper ventilation in the rack to maintain operating temperature.
