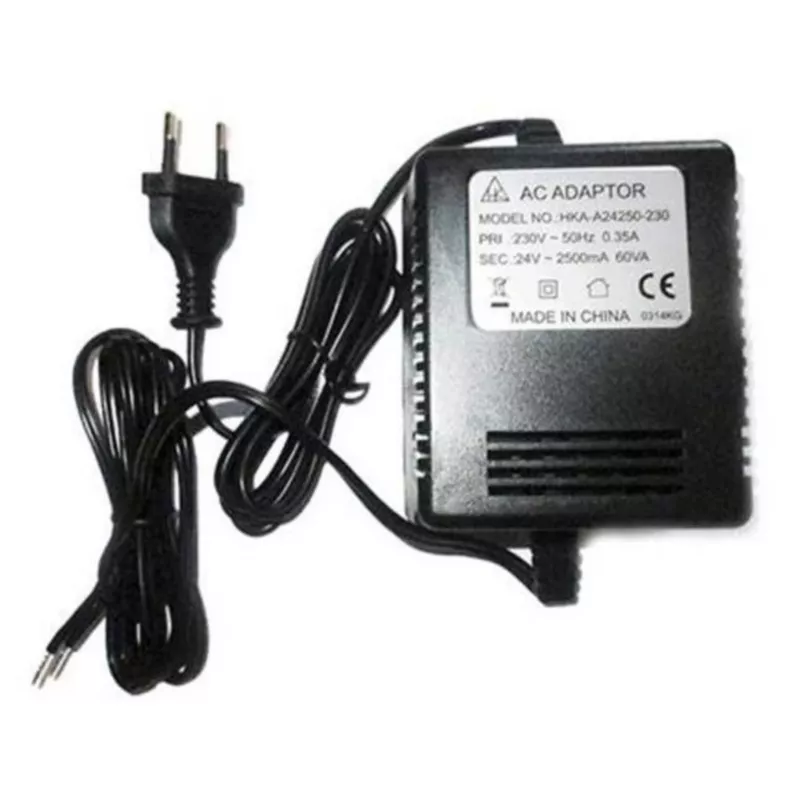

Hikvision HKA-A24250-230 voeding AC 230 V 48W zwart

The Hikvision HKA-A24250-230 is a high-performance power supply unit designed for Hikvision security cameras, DVRs, NVRs, and other compatible 24V DC devices. With a robust 48W output and efficient AC to DC conversion, this power supply ensures reliable and stable operation of your surveillance equipment.

Advantages

This power supply offers a compact and durable design with built-in protection features including over-voltage, over-current, and short-circuit protection. Its high efficiency Level VI rating reduces energy consumption and heat generation, making it an eco-friendly choice for continuous operation.

Suitable for

• Hikvision security cameras
• Hikvision DVRs and NVRs
• Any compatible 24V DC device requiring up to 48W power

Key specifications

• Brand: Hikvision
• Model: HKA-A24250-230
• MPN: HVO1286
• EAN: 6954273607562
• Input Voltage: AC 100-240 V
• Input Frequency: 50/60 Hz
• Output Voltage: DC 24 V
• Output Current: 2 A
• Power Output: 48 W
• Input Plug Type: EU 2-Pin (CEE 7/16)
• DC Connector: 5.5 mm x 2.1 mm barrel plug, center positive
• Color: Black
• Protection: Over-voltage, over-current, short-circuit
• Efficiency Level: VI
• Operating Temperature: -10°C to 40°C
• Storage Temperature: -20°C to 60°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Certifications: CE, FCC, RoHS
• Output Cable Length: Approx. 1.2 m
• Housing Material: ABS Plastic

Recommendations

For optimal performance, use only with compatible Hikvision devices or other equipment that requires a 24V DC power supply with a 5.5 mm x 2.1 mm barrel connector. Ensure the total power consumption of connected devices does not exceed 48W.
