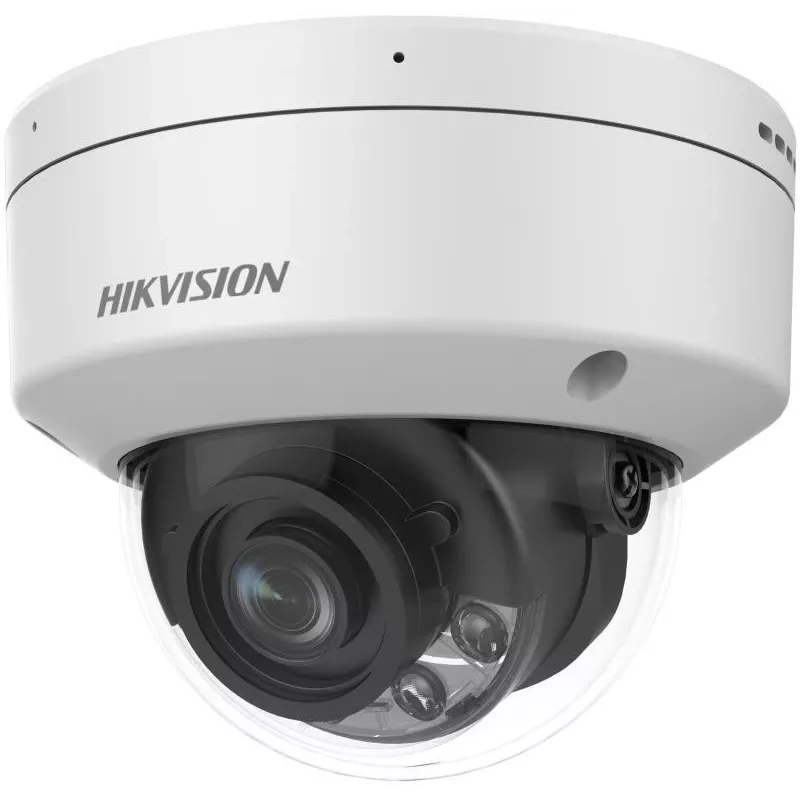

Hikvision iDS-2CD7D87G0-XS(2.8mm)(O-STD) DeepinViewX IP-camera, 2,8 mm

The Hikvision iDS-2CD7D87G0-XS(2.8mm)(O-STD) is a DeepinViewX IP camera designed for demanding installations such as perimeter protection of large industrial plants and warehouses, critical infrastructure monitoring, campus and parking security, and city surveillance. It features advanced AI functions for fast event identification and reduced false alarms.

Key features

• DeepinViewX series
• 1/1.8" CMOS progressive scan sensor
• Max. resolution 3840 × 2160
• 2.8 mm fixed lens
• Hybrid supplement light: IR and white light, range up to 40 m
• IR wavelength 850 nm
• HEOP open resources
• Deep Learning frameworks: Caffe, TensorFlow, PaddlePaddle, ONNX
• Target cropping
• ROI: 4 fixed areas per stream
• Audio: mono, multiple compression formats
• Network storage: NAS NFS, SMB/CIFS, ANR

Specifications

• Model: iDS-2CD7D87G0-XS(2.8mm)(O-STD)
• Image sensor: 1/1.8" CMOS, progressive scan
• Max. resolution: 3840 × 2160
• Min. illumination: Color: 0.0005 Lux @ F1.0, AGC ON; B/W: 0.0001 Lux @ F1.0, AGC ON; 0 Lux with IR
• Shutter time: 1 s to 1/100 000 s
• Day/Night: IR cut filter, Blue Glass module to reduce ghosting
• Camera adjustment: Pan: 0°–355°; tilt: 0°–75°; rotate: 0°–355°
• Lens: 2.8 mm, horizontal FOV 108.8°, vertical 56.4°, diagonal 134.3°
• Aperture: F1.0, fixed
• DORI: 2.8 mm: D: 89.2 m; O: 35.4 m; R: 17.8 m; I: 8.9 m
• Supplement light: Hybrid IR and white light, range up to 40 m
• Smart Supplement Light: Yes
• IR wavelength: 850 nm
• HEOP: Memory: 40 MB; Smart RAM: 350 MB; eMMC: 1 GB
• Computing power: 1.5 TOPS
• HEOP 2.0 OpendevSDK
• Deep Learning frameworks: Caffe, TensorFlow, PaddlePaddle, ONNX
• Programming language: C++
• Main stream 50 Hz: 25 fps: 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720
• Main stream 60 Hz: 30 fps: 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720
• Sub-stream 50 Hz: 25 fps: 704 × 576, 640 × 480
• Sub-stream 60 Hz: 30 fps: 704 × 480, 640 × 480
• Third stream 50 Hz: 25 fps: 1920 × 1080, 1280 × 720, 704 × 576, 640 × 480
• Third stream 60 Hz: 30 fps: 1920 × 1080, 1280 × 720, 704 × 480, 640 × 480
• Fourth stream 50 Hz: 25 fps: 704 × 576, 640 × 480
• Fourth stream 60 Hz: 30 fps: 704 × 480, 640 × 480
• Fifth stream 50 Hz: 25 fps: 704 × 576, 640 × 480
• Fifth stream 60 Hz: 30 fps: 704 × 480, 640 × 480
• Video compression: Main: H.265/H.264/H.264+/H.265+; sub-stream: H.265/H.264/MJPEG; third: H.265/H.264; fourth and fifth: H.265/H.264/MJPEG
• Video bitrate: 32 Kb/s to 16 Mb/s
• H.264 type: Baseline profile, main profile, high profile
• H.265 type: Main profile
• Bitrate control: CBR/VBR
• SVC: H.264 and H.265
• Target cropping: Yes
• ROI: 4 fixed areas for each stream
• Audio type: Mono
• Audio compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio bitrate: 64 Kb/s G.711; 16 Kb/s G.722.1; 16 Kb/s G.726; 32–192 Kb/s MP2L2; 8–320 Kb/s MP3; 16–64 Kb/s AAC-LC
• Sampling rate: 8/16/32/44.1/48 kHz
• Environmental noise filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
• Simultaneous live view: Up to 20 channels
• API: Open Network Video Interface: profile S, G, T; ISAPI, SDK, ISUP
• Users: Up to 32 users; administrator, operator, user
• Security: Password protection, HTTPS, 802.1X, EAP-TLS, EAP-LEAP, EAP-MD5, watermark, IP filtering, WSSE, RTP/RTSP over HTTPS, audit log, TLS 1.2, TLS 1.3
• Network storage: NAS NFS, SMB/CIFS, ANR, memory card encryption and health detection with compatible Hikvision cards
