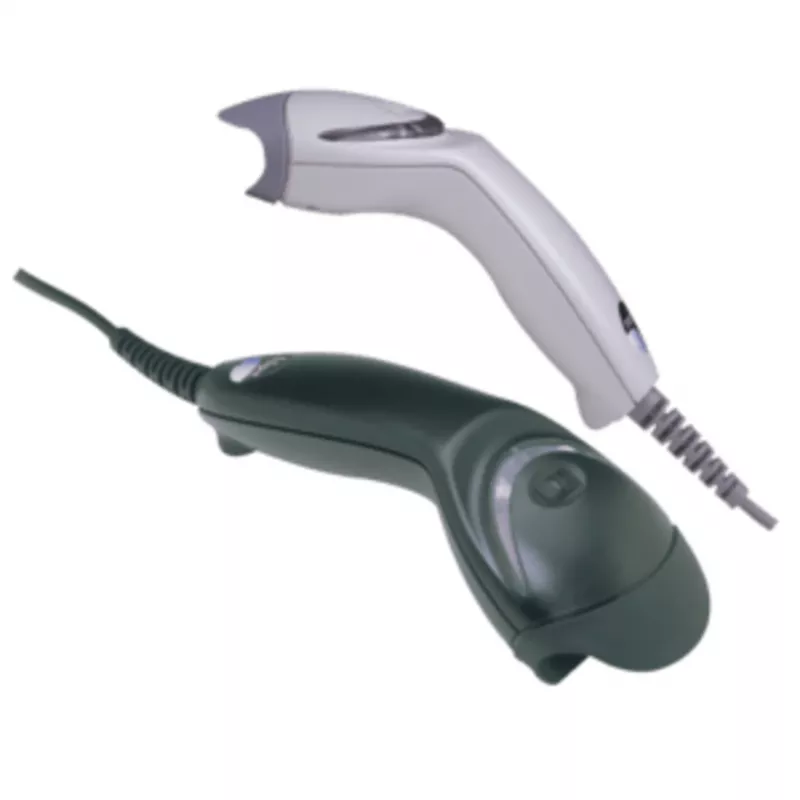

HONEYWELL 5145 Eclipse handheld laser barcodescanner - USB - zwart (MS5145-41-3-EU)

The HONEYWELL 5145 Eclipse is a reliable handheld laser barcode scanner designed for fast and accurate 1D barcode scanning in retail, warehouse, and office environments. With its single-line scan pattern and 72 scans per second, it ensures efficient data capture. The scanner connects via USB for easy plug-and-play setup and is built to withstand drops from up to 1.5 meters.

Advantages

High-speed scanning at 72 scans per second ensures quick and accurate barcode reading. The durable design withstands drops from 1.5 meters, reducing downtime. USB connectivity provides simple integration with most systems. The visible laser diode and 35% minimum print contrast allow reading of poorly printed or damaged barcodes.

Suitable for

• Retail point-of-sale (POS) systems
• Warehouse inventory management
• Office asset tracking
• Library and document management

Key specifications

• Scanner Type: Handheld Laser Barcode Scanner
• Scan Pattern: Single-line
• Scan Speed: 72 scan lines per second
• Light Source: 650 nm Visible Laser Diode
• Minimum Print Contrast: 35%
• Decode Capabilities: 1D Barcodes (UPC/EAN, Code 39, Code 128, Interleaved 2 of 5, etc.)
• Connectivity Technology: Wired
• Host System Interface: USB
• Drop Specification: Withstands 1.5 m (5 ft) drops
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity: 5% to 95% relative humidity, non-condensing
• Input Voltage: 5 VDC ± 0.25 V
• Power Consumption (Operating): 675 mW
• Power Consumption (Standby): 425 mW
• Depth of Field (13 mil UPC/EAN): 0 mm - 140 mm (0 in - 5.5 in)
• Indicators: Beeper, LED
• Color: Black

Recommendations

For optimal performance, use the scanner with a compatible USB port and ensure the barcode is within the depth of field. The scanner is ideal for high-volume scanning tasks where reliability and speed are critical.
