HP Pba-Main M4530Nx C4N 6L hoofdbord PBA 155

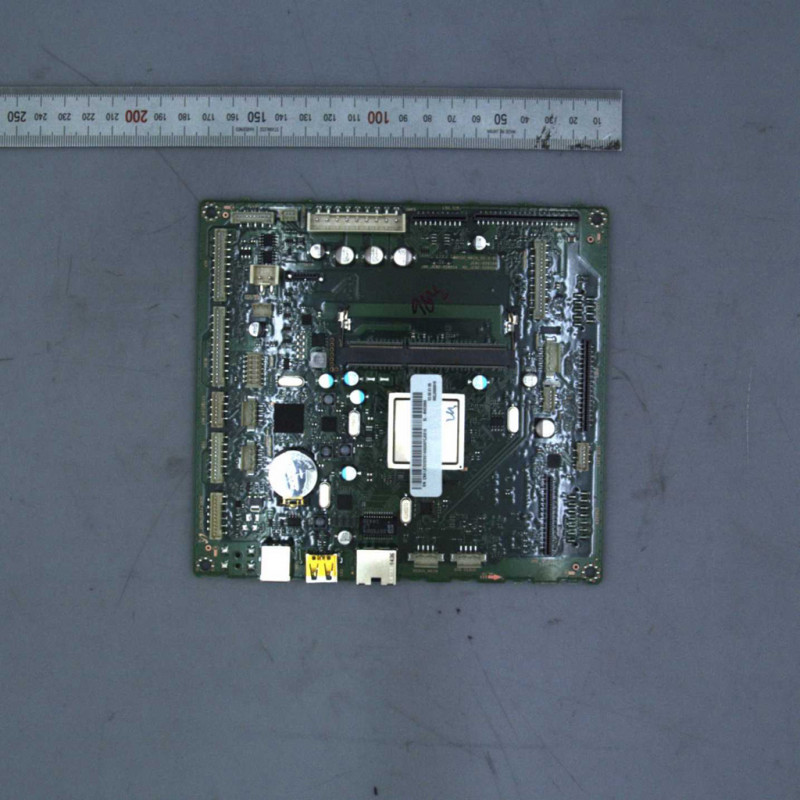

In a busy office environment, the HP LaserJet Enterprise M4530 MFP is a workhorse, handling high-volume printing, scanning, copying, and faxing. When the main formatter board fails, the entire device becomes unresponsive, disrupting workflow. This HP PBA Main Formatter Board (JC92-02801A) restores full functionality, ensuring your MFP operates reliably once again. It is the central logic board that controls all printer operations, data processing, network communication, and user interface functions.

Key specifications

• Product Type: Main Formatter Board / Main Logic Board
• Compatibility: HP LaserJet Enterprise M4530 MFP Series
• Board Type: Printed Board Assembly (PBA)
• Connectivity Ports: Ethernet (RJ-45), USB Host, USB Device, Control Panel Connector, Fax Line (model dependent)
• Network Protocols Supported: TCP/IP, IPv4/IPv6, SNMP, HTTP, HTTPS, FTP, LPD, IPP, WSD
• Printer Functions Supported: Print, Scan, Copy, Fax (functionality dependent on specific M4530 MFP model)
• Material: FR-4 PCB with integrated circuits and surface-mount components
• Status Indicators: Typically includes LED indicators for power and network activity

Why choose it

This genuine HP part ensures perfect compatibility and reliable performance. It is designed to meet HP's stringent quality standards, offering a long service life and stable operation. Professional installation is recommended to guarantee proper calibration and avoid damage to the printer.

Ideal use cases

• Replacing a faulty main board in an HP LaserJet Enterprise M4530 MFP
• Restoring network connectivity and printing functions
• Maintaining a fleet of HP MFPs in an enterprise environment

Good to know

Installation requires technical expertise; it is advisable to have a qualified technician perform the replacement. The board receives power from the printer's internal power supply unit and stores firmware and settings. Ensure the printer is disconnected from power before installation.
