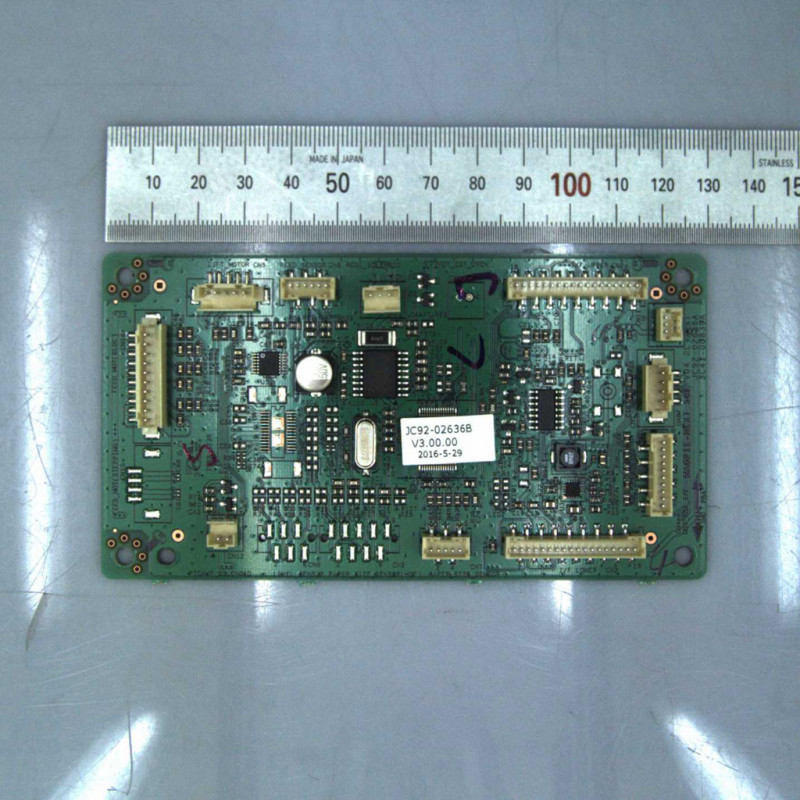

HP PBA Option-SCF C3010 C3060 FR4 2L 13

Engineered on a robust FR4 substrate with a 2-layer construction, this HP PBA Option-SCF board delivers reliable signal integrity and thermal performance for demanding large-format printing environments. Designed as an internal option/control board, it integrates seamlessly with HP DesignJet C3010 and C3060 series printers, ensuring precise coordination of print functions and system management.

Overview

The HP PBA Option-SCF C3010 C3060 FR4 2L 13 is a printed circuit board assembly (PBA) built to HP's exacting standards. Its FR4 flame-retardant material provides excellent mechanical strength and electrical insulation, while the 2-layer layout balances cost-efficiency with sufficient routing for control signals. The board features multi-pin connectors for data, power, and ribbon cables, enabling robust communication with printer subsystems. Integrated ESD protection safeguards sensitive components from electrostatic discharge, and RoHS compliance ensures environmental responsibility.

What stands out

• Optimized for HP DesignJet C3010/C3060: Guaranteed compatibility with specific large-format printer models, reducing integration risks.
• Durable FR4 substrate: Flame-retardant material withstands thermal stress and provides long-term reliability.
• 2-layer PCB design: Efficient routing for control functions while maintaining signal integrity.
• Integrated ESD protection: Protects against electrostatic damage during handling and operation.
• Wide operating temperature range: Functions reliably from 5°C to 40°C, suitable for various office and production environments.

Technical details

• Product Type: Printed Circuit Board Assembly (PBA)
• Brand Compatibility: HP
• Model Compatibility: HP DesignJet C3010 Series, HP DesignJet C3060 Series
• Board Material: FR4 (Flame Retardant 4)
• PCB Layers: 2-Layer
• Component Function: Option/Control Board for Printer Systems
• Revision/Variant Identifier: 13
• Mounting Type: Internal chassis mounting via screws/standoffs
• Connectivity: Multi-pin connectors for data, power, and ribbon cables
• Power Requirement: Low voltage DC (e.g., 5V, 12V) supplied by printer PSU
• ESD Protection: Integrated electrostatic discharge protection
• RoHS Compliance: Yes
• Operating Temperature: 5°C to 40°C (41°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity Range: 10% to 80% RH (non-condensing)

Our verdict

A genuine HP control board that ensures your DesignJet C3010 or C3060 printer operates at peak performance. With its robust FR4 construction and precise engineering, it's the dependable choice for maintaining high-volume print workflows.
