HP smartcardlezer - voor EliteBook 2570p

Secure your EliteBook 2570p with an internal smart card reader that handles ISO 7816 Class A, B, and C cards at up to 420 Kbps. This module integrates directly into the notebook, providing hardware-level authentication for enterprise environments.

Overview

The HP Smart Card Reader (685503-001) is a dedicated internal module engineered for the HP EliteBook 2570p. It enables secure access to networks, encrypted data, and digital signatures using standard smart card technology. With support for T=0 and T=1 protocols and PC/SC compliance, it works seamlessly with Windows and Linux systems.

What stands out

• Supports ISO 7816 Class A, B, C smart cards (5V, 3V, 1.8V) for broad compatibility.
• EMVCo Level 1 certified for secure payment and identity applications.
• Integrated LED indicator shows card presence and activity at a glance.
• Hot-plug support allows inserting or removing cards without rebooting.
• Durable design rated for 100,000 card insertions.

Technical details

• Interface: Internal motherboard connector (ribbon cable or integrated).
• Card slot: Single friction contact slot.
• Data transfer rate: Up to 420 Kbps.
• Supported protocols: T=0, T=1.
• Standards: PC/SC, EMVCo Level 1.
• Power: Host-powered, no external adapter needed.
• OS support: Windows XP/Vista/7/8/10, Linux.

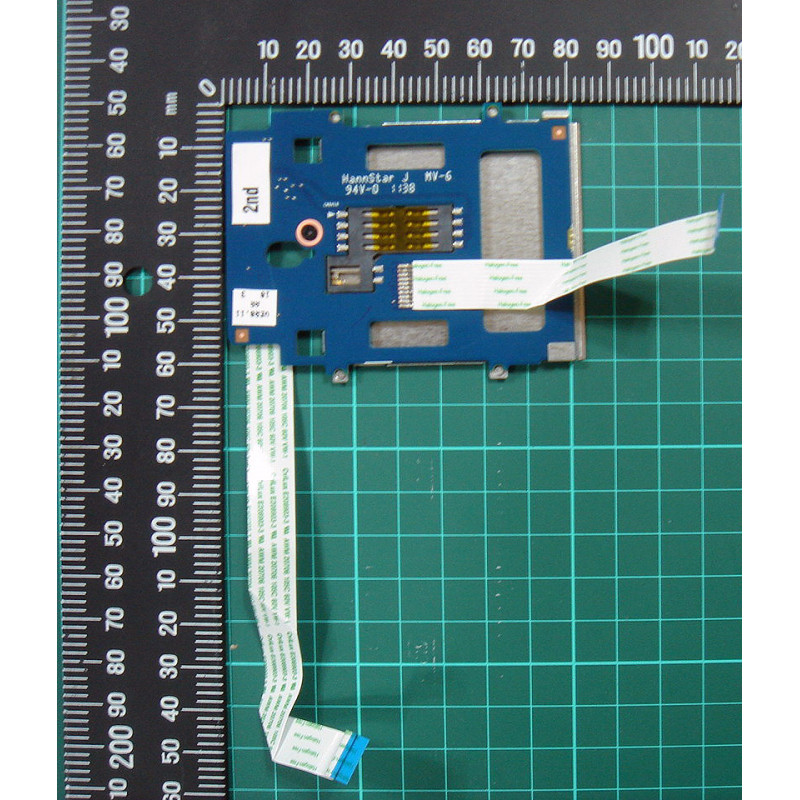

• Form factor: Small internal PCB module.

Our verdict

A reliable and secure smart card solution for the EliteBook 2570p, offering enterprise-grade authentication with minimal power draw. Ideal for government, healthcare, and corporate deployments.
