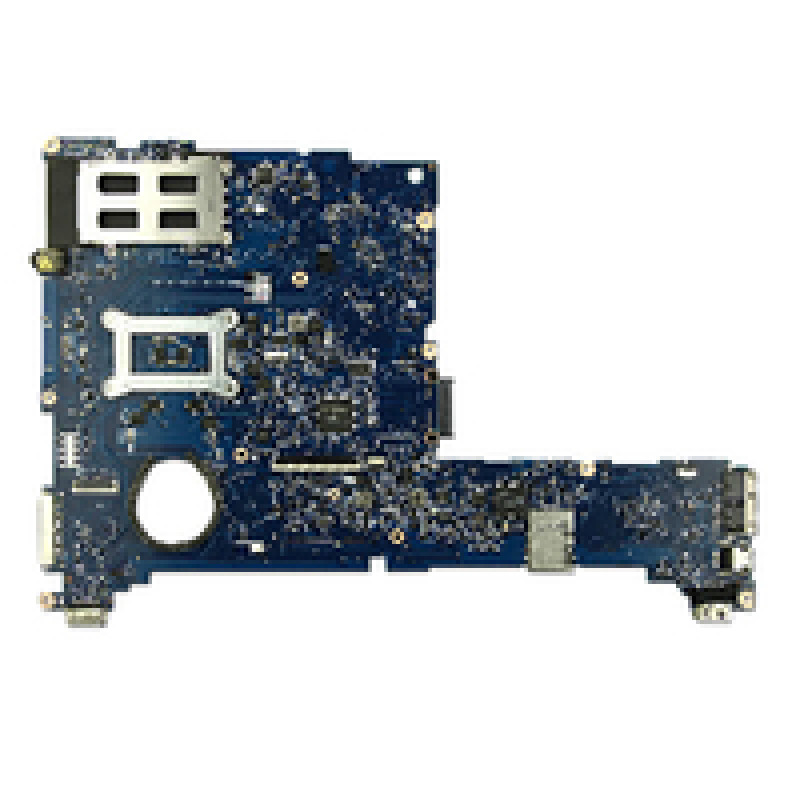

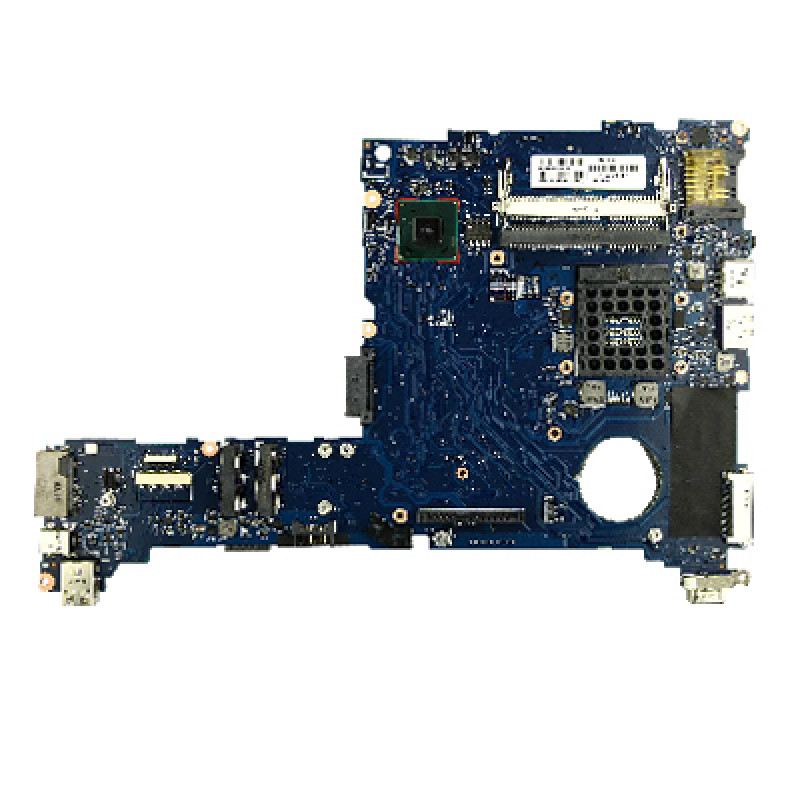

HP systeembord - moederbord - HP - EliteBook 2570p

Laptop system board engineered for the HP EliteBook 2570p, delivering a stable foundation with Intel QM77 chipset and support for 3rd generation Intel Core processors. Its dual SODIMM slots accept up to 16 GB of DDR3-1600 memory, while integrated Intel HD Graphics 4000 and multiple display outputs keep productivity fluid.

Advantages

Proprietary design ensures a precise fit and reliable connection to all internal components of the EliteBook 2570p. The mSATA slot enables optional SSD caching for faster boot and application load times. SATA III and USB 3.0 support provide high-speed data transfers, and the Gigabit Ethernet controller maintains dependable wired networking.

Suitable for

• Replacing a failed motherboard in an HP EliteBook 2570p
• IT service providers refurbishing business laptops
• System builders assembling a compact 12.5-inch business notebook
• Users needing a board compatible with Intel Core i3/i5/i7 Ivy Bridge CPUs

Key specifications

• Socket G2 (rPGA 988B) for Intel Core i3/i5/i7 (3rd Gen)
• Mobile Intel QM77 Express chipset
• 2 x SODIMM slots, DDR3-1600, max 16 GB
• Integrated Intel HD Graphics 4000 (processor dependent)
• SATA III for 2.5-inch HDD/SSD, 1 x mSATA slot
• Mini PCIe slot for WLAN module
• USB 3.0 and USB 2.0 connectors
• DisplayPort and VGA outputs
• Integrated Gigabit Ethernet and HD audio

Recommendations

Verify the exact board revision before installation. Use only compatible DDR3 SODIMM modules and ensure proper thermal paste application when reusing the original heatsink. A clean BIOS update after installation is recommended for optimal hardware recognition.
