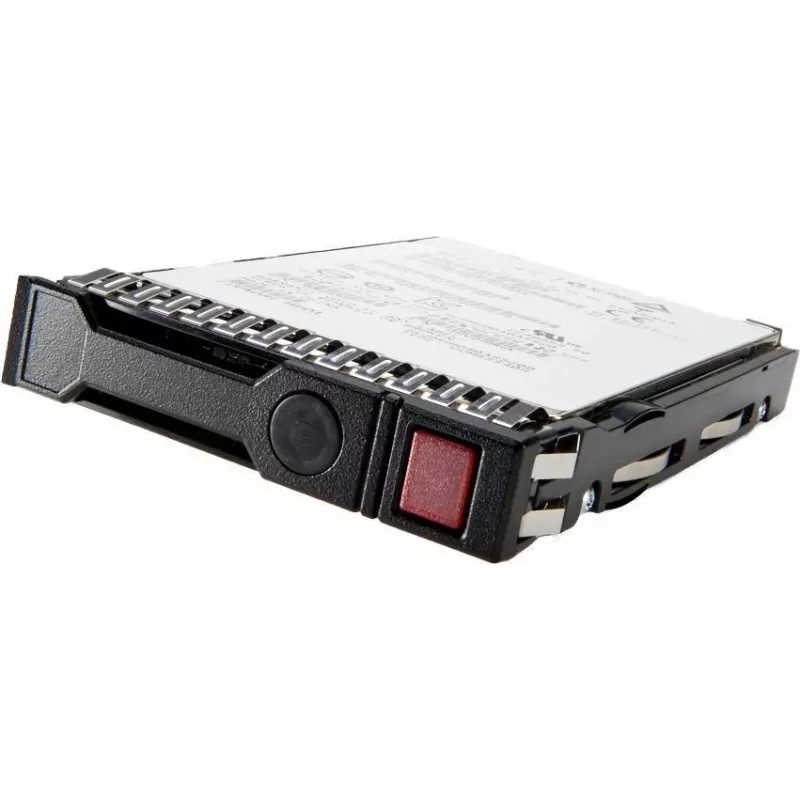

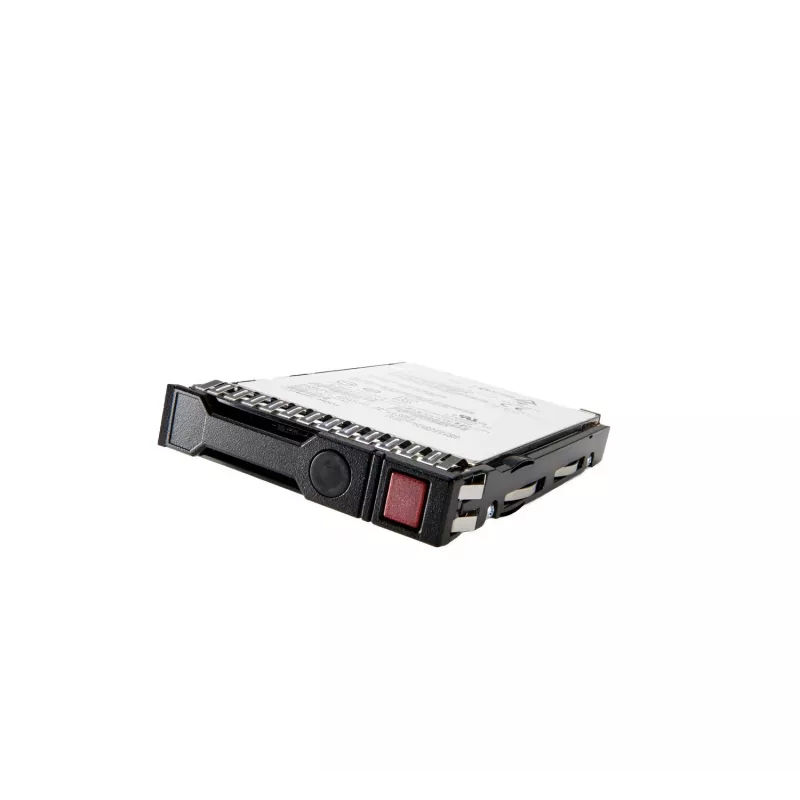

HPE 480GB SATA 6G read intensive SFF smart carrier SSD (PM893) P47810-B21

Built around Samsung's PM893 architecture and tuned for read-intensive workloads, this HPE 480GB SATA SSD delivers consistent low-latency performance for boot, web serving, and data logging in ProLiant Gen10, Gen10 Plus, and Gen11 environments. The Smart Carrier (SC) design simplifies drive identification and servicing, while the 2.5-inch Small Form Factor fits dense server chassis without adapters.

Highlights

• 480GB capacity with 3D TLC NAND for balanced endurance and cost
• SATA 6Gb/s interface with up to 560 MB/s sequential reads and 530 MB/s writes
• Read-intensive endurance rated at 1 DWPD for 5 years
• HPE Smart Carrier for instant status LEDs and tool-less hot-swap
• 2 million hour MTBF and 3-year limited warranty

In daily use

In virtualized hosts and scale-out storage nodes, the PM893's read-optimized firmware keeps response times low even under mixed I/O. Hot-plug support means failed drives can be replaced without downtime, and the carrier's "do not remove" LED prevents accidental pulls during rebuilds. Power draw stays around 2.8W active, reducing cooling load in dense racks.

Full specifications

• Capacity: 480 GB
• Form factor: 2.5-inch SFF
• Interface: SATA 6Gb/s
• NAND flash: 3D TLC
• Endurance type: Read Intensive (RI)
• Sequential read: up to 560 MB/s
• Sequential write: up to 530 MB/s
• Random read (4KB): up to 98,000 IOPS
• Random write (4KB): up to 30,000 IOPS
• DWPD: 1 (5-year rating)
• MTBF: 2,000,000 hours
• Power consumption (active): 2.8 W
• Hot-plug support: Yes
• Carrier type: HPE Smart Carrier (SC)
• Operating temperature: 0°C to 70°C
• Warranty: 3-year limited

Final note

For HPE server fleets that need dependable read-centric storage without overpaying for write endurance, this PM893-based drive offers the right mix of performance, carrier intelligence, and lifecycle support.
