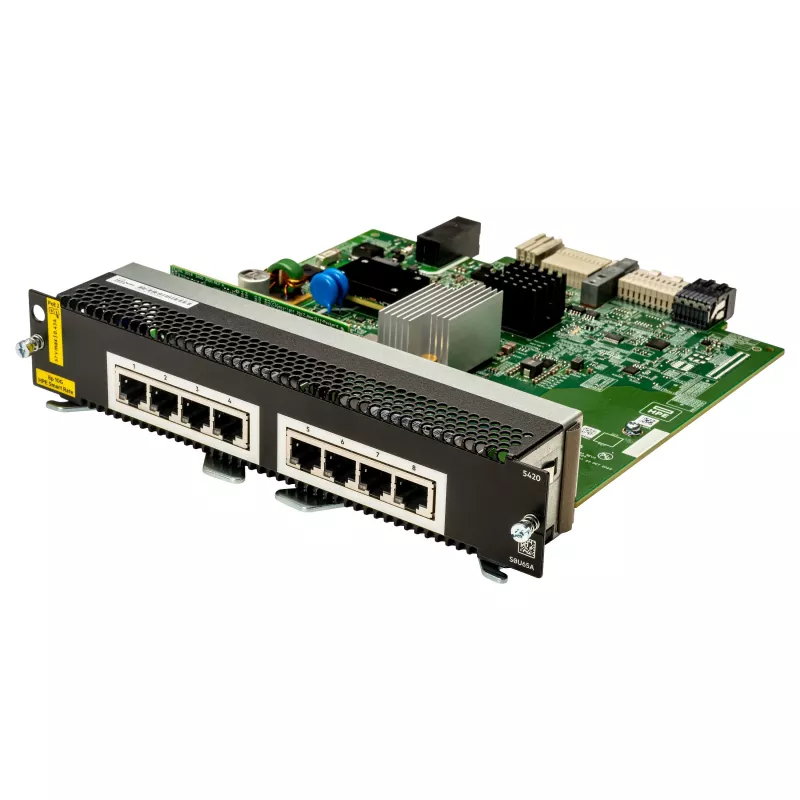

HPE Aruba Networking CX 5420 8-poorts Smart Rate 1G/2,5G/5G/10G Class 8 PoE-module

High-density Power over Ethernet (PoE) demands can quickly outpace the capabilities of standard switching modules. The HPE Aruba Networking CX 5420 8-Port Smart Rate 1G/2.5G/5G/10G Class 8 PoE Module addresses this by delivering up to 90W per port across eight multi-gigabit ports, enabling you to power the latest Wi-Fi 6/6E access points, high-performance cameras, and IoT devices directly from your Aruba 5400R zl2 switch series.

Who is it for

Ideal for enterprise networks, educational campuses, and hospitality environments that require high-bandwidth connections and robust PoE delivery to support advanced wireless and IoT deployments. This module is specifically designed for the HPE Aruba 5400R zl2 switch series, providing a seamless upgrade path to multi-gigabit speeds and Class 8 PoE.

Main features

• Eight RJ-45 ports supporting 1G, 2.5G, 5G, and 10G Ethernet speeds for flexible connectivity
• IEEE 802.3bt Type 4 (Class 8) PoE with up to 90W per port, ideal for high-power devices
• Hot-swappable plug-in module for easy installation and maintenance without network downtime
• Jumbo frame support up to 9220 bytes for enhanced network efficiency
• Managed via ArubaOS-CX, offering advanced Layer 2 and Layer 3 features

Specifications

• Ports: 8 x 1G/2.5G/5G/10GBASE-T RJ-45
• PoE Standard: IEEE 802.3bt Type 4 (Class 8)
• Max PoE Power per Port: Up to 90W
• Network Technology: 10 Gigabit Ethernet (Multi-Gigabit)
• Compatibility: HPE Aruba 5400R zl2 Switch Series
• Module Type: Line Card / Expansion Module
• Hot Swappable: Yes
• Jumbo Frame Support: Yes (up to 9220 bytes)
• Management: Managed (via ArubaOS-CX)
• Layer Support: Layer 2 / Layer 3
• LED Indicators: Link/Activity, PoE Status
• Data Transfer Rate: 10 Gbps (per port max)
• Form Factor: Plug-in module
• Compliance Standards: IEEE 802.3, 802.3ab, 802.3ae, 802.3at, 802.3bt, 802.3bz
• Power over Ethernet (PoE) Class: Class 8
• Ethernet Speed: 1000 Mbps, 2.5 Gbps, 5 Gbps, 10 Gbps
• Connector Type: RJ-45
• Product Family: Aruba CX 5400R

Tips

Ensure your switch is running a compatible ArubaOS-CX version to fully support the Class 8 PoE capabilities. For optimal performance, use high-quality Cat6a or Cat7 cabling to handle 10G speeds over longer distances.
