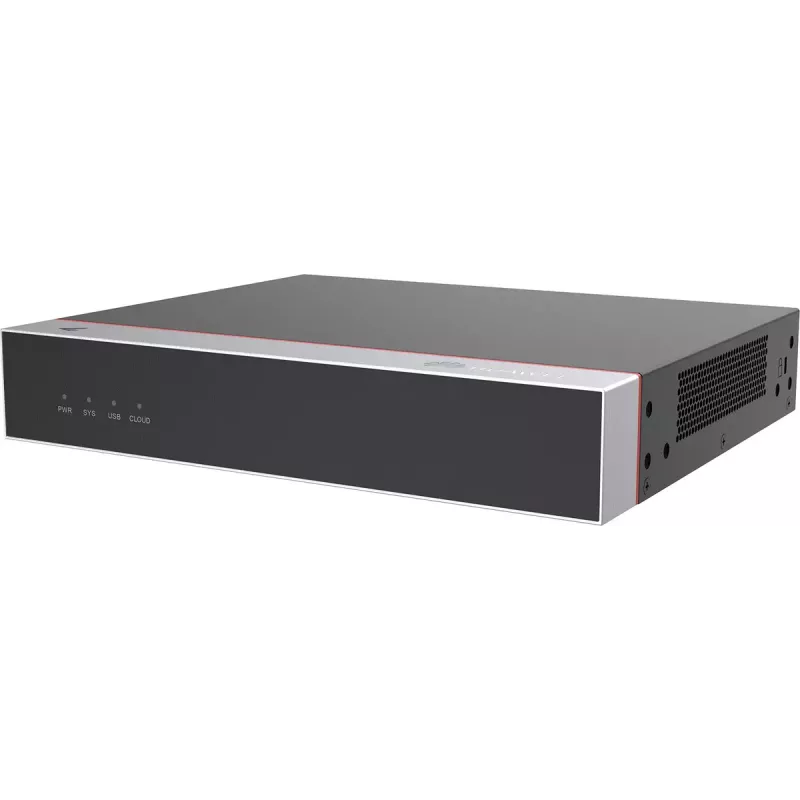

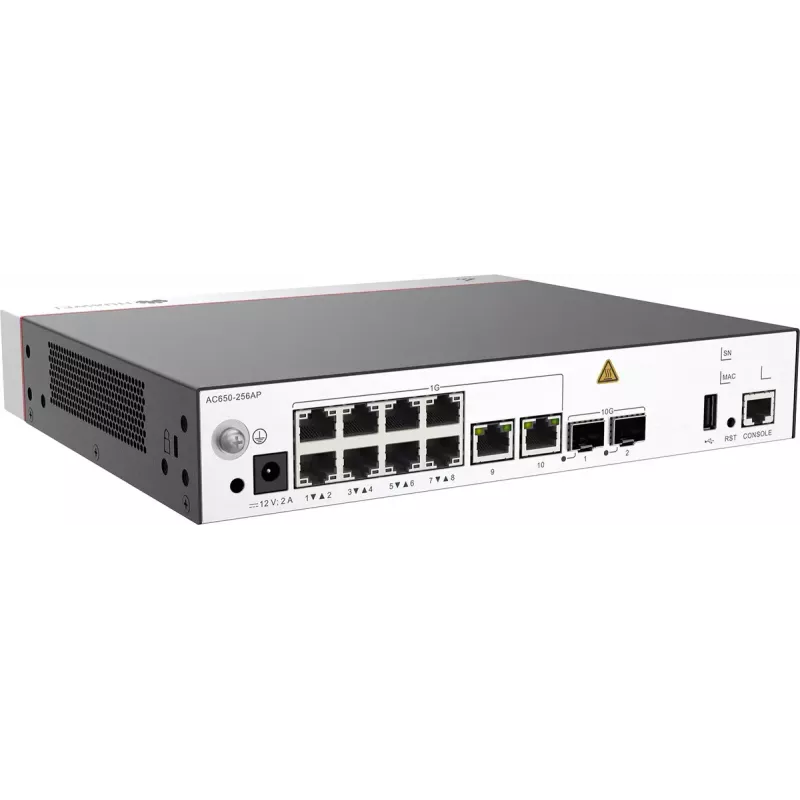

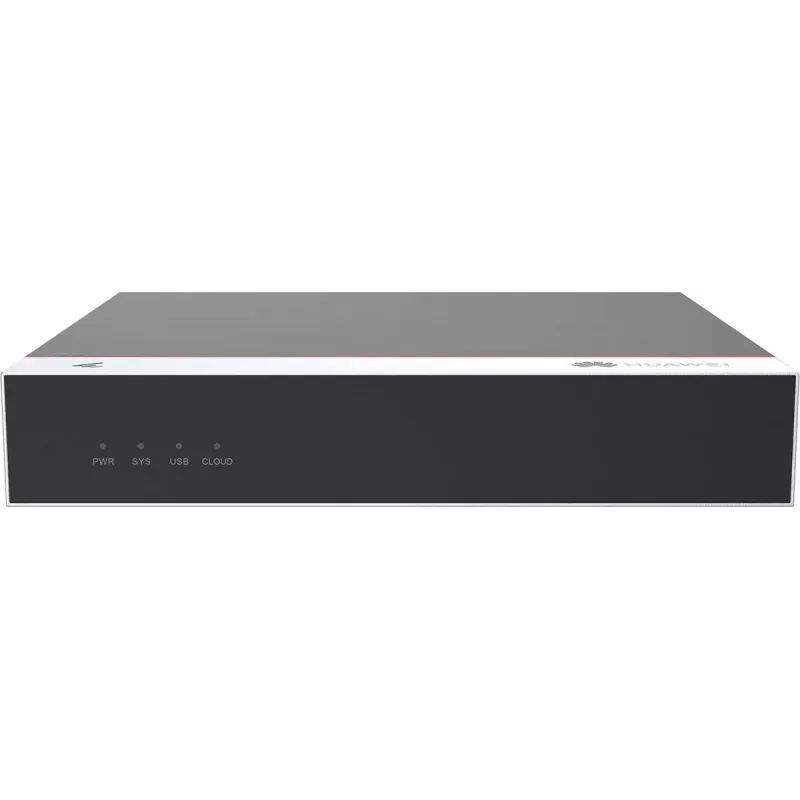

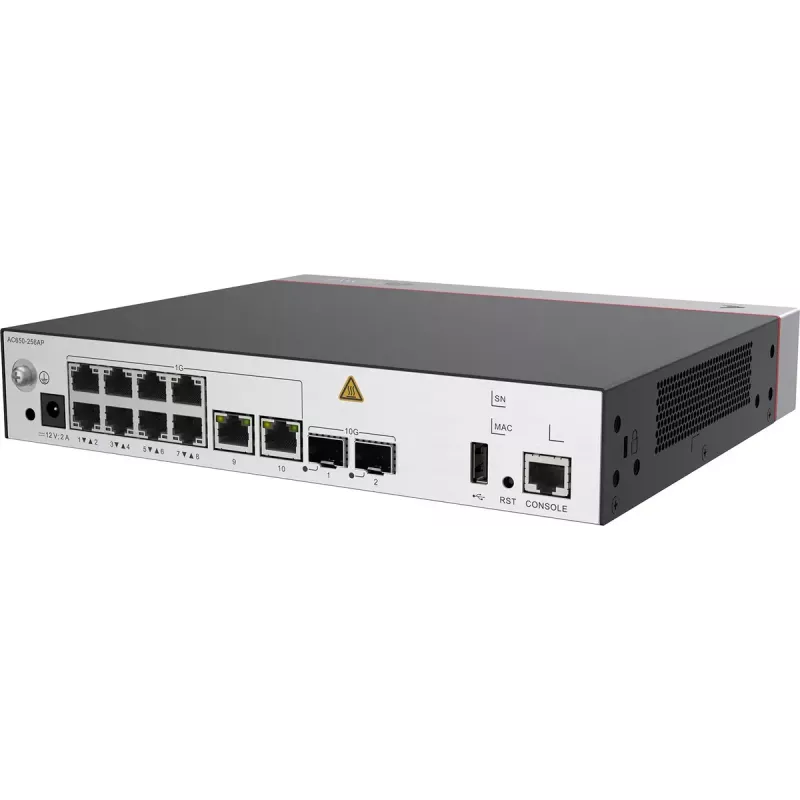

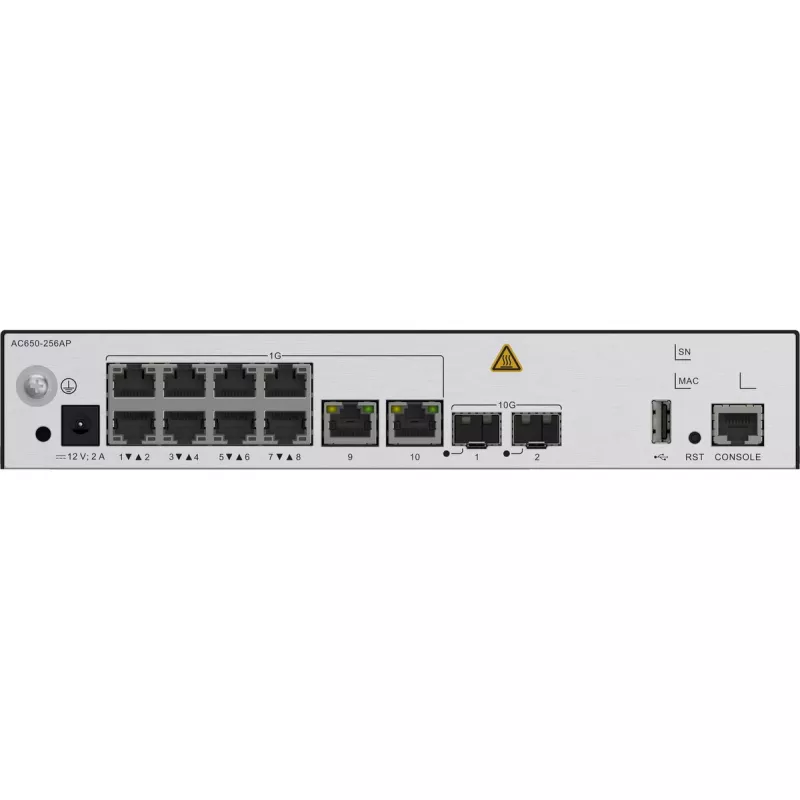

HUAWEI eKit AC600 Series AC650-256AP Netwerk-gateway/controller 10/100/1000 Mbit/s

The HUAWEI eKit AC600 Series AC650-256AP is a compact wireless access controller designed for SOHO and small-to-medium enterprise deployments. It manages up to 256 access points and integrates a Gigabit Ethernet switch function to provide unified wired and wireless access. The device supports 10/100/1000 Mbit/s Ethernet, has a forwarding rate of 10000 Mpps, an RJ-45 console port and a compact footprint (250 mm x 210 mm x 43.6 mm) with a maximum power consumption of 21 W and 12 V input voltage.

Advantages

The AC650-256AP offers centralized management of wireless networks with high scalability, allowing flexible configuration of the number of managed APs. Its integrated GE switch capability simplifies deployment by combining wired and wireless access in one device, while the compact design and low power consumption make it suitable for constrained spaces.

Suitable for

• Small and medium campus networks
• Enterprise office networks
• Wireless metropolitan area networks (MANs)
• Hotspot coverage networks

Key specifications

• Model: AC650-256AP (HUAWEI eKit AC600 Series)
• Maximum managed APs: 256
• Ethernet rates: 10/100/1000 Mbit/s
• Forwarding rate: 10000 Mpps
• Console port: RJ-45
• Dimensions: 250 mm x 210 mm x 43.6 mm
• Power input: 12 V
• Maximum power consumption: 21 W
• Brand: HUAWEI eKit
• MPN: AC650-256AP
• EAN: 6901443425372

How to use

Install the AC650-256AP in a well-ventilated location and connect it to the network core using its Gigabit Ethernet ports. Use the RJ-45 console port or web/CLI management interfaces to perform initial configuration, add and authorize access points, and define SSIDs, security policies and VLAN settings. Monitor device status and managed APs through the controller’s management interface and apply firmware updates as needed.

Recommendations

Place the controller near the network aggregation point to minimize cable runs, ensure proper ventilation to maintain operating temperature, and back up configurations regularly. For larger deployments, plan AP capacity and radio coverage to match the AC650-256AP’s 256-AP limit and consider redundant management or higher-capacity controllers if required.
