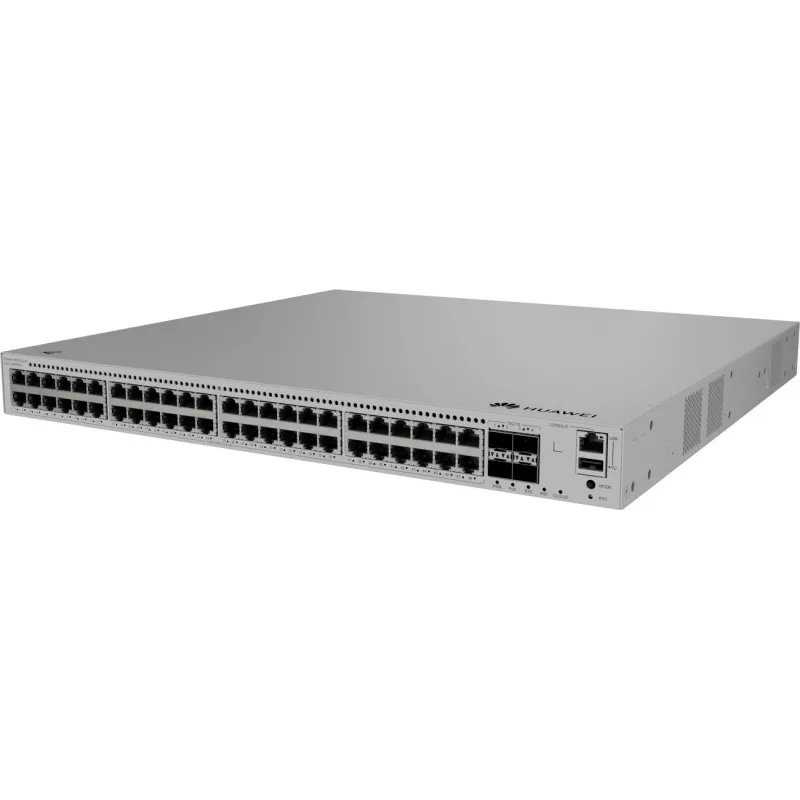

Huawei eKitEngine S310 Series S310-48PN4X Switch - 48 x 10/100/1000/2.5G (PoE+)

The Huawei eKitEngine S310 Series S310-48PN4X is a high-performance managed switch designed for enterprise networks, offering 48 ports of 10/100/1000/2.5G with PoE+ support. This switch provides reliable connectivity and power to devices such as IP cameras, wireless access points, and VoIP phones, making it ideal for small to medium-sized businesses and campus networks.

Advantages

With its 48 PoE+ ports, the S310-48PN4X simplifies deployment by delivering both data and power over a single Ethernet cable, reducing cabling costs and installation time. The 2.5G uplink ports ensure high-speed connectivity to the core network, supporting bandwidth-intensive applications. Energy-efficient design and fanless operation in some models contribute to lower power consumption and silent operation.

Suitable for

• Enterprise access layer networks
• Small and medium-sized businesses
• Campus networks
• Surveillance systems with PoE cameras
• Wireless LAN deployments with PoE access points

Key specifications

• 48 x 10/100/1000/2.5G PoE+ ports
• 4 x 10GE SFP+ uplink ports
• PoE+ budget: up to 740W
• Switching capacity: 176 Gbps
• Forwarding rate: 132 Mpps
• Layer 3 routing capabilities
• VLAN, QoS, STP, RSTP, MSTP support
• AC power supply

Recommendations

For optimal performance, pair this switch with Huawei's eKitEngine series core switches and use Category 6a or higher cabling for 2.5G connectivity. Ensure adequate ventilation for PoE operation.
