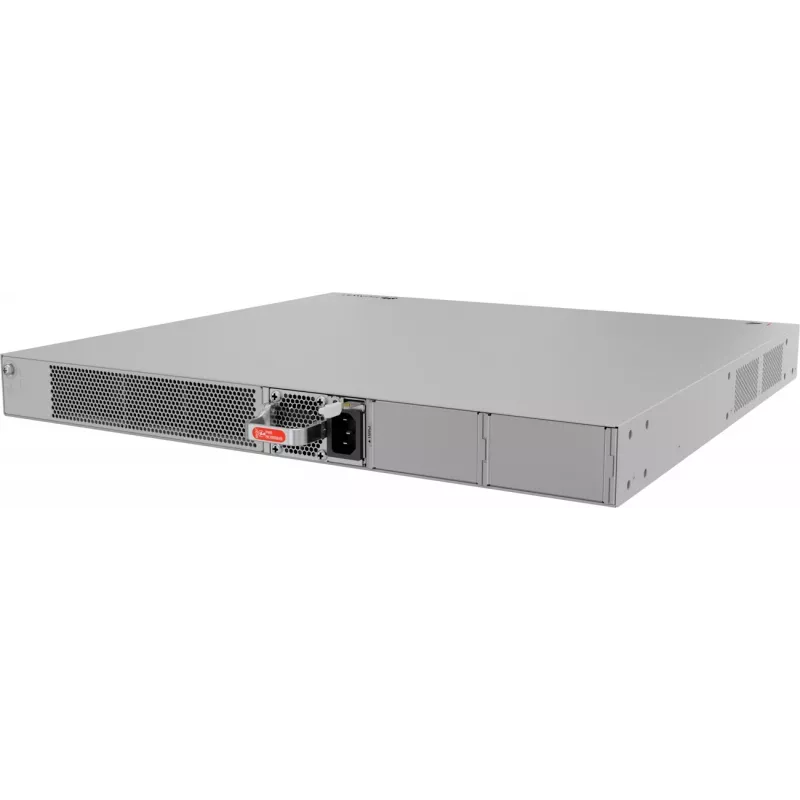

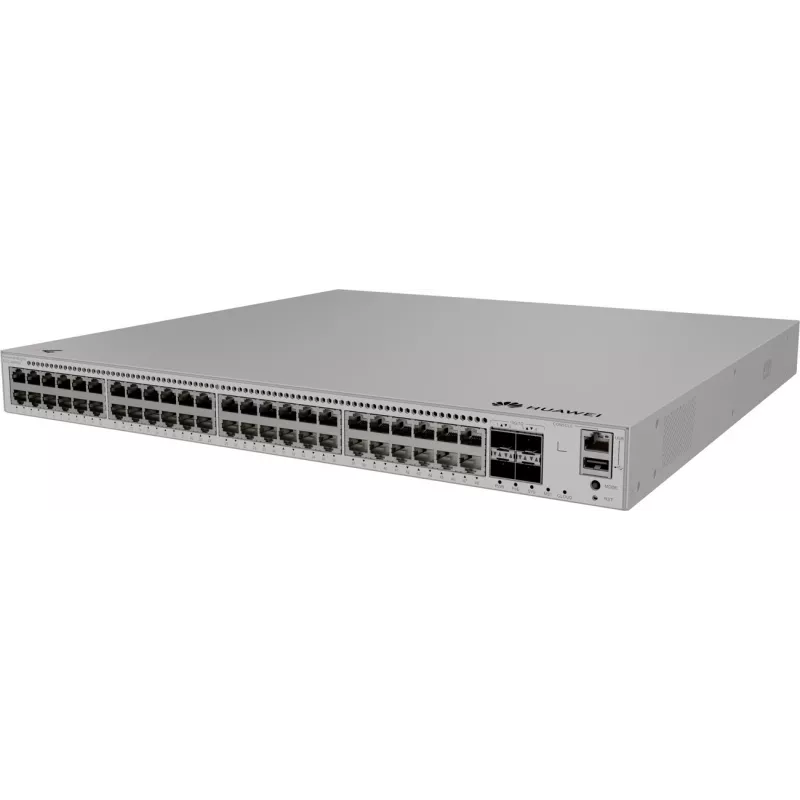

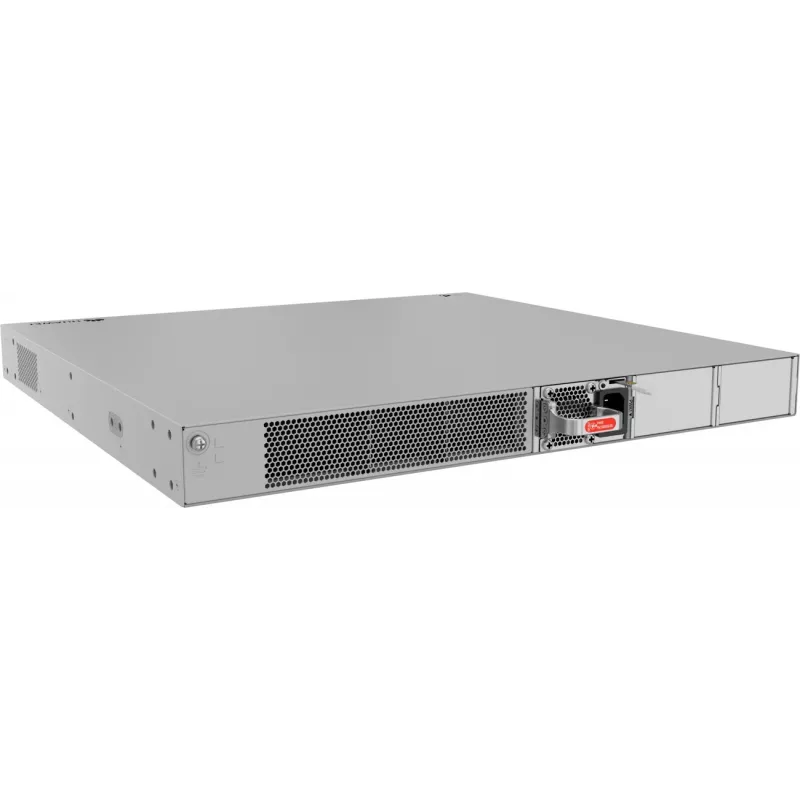

Huawei switch S310-48HP4X (98012566) 48-poorts Gigabit PoE+ managed rackmount switch met 4x 10G SFP+ uplinks

The Huawei S310-48HP4X stands out as a high-density access switch engineered for modern enterprise networks that demand both power and performance. Unlike conventional 48-port switches that compromise on PoE budget or uplink capacity, this model delivers a substantial 370 W PoE budget alongside four 10G SFP+ uplinks, making it ideal for IP surveillance, wireless AP deployments, and converged voice/data environments. Its 176 Gbit/s switching capacity and 132 Mpps forwarding rate ensure smooth traffic handling even under heavy load, while the smart fan design keeps noise low in office settings.

Highlights

• 48 x 10/100/1000BASE-T ports with IEEE 802.3af/at PoE/PoE+ support
• 4 x 10GE SFP+ uplink ports for high-speed backbone connectivity
• Total PoE power budget of 370 W to power access points, IP cameras, and VoIP phones
• Layer 2 and basic Layer 3 features including static routing, VLANs, and QoS
• Comprehensive security with ACL, 802.1X authentication, and DHCP snooping
• Flexible management via CLI, web GUI, SNMP, and cloud platform
• 1U rack-mountable design with smart fan for quiet operation

In daily use

Deploying the S310-48HP4X simplifies network infrastructure by combining switching and power delivery in a single unit. The 48 PoE+ ports can supply up to 30 W per port, allowing you to connect a full floor of access points or a large array of surveillance cameras without additional power injectors. The four 10G SFP+ uplinks provide ample bandwidth to aggregate traffic to the core, eliminating bottlenecks in busy networks. Administrators will appreciate the intuitive web interface and robust CLI for configuration, while SNMP and cloud management enable remote monitoring and automation. The switch's 16K MAC address table and support for up to 4094 VLANs ensure scalability for growing networks.

Full specifications

• Brand: Huawei
• Model: S310-48HP4X
• MPN: 98012566
• EAN: 6901443464593
• Ethernet Ports: 48 x 10/100/1000BASE-T (RJ45)
• Uplink Ports: 4 x 10GE SFP+
• PoE Support: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)
• Total PoE Power Budget: 370 W
• Switching Capacity: 176 Gbit/s
• Forwarding Performance: 132 Mpps
• MAC Address Table Size: 16K entries
• VLANs Supported: 4094
• Jumbo Frame Support: 10 KB
• Layer Features: Layer 2 and basic Layer 3 (static routing)
• Management: CLI, Web GUI, SNMP, Cloud Management
• Power Supply: Built-in AC 100-240V
• Rack Mountable: Yes (1U height)
• Fan: Smart Fan
• Operating Temperature: 0°C to 50°C
• Security Features: ACL, 802.1X, DHCP Snooping
• Networking Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3af, 802.3at, 802.1Q, 802.1p, 802.1X
• Quality of Service (QoS) Support: Yes
• Web-based Management: Yes
• LED Indicators: Yes
• Power Source: AC
• AC Input Voltage: 100-240 V
• AC Input Frequency: 50/60 Hz
• Number of Fans: 2 (smart fans)
• Product Colour: Grey

Final note

The Huawei S310-48HP4X is a future-proof investment for any organisation seeking a reliable, high-capacity PoE switch with 10G uplinks. Its combination of power, performance, and management flexibility makes it a cornerstone for modern network access layers.
