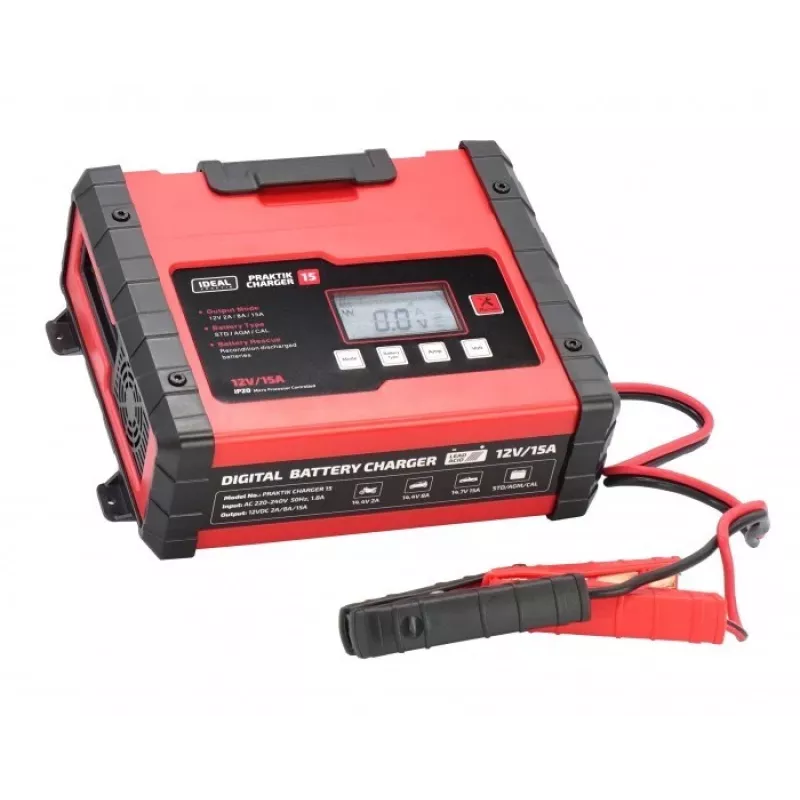

IDEAL oplader PRAKTIK CHARGER 15 LCD, laadspanning: 12V/6V, 15A/7.5A, 9-traps automatisch, IP65

The PRAKTIK CHARGER 15 LCD stands out with its intelligent microprocessor control and 9-stage automatic charging, supporting a wide range of battery technologies including WET, MF, CA/CA, EFB, GEL, and AGM. It delivers up to 15 A for 12 V batteries and 7.5 A for 6 V batteries, with an LCD display for clear status monitoring.

Highlights

• Intelligent microprocessor-controlled charging
• Supports WET, MF, CA/CA, EFB, GEL, and AGM batteries
• 9-stage automatic charging process
• LCD display for easy monitoring
• IP65 protection against dust and water
• Special modes: Winter Mode, Battery Regeneration (Desulfation), Maintenance Charging

In daily use

Connect the charger to a 230 V AC outlet and attach the clamps to the battery. The microprocessor automatically adjusts the charging stages, and the LCD shows the current status. The charger is protected against overcharge, short circuit, reverse polarity, overheat, and sparks, ensuring safe operation. Suitable for battery capacities from 20 to 300 Ah (12 V) or 10 to 150 Ah (6 V).

Full specifications

• Charger Type: Intelligent Microprocessor Controlled
• Supported Battery Technologies: WET, MF, CA/CA, EFB, GEL, AGM
• Output Voltage: 12V DC / 6V DC
• Max Charging Current: 15A (12V), 7.5A (6V)
• Recommended Battery Capacity: 20-300 Ah (12V), 10-150 Ah (6V)
• Charging Stages: 9-Stage Automatic
• Display Type: LCD
• Input Voltage: 230V AC, 50Hz
• Protection Features: Overcharge, Short Circuit, Reverse Polarity, Overheat, Spark Protection
• Special Modes: Winter Mode, Battery Regeneration (Desulfation), Maintenance Charging
• Ingress Protection (IP) Rating: IP65
• Input Cable Length: 1.5 m
• Output Cable Length: 1.5 m
• Operating Temperature: -20°C to +50°C

Final note

The PRAKTIK CHARGER 15 LCD combines versatility, safety, and ease of use, making it a reliable choice for maintaining and charging a wide range of lead-acid batteries.
