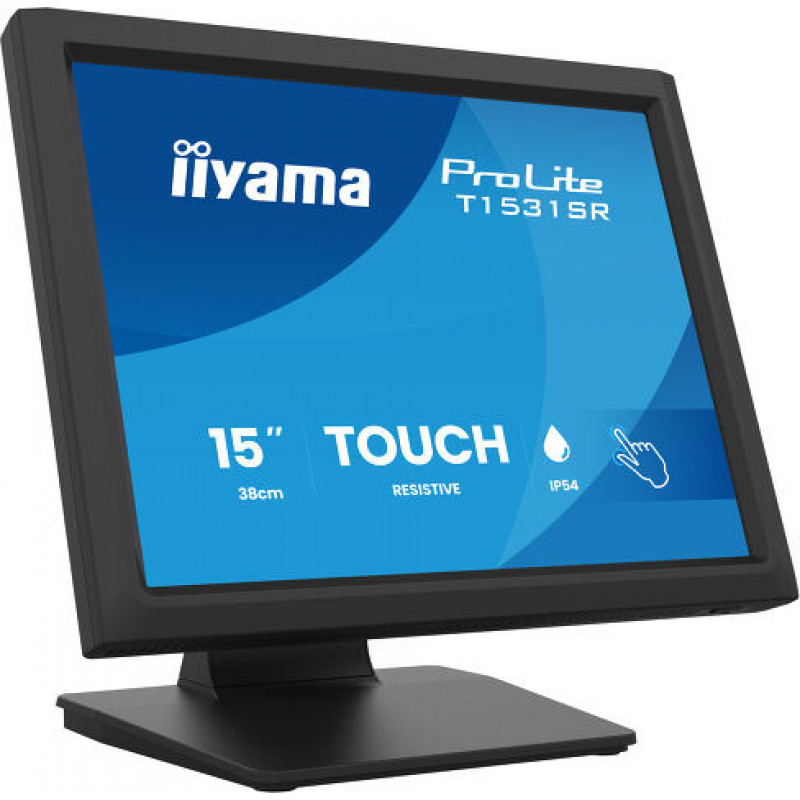

Iiyama T1531SR-B2S 15 inch touchscreen-monitor, VA, HDMI, VGA, DisplayPort

The Iiyama T1531SR-B2S is a 15-inch touchscreen monitor designed for commercial and industrial environments. It features a VA panel with a resolution of 1024 x 768 and a resistive touch interface that can be operated with a finger, stylus, or gloved hand. The monitor offers flexible connectivity with VGA, HDMI, and DisplayPort inputs, and includes built-in speakers.

Key features

• 15-inch (38 cm) touchscreen monitor with 4:3 aspect ratio
• VA panel with 1024 x 768 resolution
• Resistive touch technology, single touch point
• Touch interface via USB
• Anti-glare coating
• IP54 rated front side for water and dust protection
• VESA 100 x 100 mm mounting
• Built-in 2 x 1W speakers
• Kensington lock prepared
• Plug & Play DDC2B

Specifications

• Brand: Iiyama
• MPN: T1531SR-B2S
• Product colour: Black
• Display diagonal: 15" (38 cm)
• Panel type: VA
• Resolution: 1024 x 768
• Brightness: 350 cd/m² (270 cd/m² with touch panel)
• Contrast ratio: 2500:1
• Response time: 18 ms
• Viewing angles: 176° horizontal / 176° vertical
• Active area (H x W): 304 x 228 mm
• Pixel pitch: 0.297 mm
• Horizontal frequency: 31-60 kHz
• Touch technology: Resistive, serial
• Touch points: 1
• Touch method: Stylus, finger, glove
• Touch interface: USB
• Analog video input: VGA x1
• Digital video input: HDMI x1, DisplayPort x1
• Audio input: Mini Jack x1
• Audio output: Speakers 2 x 1W
• HDCP: Yes
• OSD languages: EN, DE, FR, ES, IT, CN, JP
• Control buttons: Menu, Scroll up/Brightness, Scroll down/Mute, Select, Power
• Orientation: Landscape, face-up
• Tilt angle: 90° up, 5° down
• VESA mounting: 100 x 100 mm
• Cable management: Yes
• Power supply: Internal, AC 100-240V, 50/60Hz
• Power consumption: 16W typical, 1.5W standby, 0.3W off
• Energy efficiency class: E
• Regulations: CE, EAC, RoHS, ErP, cULus, VCCI, WEEE, REACH, UKCA
• Dimensions (W x H x D): 351 x 306.5 x 200 mm
• Weight: 4.1 kg
• Warranty: 36 months on-site service
• Included accessories: Power cable, USB cable, HDMI cable, Audio cable, DP cable, user manual, safety instructions, cable cover, screwdriver
