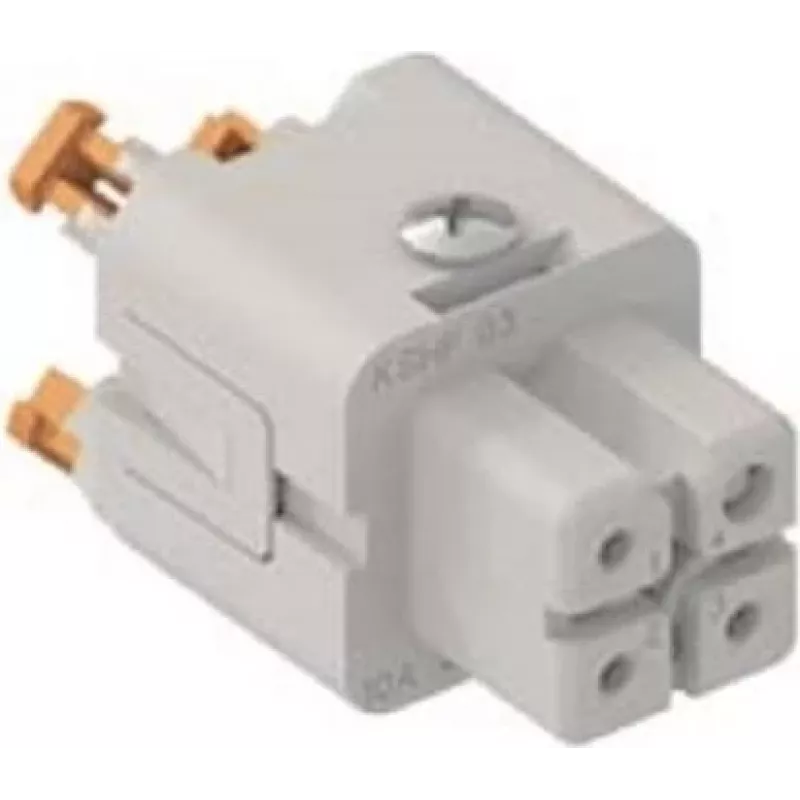

ILME CKSHF03 businzetstuk 3P+PE zilver SQUICH 10A 400V

Female insert for industrial rectangular connectors, size 21.21, with 3 poles plus protective earth and silver-plated contacts. The SQUICH spring-cage termination allows tool-less wiring for solid or stranded conductors up to 2.5 mm², rated for 10 A at 400 V.

Advantages

Tool-less SQUICH termination speeds up assembly and reduces wiring errors. Silver-plated contacts ensure reliable low-resistance connections over at least 500 mating cycles. The self-extinguishing thermoplastic insulator meets UL94 V-0 for enhanced fire safety.

Suitable for

• Industrial machinery and control panels
• Motor and actuator connections
• Applications requiring frequent reconfiguration or maintenance

Key specifications

• Number of poles: 3 + PE
• Rated current: 10 A
• Rated voltage: 400 V
• Termination: SQUICH spring-cage
• Wire cross section: 0.14 – 2.5 mm² (solid and stranded)
• Contact plating: Silver
• Insulator material: Thermoplastic, UL94 V-0
• Operating temperature: -40°C to +125°C
• Mating cycles: ≥ 500
• Housing size: 3A

Recommendations

Pair with a compatible ILME hood and male insert of the same series for a complete connector solution. Verify wire gauge and insulation diameter before termination.
