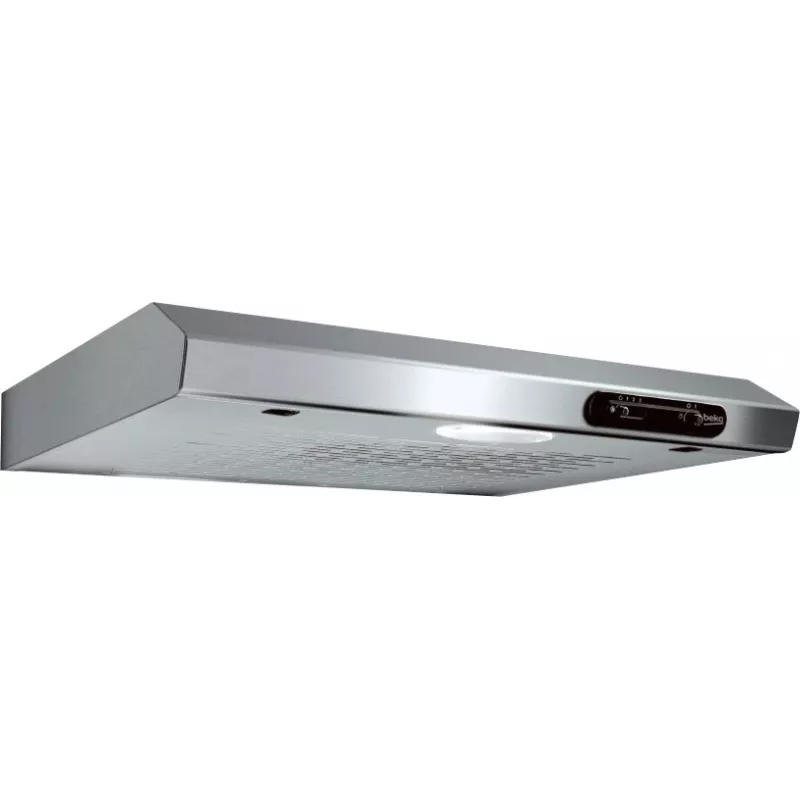

Inbouw afzuigkap Beko CFB 5310 X, koolstoffilter, geluidsniveau: G

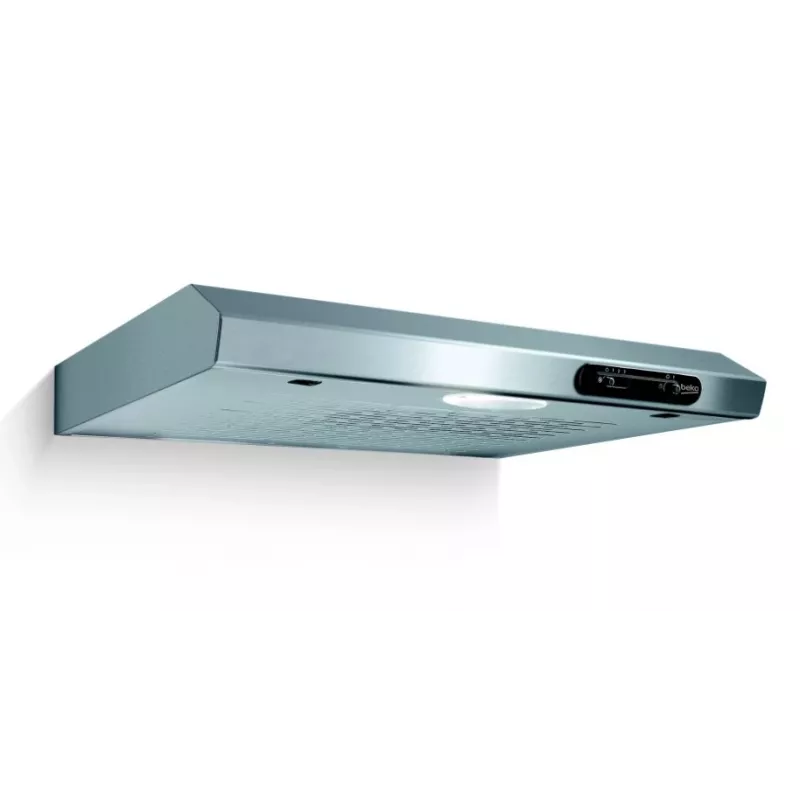

The Beko CFB 5310 X is a built-in cooker hood designed for integration into kitchen cabinets. It provides a maximum extraction power of 125 m³/h and operates from a standard AC input voltage of 220–240 V. The hood includes a charcoal filter for recirculation and an integrated 28 W bulb for task lighting. With overall dimensions of 500 mm width, 470 mm depth and 76 mm height, it fits compact overhead spaces while delivering necessary ventilation performance for typical household cooking.

Advantages

The model combines moderate extraction power with compact dimensions, making it suitable for smaller kitchens or for installation where a discreet, built-in appearance is required. The integrated charcoal filter enables recirculating operation where external ducting is not available. Energy-related characteristics such as a motor power of 108 W and annual energy consumption of 60 kWh provide predictable operating costs. Standardised voltage compatibility (220–240 V) simplifies connection in most residential settings.

Suitable for

• Small to medium domestic kitchens where external ventilation ducts are not an option
• Integration into overhead kitchen cabinets above cooktops
• Homes requiring a low-profile built-in solution to preserve cabinet aesthetics

Key specifications

• Maximum extraction capacity: 125 m³/h
• Noise level during operation: 62 dB
• Motor power: 108 W
• Lighting: one 28 W bulb
• Energy consumption (annual): 60 kWh
• Dimensions (W×D×H): 500 mm × 470 mm × 76 mm
• Type of installation: built-in (integrated into cabinet)
• Recirculation: charcoal filter included

How to use

Install the hood into a suitable overhead cabinet opening sized to the specified dimensions and connect it to a 220–240 V mains supply following local electrical regulations. Use the controls to select the extraction mode and switch on the integrated lighting as needed while cooking. If external ducting is not available, operate the unit in recirculation mode with the charcoal filter installed; replace the charcoal filter according to the manufacturer’s recommended intervals. Clean grease filters and exterior surfaces regularly to maintain airflow and lighting performance.

Recommendations

For optimal performance, run the hood at a higher extraction setting during frying or heavy cooking to reduce odors and grease; use the light for improved visibility. If recirculating, replace the charcoal filter periodically and clean grease filters after heavy use. Ensure proper electrical connection by a qualified technician and allow adequate clearance from the cooktop as specified in installation guidance.
