Inbouw afzuigkap Elica FOLD-BLK-60, roestvrijstaal-/actiefkoolfilter, 514×251×283 mm, 580 m³/h

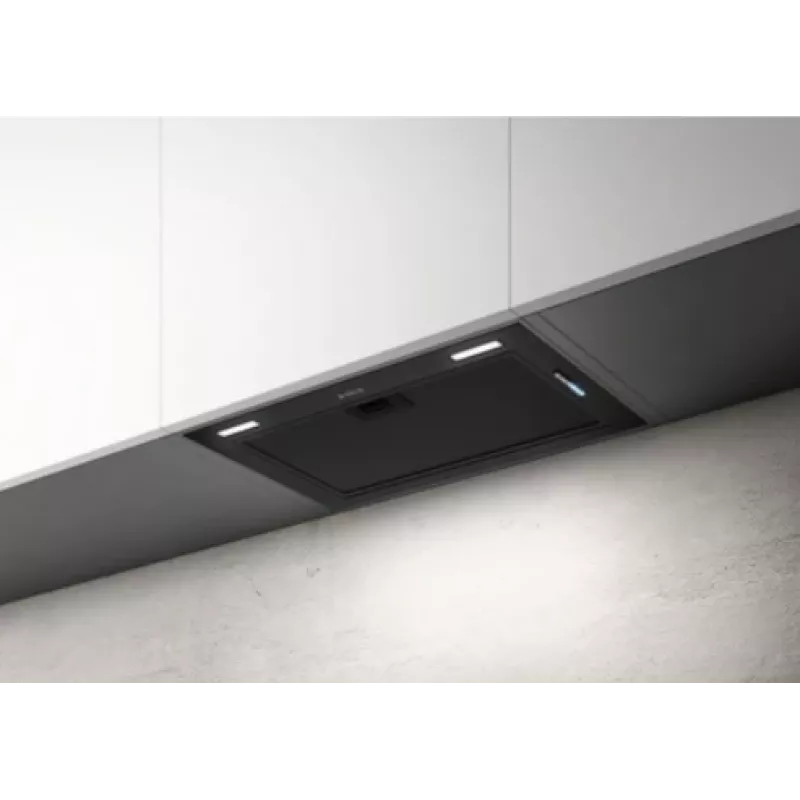

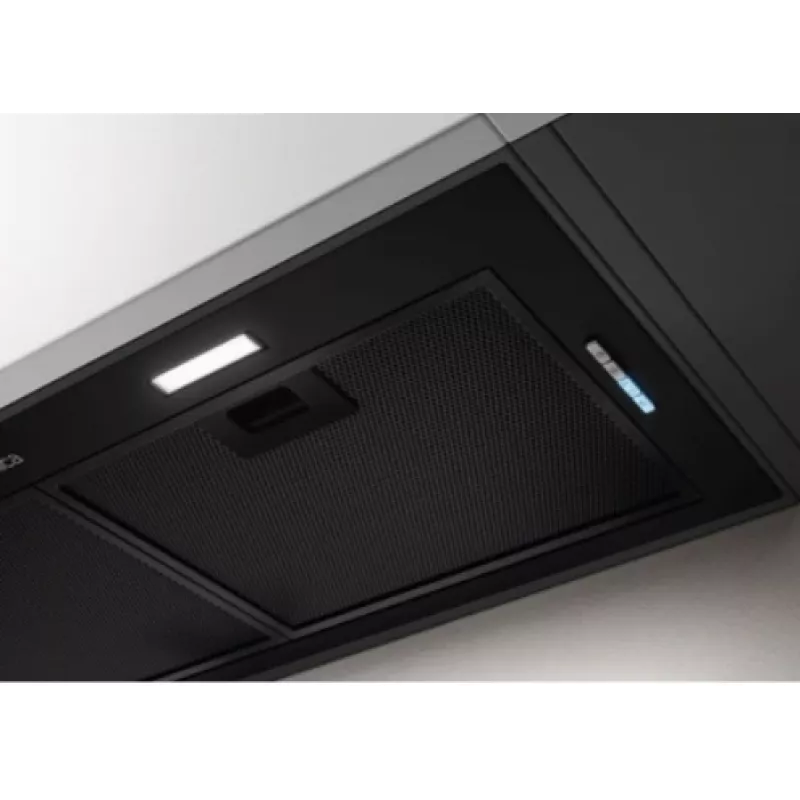

The Elica FOLD-BLK-60 is a built-in cooker hood designed for integration into kitchen cabinetry. It provides a maximum extraction power of 600 m³/h with ducted or recirculating operation and is finished in black to match modern interiors. The hood includes a stainless steel/charcoal grease filter, two LED bulbs (2.1 W each) for task lighting, and button controls. Its compact dimensions suit installation where a discreet, flush appearance is required, and the unit has an annual energy consumption of 75 kWh and operates from a 240 V AC supply.

Advantages

The Elica FOLD-BLK-60 combines strong extraction capacity with a compact built-in design, allowing efficient removal of cooking vapours while remaining concealed within kitchen furniture. The stainless steel and charcoal filter arrangement supports both grease retention and odour reduction in recirculating mode. Low-power LED lighting ensures clear illumination of the cooking area with minimal additional energy use. Button controls provide straightforward operation, and the product’s energy efficiency class B reflects moderate energy performance for regular household use.

Key specifications

• Width: 514 mm
• Height: 251 mm
• Depth: 283 mm
• Maximum extraction power: 600 m³/h
• Extraction type: Ducted / Recirculating
• Energy efficiency class: B
• Grease filter type: Stainless steel / Charcoal
• Control type: Buttons
• Lighting: 2 × LED bulbs, 2.1 W each
• Annual energy consumption: 75 kWh
• Supply voltage: 240 V AC
• Colour: Black

How to use

Install the Elica FOLD-BLK-60 according to the manufacturer’s installation instructions into the designated cabinet space, ensuring correct connection for ducted or recirculating operation and secure electrical wiring to a 240 V supply. Use the button controls to select the required extraction level before or during cooking. Replace or clean the stainless steel portion of the grease filter periodically according to usage, and change the charcoal filter elements when odour removal performance declines. Operate the LED lighting independently as needed to illuminate the hob area.

Recommendations

For effective performance, run the hood at a higher extraction level during heavy frying or prolonged cooking and maintain regular cleaning of the grease filters. If using recirculating mode, replace charcoal filter cartridges at intervals recommended by the manufacturer to preserve odour filtration efficiency.
