Inbouw frontpaneelmodule Kindermann 7444-531 — 2x RCA en 4-polige mini-DIN-aansluiting

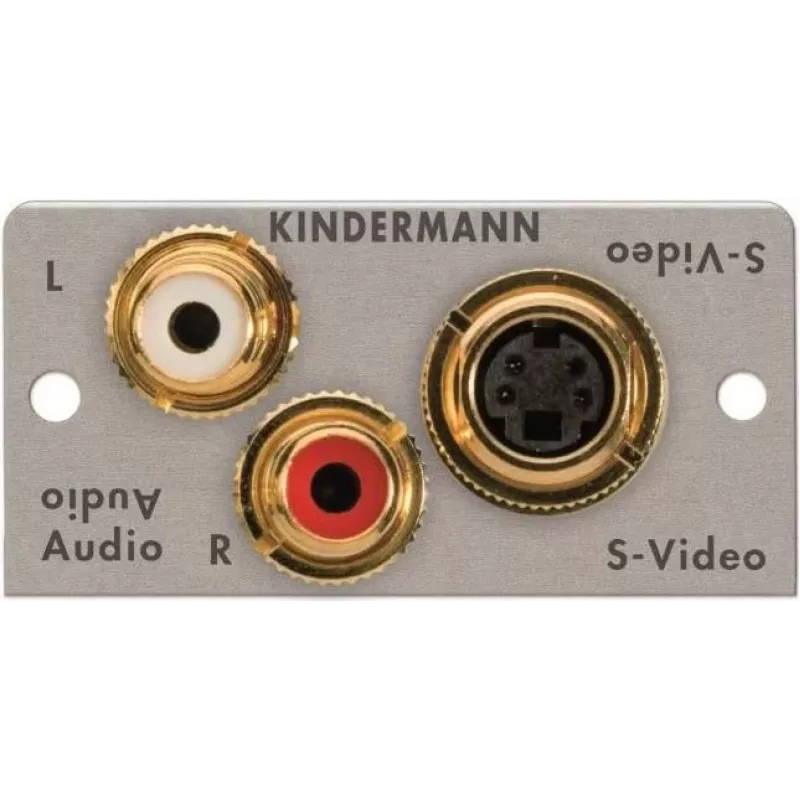

The faceplate snap-in Kindermann 7444-531 integrates two RCA ports and one 4-pin Mini-DIN connector into a compact snap-in module for panels and housings. It is intended for tidy cable routing and straightforward installation in audio/video systems and device interfaces where RCA and Mini-DIN connections are required. The module’s compact footprint and snap-in mounting help reduce installation time and simplify access for maintenance or reconfiguration.

Advantages

This snap-in faceplate brings multiple connector types into a single, space-saving unit, eliminating the need for separate plates and reducing panel clutter. The snap-in design enables quick assembly without additional fasteners, and the standardized RCA and Mini-DIN interfaces ensure broad compatibility with consumer and professional audio/video equipment. Materials and contact layouts are chosen to provide reliable electrical connections and accessible rear-side cabling for straightforward wiring.

Suitable for

Key specifications

How to use

Insert the snap-in module into a compatible cutout in the faceplate or panel until it clicks into place, ensuring the module is oriented correctly so the RCA and Mini-DIN connectors align with the corresponding external openings. Route cables to the rear of the module and make the appropriate solder or crimp terminations according to the connected equipment’s wiring requirements. After wiring, verify mechanical retention and test each connection for signal continuity and correct channel assignment before finalizing the installation.

Recommendations

Use shielded RCA cables for audio connections to minimize interference, and follow manufacturer guidance for Mini-DIN pin assignments to prevent signal mismatches. Avoid excessive mechanical stress on cables and connectors, and confirm that the panel thickness and cutout dimensions match the snap-in module’s requirements for secure mounting.
