Inbouw oven Electrolux LOD8P39Z — 72 l, pyrolytische zelfreiniging, TFT-display, zwart

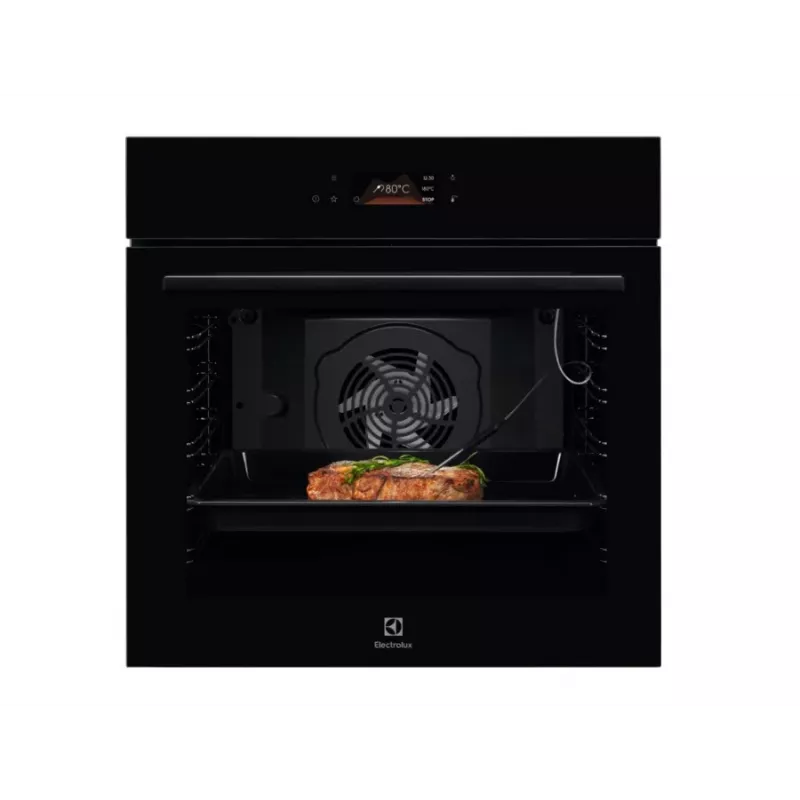

Electrolux LOD8P39Z is a built-in electric oven with 72 L usable capacity designed for integration into a standard kitchen cabinet. It features a TFT EXCIte display with touch controls, pyrolytic self-cleaning, convection and conventional baking functions, fast heat, pizza and crisp programs, a cool door and interior lighting. The appliance comes with telescopic slides, side ladders, two baking trays and a grill grid.

Advantages

The oven offers pyrolytic self-cleaning for low-maintenance operation and a medium 72 L interior suitable for most household baking needs. Touch control with a built-in TFT EXCIte display provides clear settings and convenient front control placement. Additional conveniences include a cool door, interior light, child lock and telescopic slides for safer tray handling. Energy efficiency class A+ helps reduce running costs.

Suitable for

• Standard built-in kitchen installation with 56 cm width and 55 cm depth installation space
• Everyday baking and roasting for families (72 L capacity)
• Preparing pizza and crispy dishes using dedicated functions
• Users who prefer pyrolytic self-cleaning to manual scrubbing

Key specifications

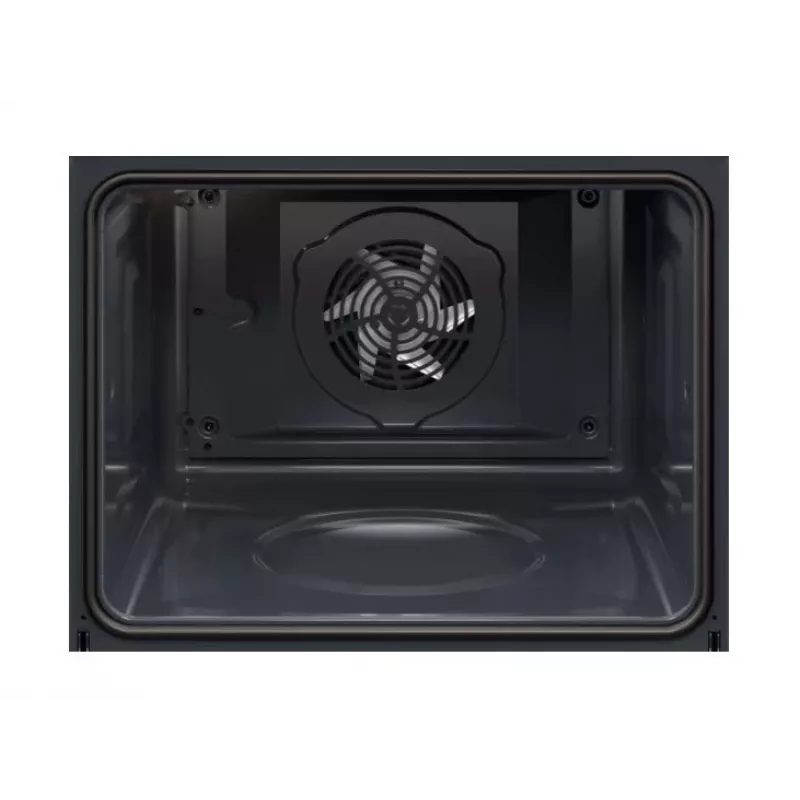

• Usable oven capacity: 72 L
• Cleaning type: Pyrolytic self-cleaning

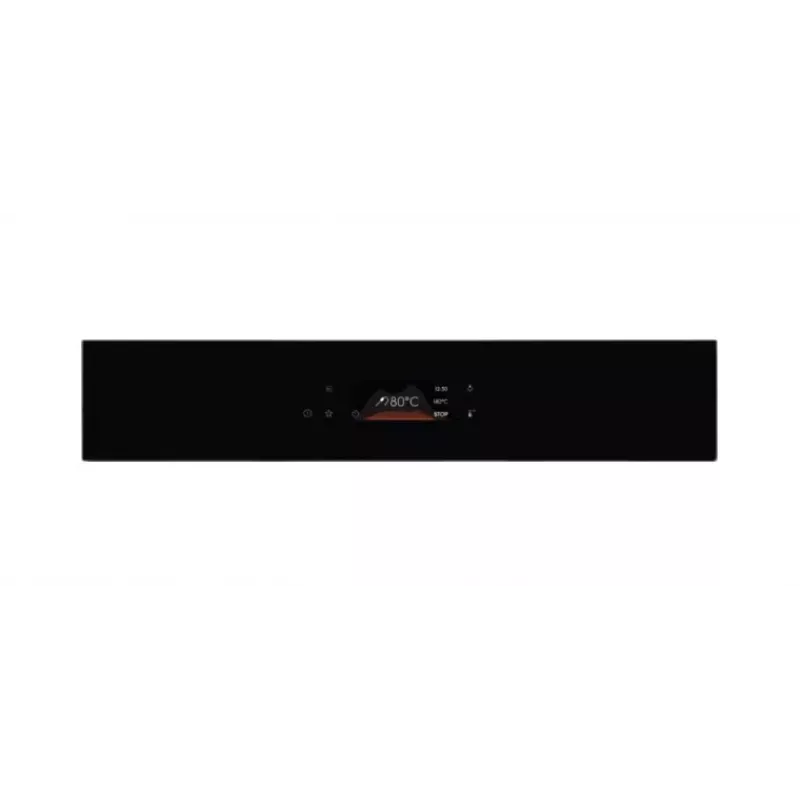

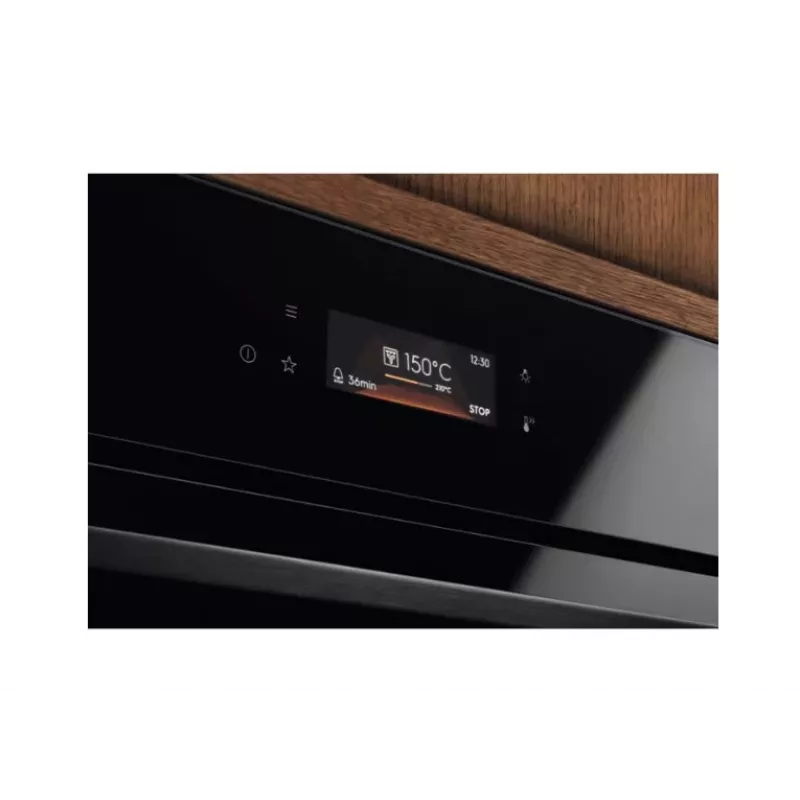

• Display: TFT EXCIte with touch control
• Oven functions: Convection cooking and conventional baking; fast heat, pizza and crisp functions

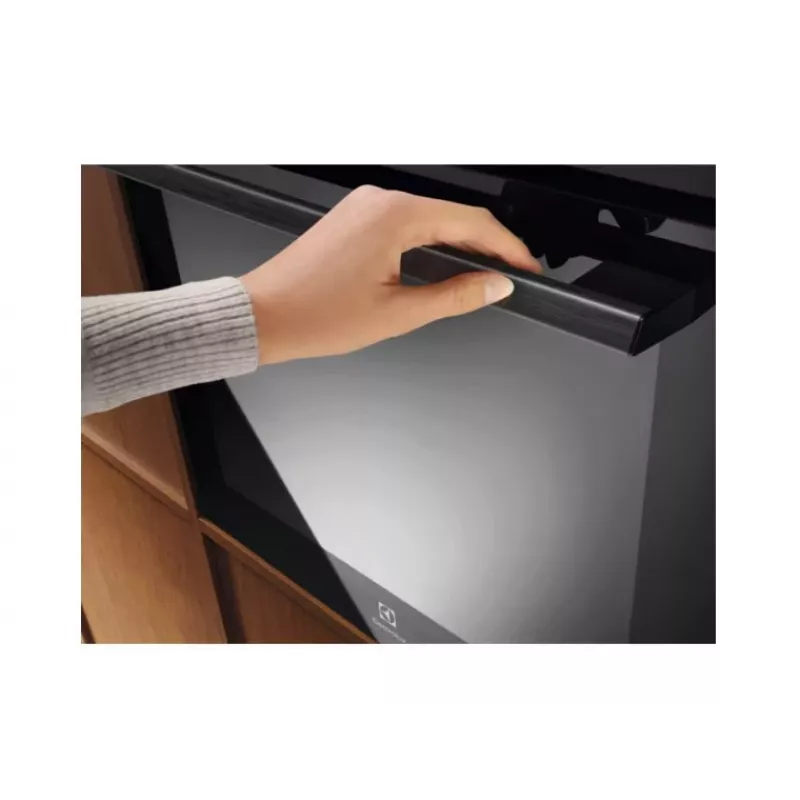

• Door hinge: Down; cool door
• Interior light: Yes
• Energy consumption per cycle: 0.93 kWh (0.69 kWh with forced convection)
• Energy efficiency class: A+ on A+++ to D scale
• AC input voltage: 220–240 V
• Installation compartment dimensions (recommended): 56 cm width × 55 cm depth × 59 cm height
• Product color: Black
• Dimensions (product): approx. 594 mm width × 569 mm depth × 594 mm height
• Weight: 32 kg
• Included accessories: Telescopic slides, side ladders, grill grid, 2 baking trays

How to use

Install the oven into a cabinet recess that meets the specified installation compartment dimensions and connect to a 220–240 V supply using a grounded Schuko connector. Use the front touch controls and TFT display to select desired cooking mode, temperature and timer. For pyrolytic cleaning, remove racks and trays, lock the door if required by the control, and start the cleaning cycle according to the user manual. Allow the oven to cool and wipe residual ash after the cycle. Use telescopic slides for safer insertion and removal of trays; the child lock can be engaged to prevent unintended operation.

Recommendations

Do not install or operate the oven in damp areas to avoid the risk of electric shock. Follow the manufacturer's instructions in the user manual for safe installation, electrical connection and pyrolytic cleaning procedures.
