Industriële switch LevelOne 6-poorts Gigabit PoE

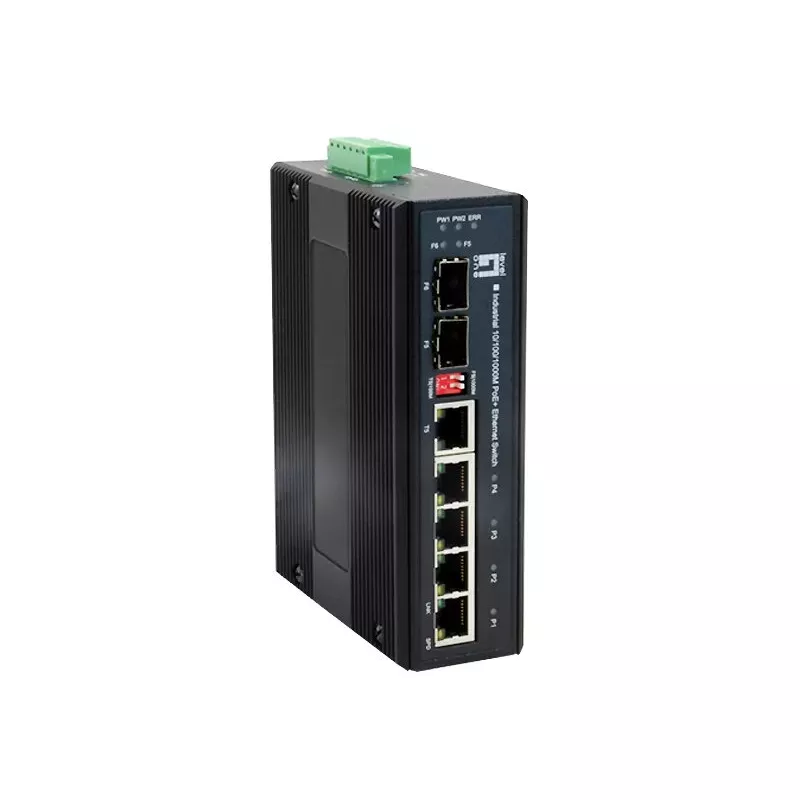

The Industrial Switch LevelOne 6-Port Gigabit PoE (Model IES-0620) provides four Gigabit PoE RJ-45 ports, one Gigabit combo port and one Gigabit SFP slot to deliver high-speed connectivity for mission-critical and harsh environments. The metal IP30-rated housing supports DIN-rail mounting and the unit operates in a wide temperature range from -40°C to 75°C. The SFP slot accepts pluggable transceivers for flexible fiber uplinks. The switch functions as Power Sourcing Equipment (PSE) and complies with IEEE 802.3at with up to 30 W per PoE port, while remaining compatible with IEEE 802.3af powered devices.

Advantages

The LevelOne industrial Gigabit PoE switch combines Gigabit copper and SFP fiber options in a compact metal enclosure with DIN-rail mounting, offering plug-and-play port auto-negotiation and Auto-MDI/MDIX. Its industrial-grade operating range and IP30 protection enable deployment in extreme temperature conditions. Built-in PoE (IEEE 802.3at/802.3af) supplies up to 30 W per port and a typical total power budget (product data) supports multiple powered devices, reducing separate power cabling and simplifying installation.

Suitable for

• Outdoor cabinet or indoor industrial control network segments
• PoE-powered devices such as IP cameras, wireless access points and VoIP phones
• Fiber uplink requirements using SFP transceivers
• Environments requiring wide temperature range and DIN-rail mounting

Key specifications

• Ports: 4 × 10/100/1000Base-T PoE, 1 × Gigabit combo (RJ45/SFP), 1 × Gigabit SFP
• PoE standard: IEEE 802.3at (compatible with IEEE 802.3af), up to 30 W per port; total power budget ~126 W (product data)
• Switching capacity: 12 Gbit/s
• Auto features: Auto-Negotiation, Auto-MDI/MDIX
• Operating temperature: -40°C to 75°C
• Power input: 12–55 VDC
• Housing: Metal, DIN-rail mount, IP30
• Weight: 0.72 kg
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at

How to use

Mount the switch on a DIN-rail inside a suitable cabinet or enclosure and connect the DC power source within the specified 12–55 VDC range. Insert any required SFP transceivers into the SFP slot. Connect network devices to the Gigabit RJ-45 PoE ports; the switch will negotiate speed and duplex automatically and supply PoE power to compatible PD devices. Use the combo port as an alternative uplink if needed. Monitor link and status LEDs on the front panel for connection activity and troubleshooting.

Recommendations

For reliable PoE delivery, calculate the total power requirement of connected devices to ensure it does not exceed the switch power budget. Use appropriate SFP transceivers for the required fiber type and distance, and install the switch in a ventilated area or cabinet to maintain operating temperatures within the specified range.
