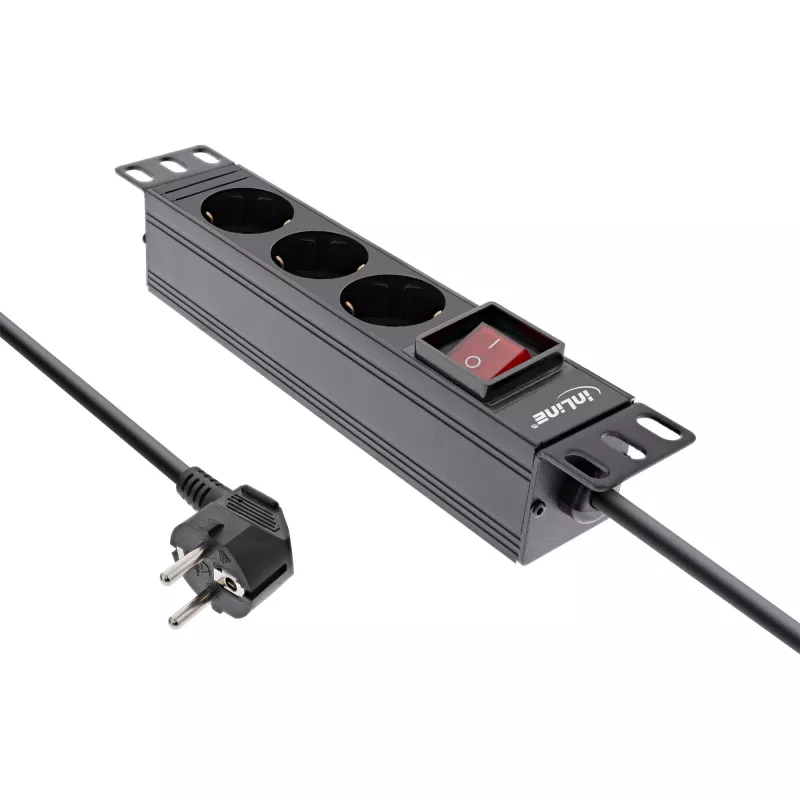

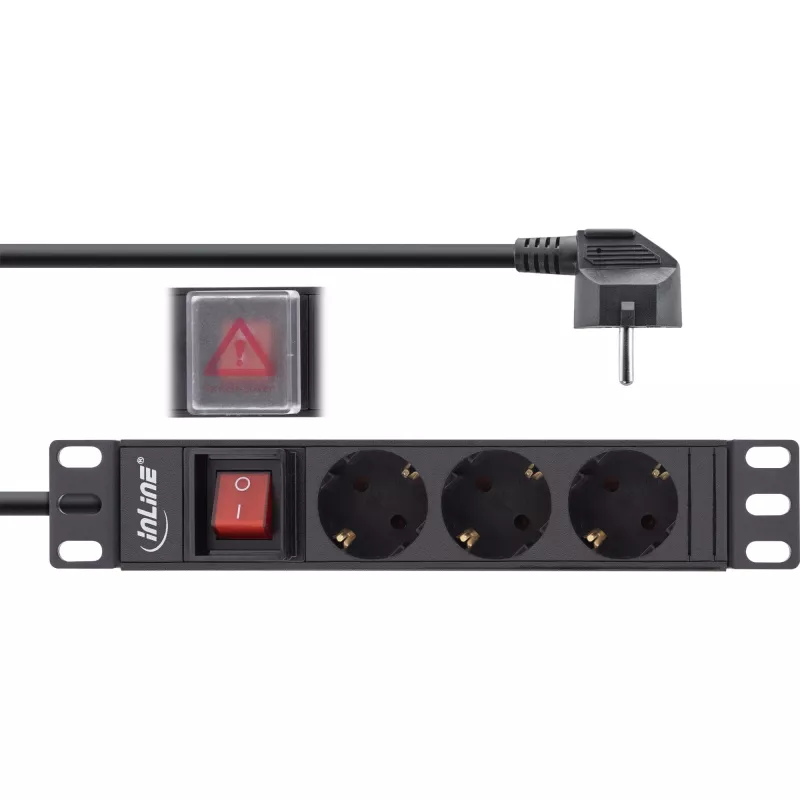

InLine 10-inch PDU, 3-voudig randaarde, met schakelaar, 2m, zwart

The InLine 10" PDU is a compact, single-phase power distribution unit designed for installation in a 10" network cabinet. It provides three earthed AC outlets and a built-in switch, a 2 m supply cable and supports a maximum current of 16 A (up to 3680 W). The unit occupies 1U rack space and has compact dimensions for neat mounting in server racks.

Advantages

The PDU combines a switched outlet design with earthing contacts to allow safe on/off control of connected devices, while the 2 m cable offers flexible placement inside the cabinet. Its 1U form factor and narrow width are suitable for tidy installation in standard 10" racks. Black housing provides a neutral appearance that integrates with typical rack equipment.

Suitable for

• Powering network and server equipment in 10" cabinets
• Distributing power to small rack-mounted systems and switches
• Environments requiring a compact, switched PDU with earthing contacts

Key specifications

• Brand: InLine
• Model / MPN: 16420K
• EAN: 4043718302987
• PDU type: Switched
• AC outlets: 3
• Maximum current: 16 A
• Maximum power: 3680 W
• Cable length: 2 m
• Phase: Single-phase
• Rack height: 1U
• Colour: Black
• Dimensions (W x D x H): 254 x 45 x 45 mm

How to use

Install the PDU into a 10" network cabinet taking up 1U of rack space. Connect the 2 m mains cable to a compatible AC supply, switch the unit on using the front switch, and plug equipment into the three earthed AC outlets. Ensure total connected load does not exceed 16 A (3680 W) and that the cabinet earthing and mains supply meet local electrical regulations.

Recommendations

Use the PDU for equipment with combined power draw below the specified maximum; distribute high-current devices across multiple PDUs if necessary. Verify proper earthing and avoid overloading the unit to maintain safe and reliable operation.
