InLine 10 inch stekkerdoos, 3-voudig randaarde, C14-aansluiting, met schakelaar

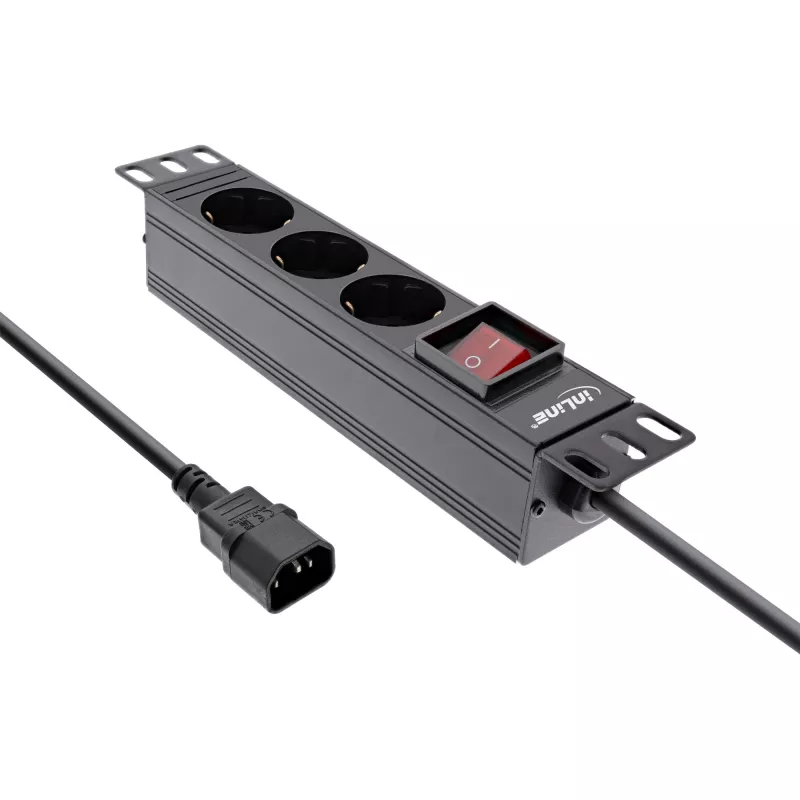

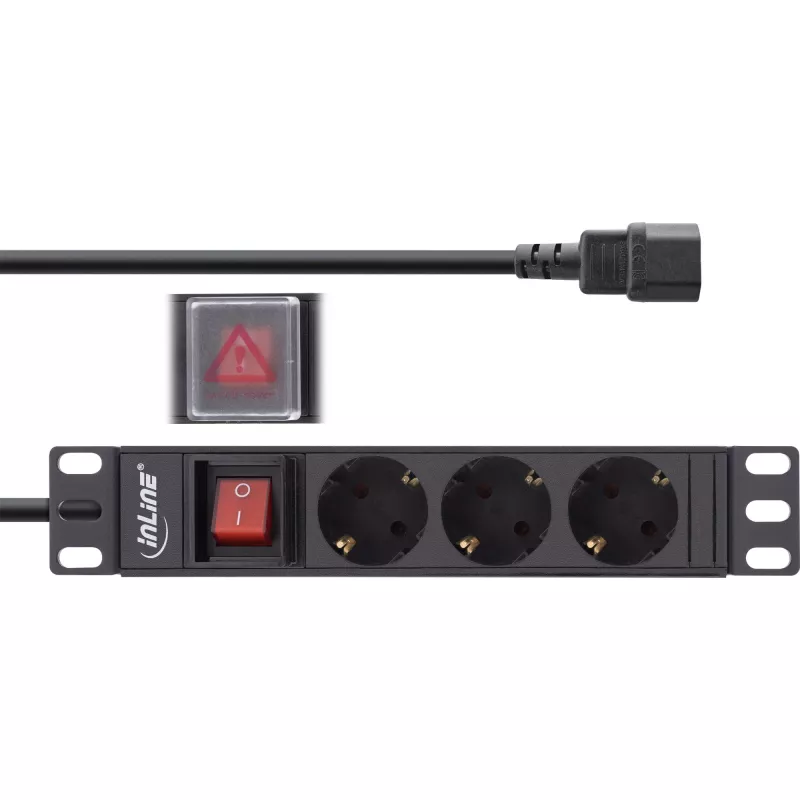

The InLine 10" socket strip provides three AC outlets with a C14 inlet and an integrated on/off switch. Designed for single-phase electrical systems, it supports a maximum current of 10 A and a maximum power of 2500 W. The unit occupies 1U of rack space and is intended for installation in 10" network or server cabinets; its compact dimensions and 2 m supply cable allow flexible positioning inside the cabinet.

Advantages

The compact 1U form factor saves rack space while delivering three grounded outlets. The C14 inlet simplifies power distribution in racks using standard IEC connections. A built-in switch enables manual control without the need to disconnect the supply cable. The 2 m cable length offers convenient reach to nearby power sources in typical rack environments.

Suitable for

• Powering networking equipment and servers in 10" network cabinets
• Small rack installations and telecom enclosures
• Applications requiring a compact, switched IEC C14-fed power strip

Key specifications

• Number of outlets: 3 AC sockets
• Inlet type: IEC C14
• Rated current: 10 A (single-phase)
• Rated power: 2500 W
• Rack height: 1U
• Cable length: 2 m
• Dimensions (W×D×H): 254 × 45 × 45 mm

How to use

Mount the socket strip into a 10" cabinet occupying a single rack unit. Connect the incoming power cable to the C14 inlet and secure the unit in the rack using appropriate mounting hardware. Plug equipment into the three AC outlets. Use the integrated switch to turn power on or off to the strip.

Recommendations

Do not exceed the rated current of 10 A or the rated power of 2500 W. Ensure proper grounding and that connected devices are compatible with single-phase supply. Install the unit in a dry, ventilated rack environment and avoid overloading individual outlets.
