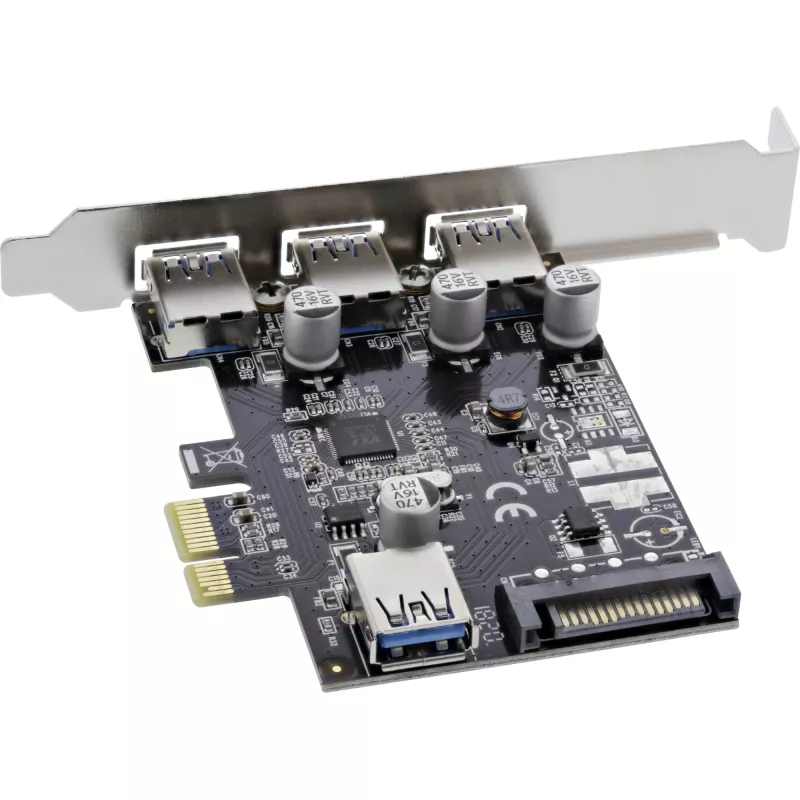

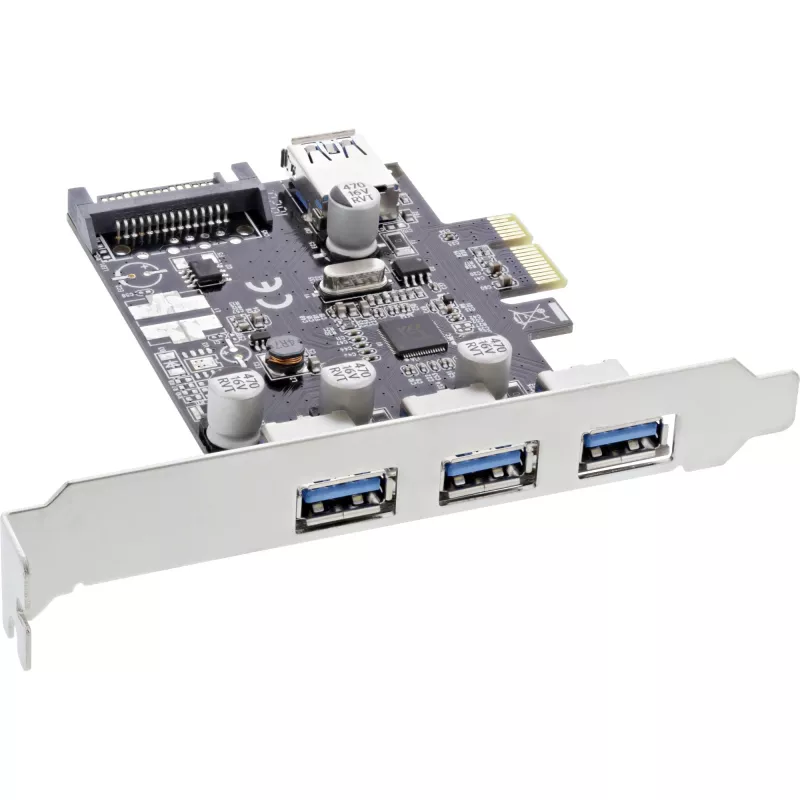

InLine USB 3.0-hostcontroller met 3+1 poorten, PCIe, met SATA-voeding en LP-beugel

The InLine 3+1ports USB 3.0 host controller adds four USB 3.0 Type-A ports (3 external, 1 internal) to a PCI-Express-enabled computer system. It supports data rates up to 5 Gb/s and is backward compatible with USB 2.0 devices at 480 Mb/s.

Key features

• Adds 4 USB 3.0 ports: 3 external and 1 internal
• Data transfer rates up to 5 Gb/s (USB 3.0 mode) and 480 Mb/s (USB 2.0 mode)
• Complies with PCI Express Base Specification Revision 2.0
• Supports PCI Express x1 Lane interface with up to 5 Gb/s throughput
• Complies with USB 3.0 Revision 1.0 specification
• Backward compatible with USB 2.0 and PCI-Express 1.0
• Complies with xHCI specification Revision 1.0
• Supports Bulk Only Transfer (BOT) and USB Attached SCSI Protocol (UASP) modes
• Max. 5V/900mA power output per USB 3.0 port (with power supply connected)
• Fully Plug and Play compatible
• Supports standard and low-profile computer enclosures

Specifications

• Brand: InLine
• MPN: 76662C
• Interface: USB 3.2 Gen.1
• Connections external: 3x USB-A socket
• Connections internal: 1x USB-A socket / SATA power
• Slot: PCIe
• Low Profile: Yes
• RAID: No
• Transmission rate: 5Gb/s
• Chipset: VIA VL805
• System requirements: Computer with one available PCI Express x1 slot, Windows 10 / 8.x / 7 / Vista / XP 32-/64-Bit

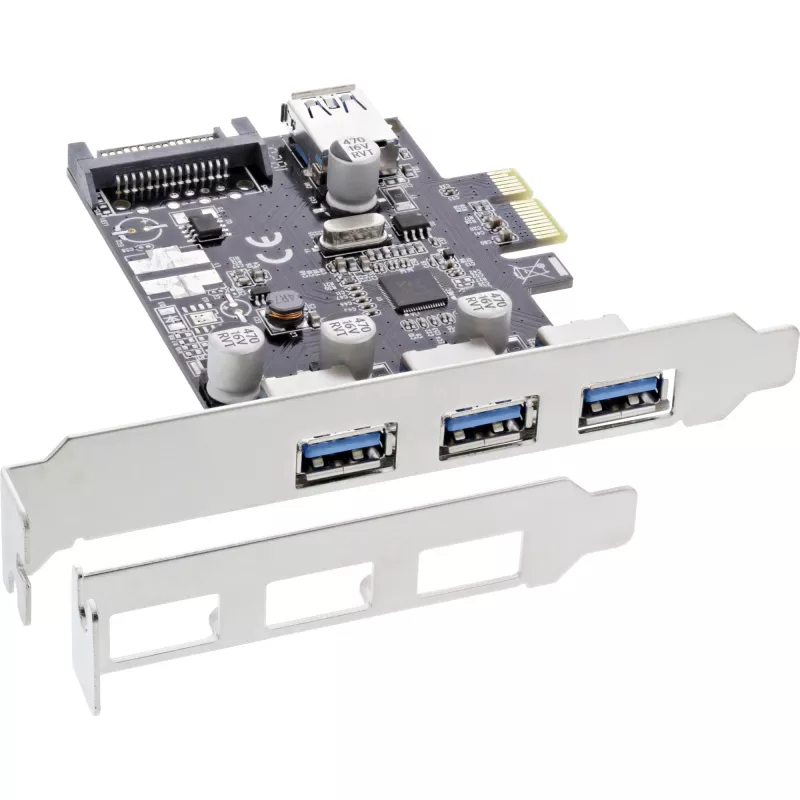

• Scope of delivery: USB 3.0 PCI-Express card, user manual, driver CD, Low-Profile slot bracket
