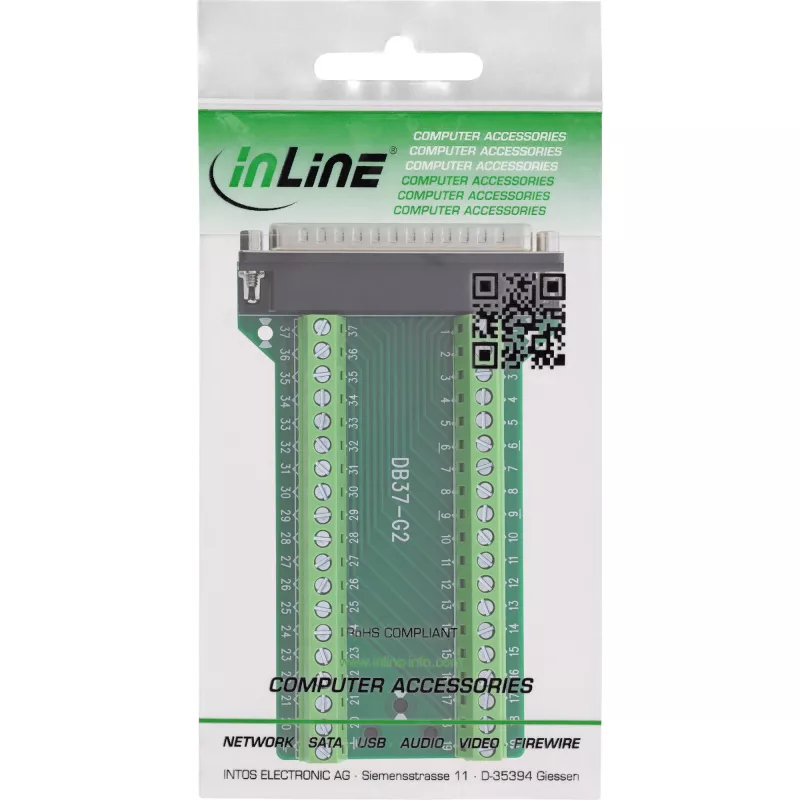

InLine 92502J Draadverbinder klemmenstrook / D-Sub 37 Zwart, Groen

Time savings during installation:Quick wiring via 37 side-mounted screw terminals for 18–26 AWG – tool-assisted with flat-blade screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock:The D-Sub 37 connector is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fastening with matching sockets – vibration-proof and durable.
Versatile use in industry:Ideal for signal distribution, test stations, control units, or temporary measurement systems with high connection density.
Side-mounted terminal strip: The connections are positioned next to each other – ideal for limited depth and many signal wires on one level.
High signal quality:An insulation resistance ≥ 10 MΩ at 300 V DC and a rated current of 0.8 A per pin ensure reliable signal transmission – even under continuous load.

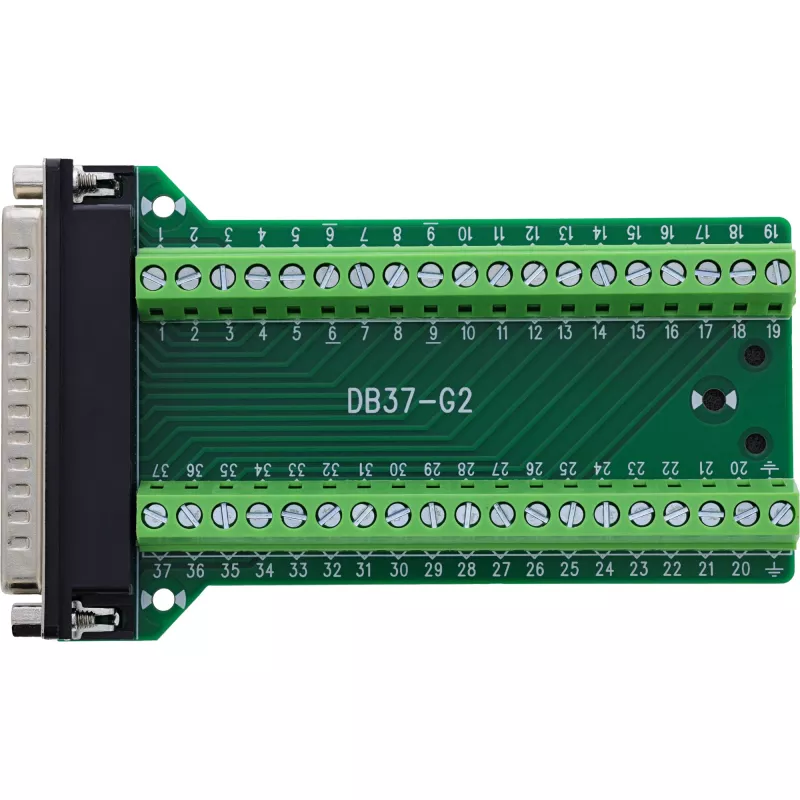

The InLine® D-Sub 37 terminal block with connector is designed for professional signal wiring in laboratory, service, or machine environments. The side-mounted screw terminals with pressure plate enable quick connection of single wires in the 18–26 AWG range without soldering. Operation is performed with a flat-blade screwdriver ≤ 2.5 mm.
The robust screw lock (UNC #4-40) ensures a secure connection to the opposite end. The wide 2-row layout is ideal for applications with many individual signals in a confined space – e.g., signal distributors, adapters, or measuring devices in control cabinets or test areas.

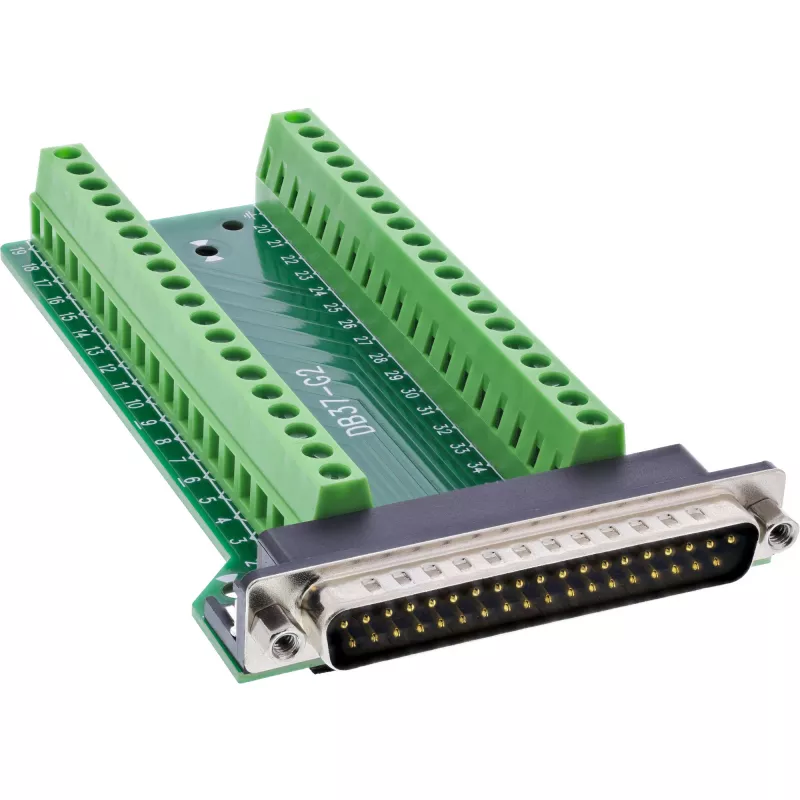

D-Sub 37 connector:2-row, with mounting thread for connector locking (UNC #4-40)
Connection technology:Screw terminal with pressure plate (side-mounted)
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.8 A per pin
Max. operating voltage: 70 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +70 °C
Insulation layer:EVA insulation on underside
Dimensions:approx. 115 × 70 × 18 mm (L × H × D)

InLine 92502J. Connector(s): Terminal block / D-Sub 37, Product colour: Black, Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 70 x 115 x 18 mm, Weight: 83 g, Width: 70 mm. Quantity per pack: 1 pc(s), Package volume: 100 cm³, Package type: Polybag. Country of origin: Taiwan
