InLine aansluitdoos Cat.6 LSA afgeschermd 69992

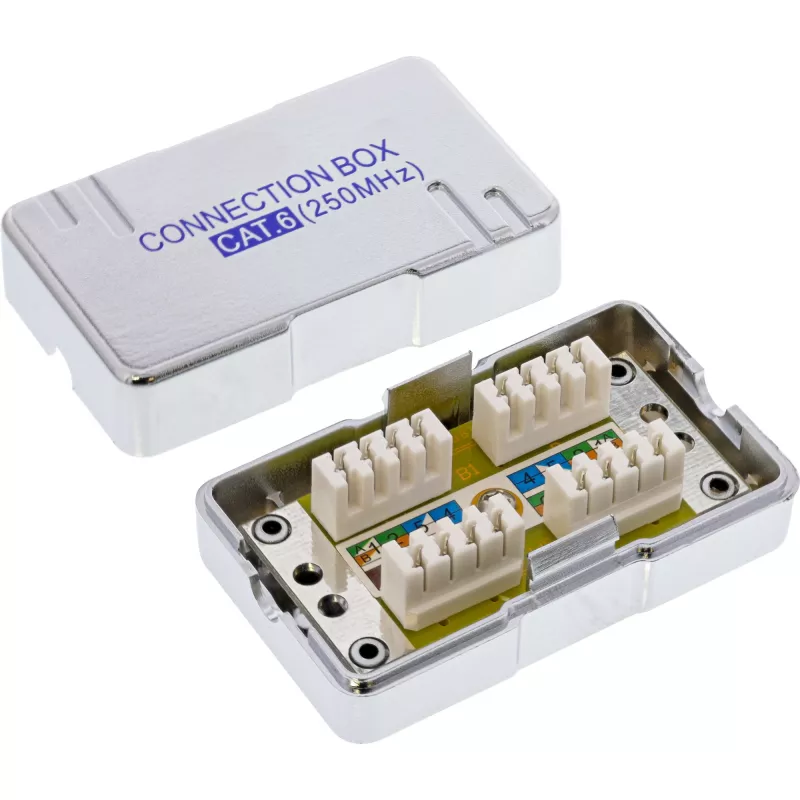

The InLine Connection Box Cat.6 LSA shielded (model 69992) is a compact module for joining two rigid LAN installation cables. Its shielded housing and internal LSA termination module provide a structured, low-interference connection for Cat.6 networks and support high-speed data transmission in structured cabling installations.

Advantages

The shielded metal housing reduces electromagnetic interference and improves signal integrity. Internal LSA technology ensures reliable, tool-assisted terminations without twisting or soldering, maintaining correct pair alignment and minimizing connection loss. The single-unit design offers easy access and a professional finish for wall or patch panel installations.

Suitable for

Key specifications

How to use

Prepare both rigid LAN installation cables by stripping the outer sheath and exposing the individual pairs according to Cat.6 colour coding. Insert each conductor into the corresponding slot in the internal LSA termination module and use an appropriate LSA punch-down tool to secure the conductors. Close the shielded housing and mount the connection box as required. Verify continuity and signal quality with suitable network test equipment after installation.

Recommendations

Use with properly rated Cat.6 rigid installation cable and an LSA punch-down tool. Avoid bending or stressing the cable at the termination point and verify connections with a cable tester to ensure correct pair alignment and performance.
