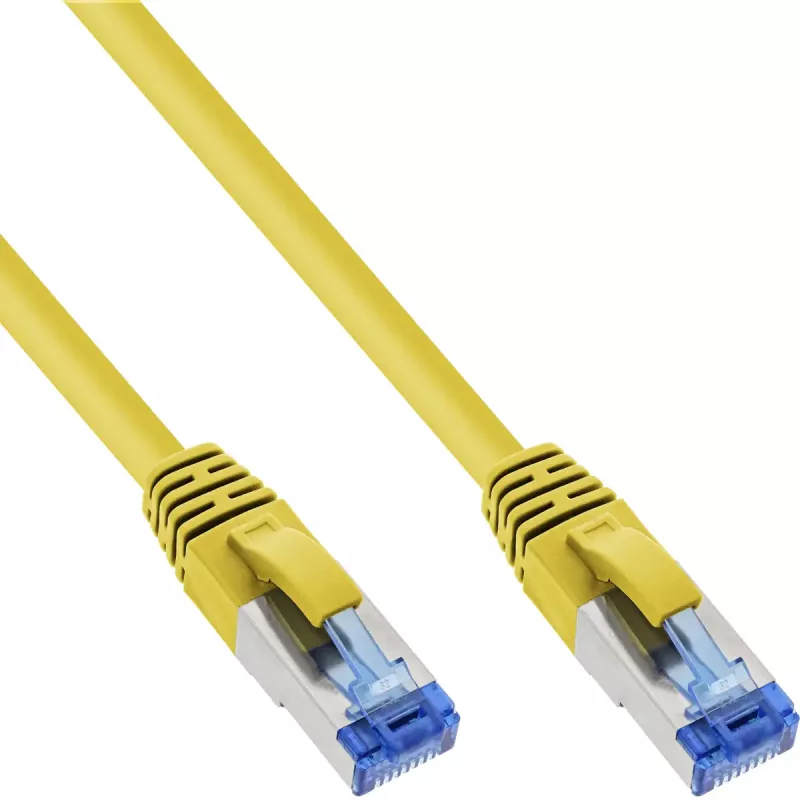

InLine B-76814Y Cat6A S/FTP (PiMF) halogeenvrije patchkabel, 1,5 m, geel, 50-pack

The InLine B-76814Y is a Cat6A S/FTP (PiMF) halogen-free patch cable in yellow, supplied as a 50-pack. It features a solid copper conductor construction and RJ45 connectors with gold-plated contacts.

Key features

• Cat6A S/FTP (PiMF) shielding
• Halogen-free LSZH jacket
• RJ45 connectors with 50µ" gold-plated contacts
• Suitable for Gigabit and 10 Gigabit applications
• Up to 500 MHz
• Includes enclosed test report
• PoE/PoE+/PoE++ support

Specifications

• Brand: InLine
• MPN: B-76814Y
• Product colour: Yellow
• Cable construction: S/FTP (PiMF) 4x2xAWG26/7, solid copper wire
• Overall braided shield with pair-wise foil shielding
• Jacket: Halogen-free (LSZH), compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
• Connector: RJ45 plug straight (both sides), blue-coloured for differentiation, with snap-in protection
• Assignment: 1:1
• Conductor material: CU (copper)
• Length: 1.50 m
• Outer diameter: 6.2 mm
• Wire diameter: AWG 26
• Operating temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Max. supported data transfer rate: 10 Gb/s
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90 W
• Assignment according to TIA/EIA 568B2.1
• Packaging: Bulk EcoPack (50 pieces in a PE bag)
