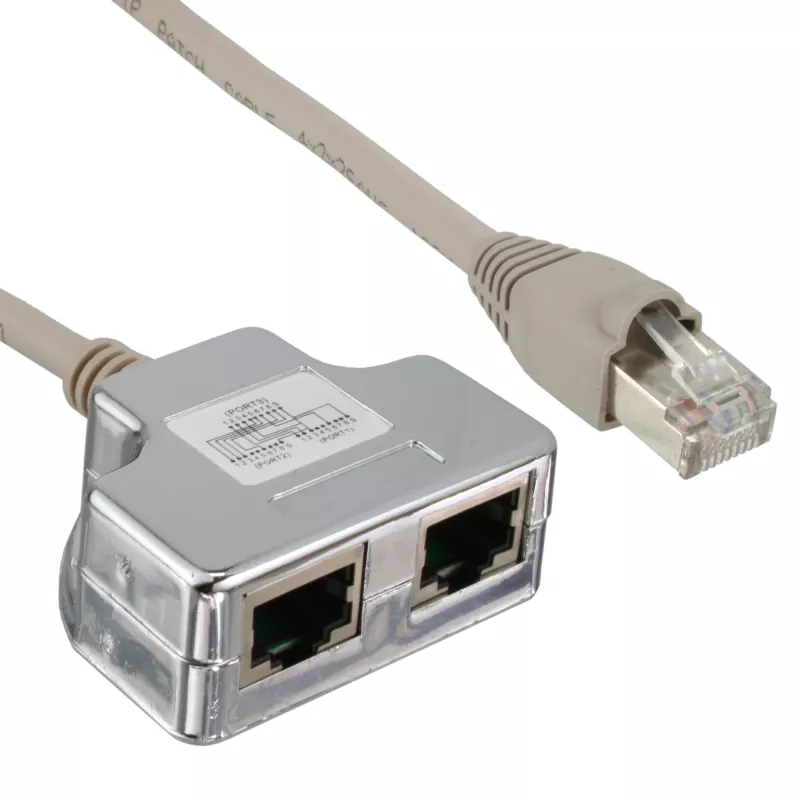

InLine Cat.5e splitter twee verschillende verbindingen via één RJ45 8P8C patchkabel

The InLine Cat.5e Splitter allows two 10/100 Mbit connections over a single 8-wire cable by using the two normally unused pairs. It is a port multiplier that must be used in pairs, one at each end of the cable. The splitter features a metallised plastic casing and a cable length of approximately 15 cm.

Key features

• Enables two 10/100 Mbit connections on one LAN line
• Uses the two normally unused pairs of conductors
• Must be used in pairs, one at each end of the cable
• 1x RJ45 male (on cable) to 2x RJ45 female
• Complies with Cat.5e specifications
• NOT shielded (UTP)
• Metallised plastic casing
• Screw holes for wall mounting
• Colour: Silver

Specifications

• Brand: InLine
• MPN: 69995
• Type: Cat.5e
• Side A: RJ45 female
• Side B: RJ45 plug
• Signal: Network

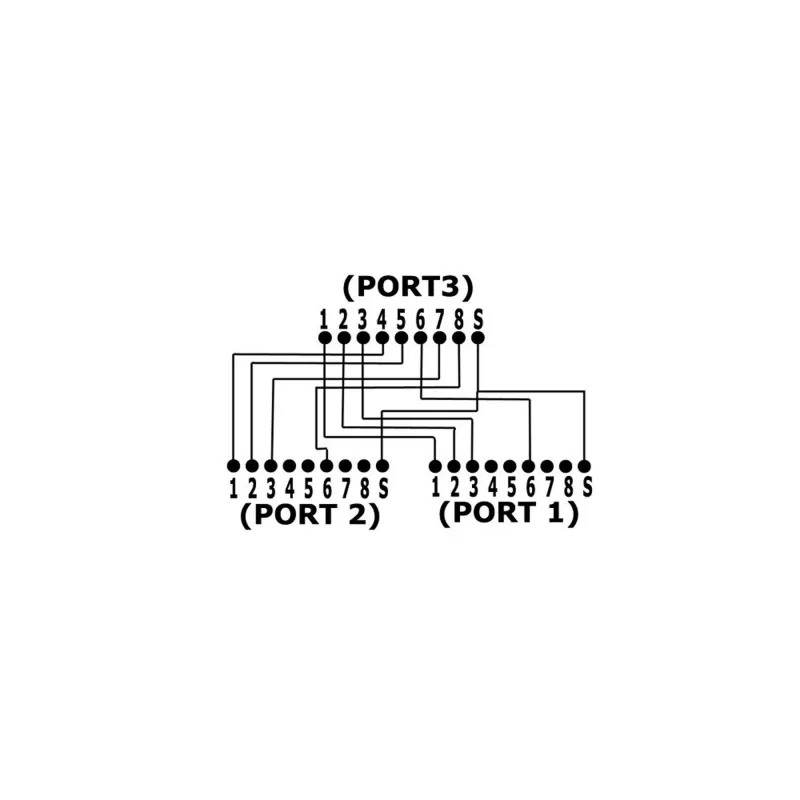

• Pinout: 1-1-0, 2-2-0, 3-3-0, 4-0-1, 5-0-2, 6-6-0, 7-0-3, 8-0-6
• Cable length: 0.15 m
• Variant: Plastic housing metallized
• Country of origin: Taiwan
